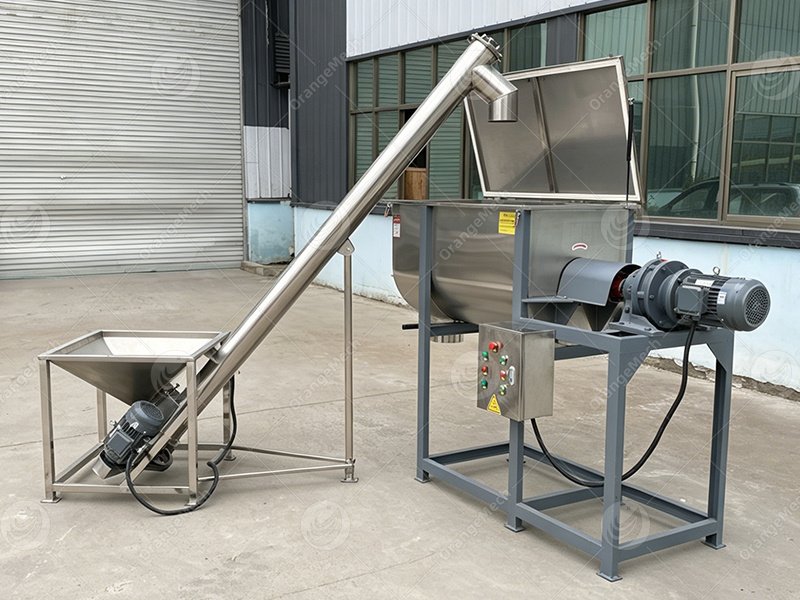

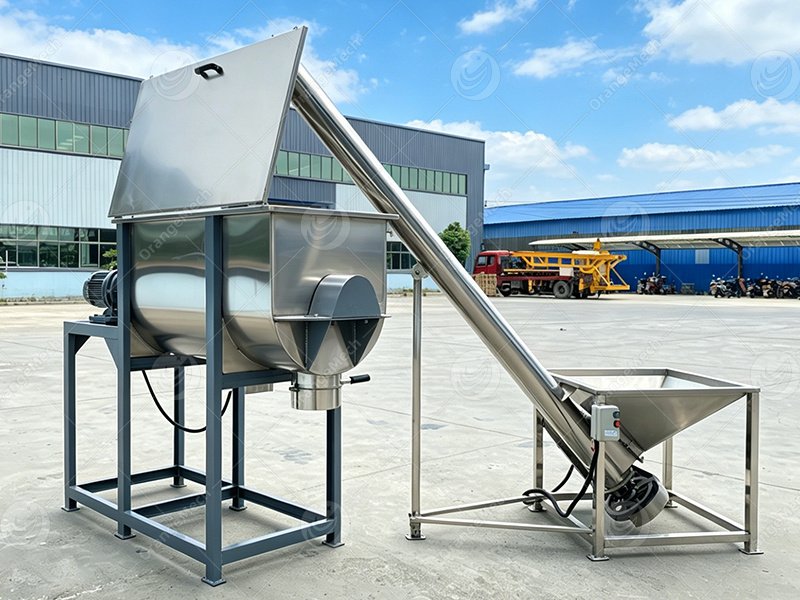

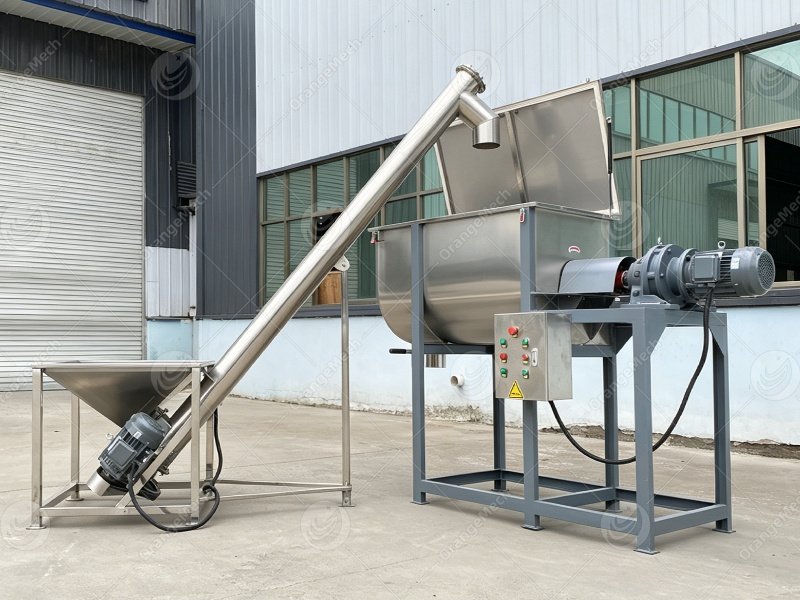

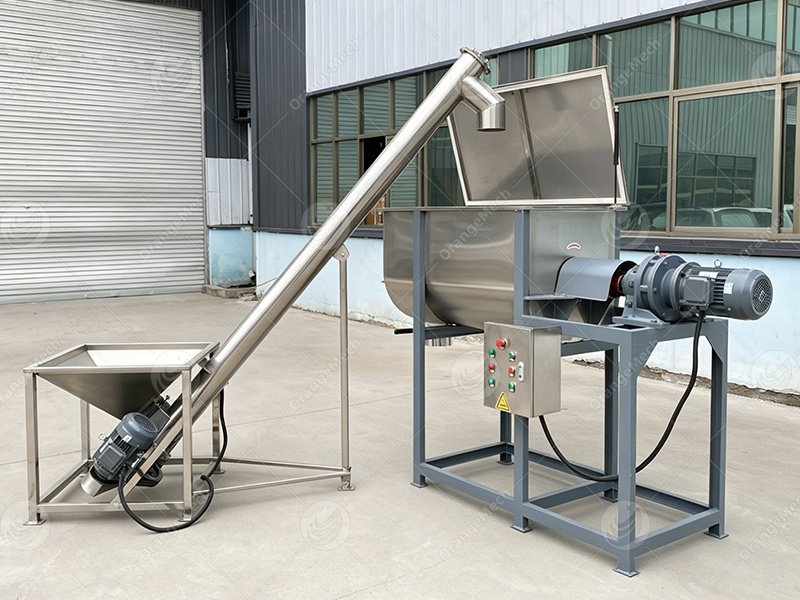

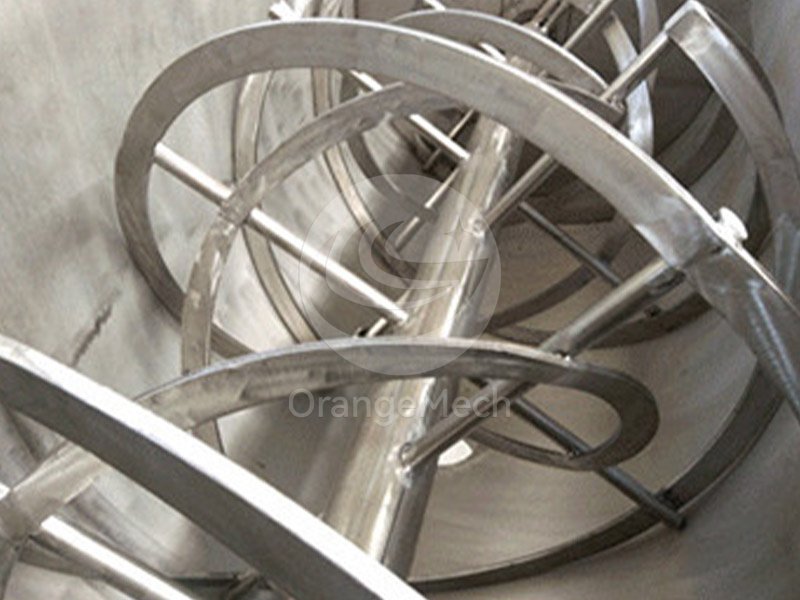

The horizontal mixer is used to mix materials by rotating the spiral belt or blade in the cylinder. Therefore, correct installation of the horizontal mixer is very important, which will directly affect whether there are problems such as tilt of the mixing shaft and shaking of the body and then affect the mixing effect, service life, and even safety of the machine. Here you will find the specialized installation procedures of the horizontal mixer manufacturers.
一．Preparations before installation
1. Site selection: Firstly, the place for placing the machine shall be selected, and the ground in the area shall be flat (leveled or supplemented if uneven); the space for operation and maintenance shall be reserved, and the convenience of power connection shall be ensured (if cleaning and dust removal are required, the water and air connection positions shall be found). According to different requirements, the space for placing the feeder or other front and rear machines shall be reserved, and the site shall be cleaned before placing.
2. Mark the positions as per the equipment anchor feet and drill anchor holes. Please note that different models feature distinct horizontal mixer capacities, resulting in differing overall dimensions. Therefore, confirm the machine size of corresponding models when pre-marking the anchor position;
3. Check all parts and accessories of the machine for completeness and deformation.
4. Prepare tools required in the installation process, such as various types of wrench, tape measures, level gauges, screwdrivers, etc.
二．Installation steps of horizontal mixer
Once everything is ready, the following describes the steps for formal installation:
1. Use forklifts, aerial cranes, and other equipment to send the machine to the preset position, align the machine body, and align with the foundation holes.
2. Use a level gauge to level the machine from front to back and from left to right, and then thread and tighten the foundation screws to prevent the machine body from shaking.

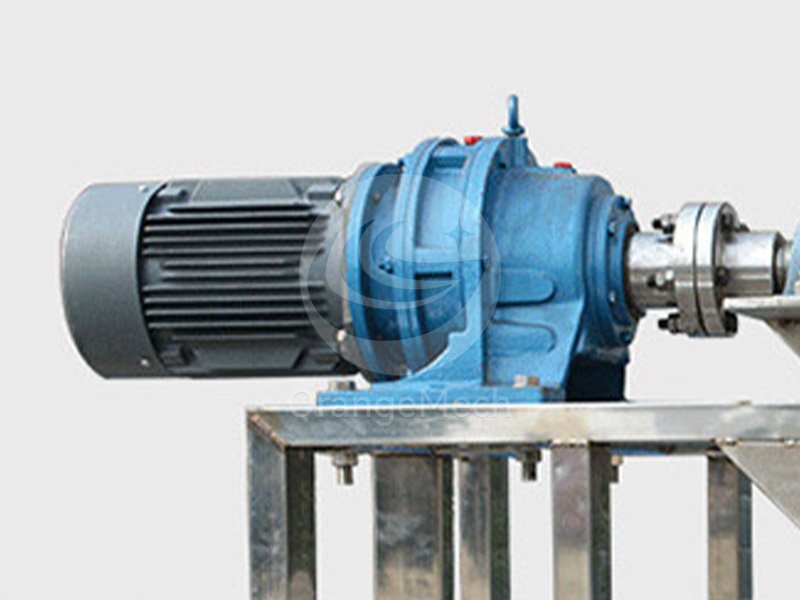

3. Install the motor and reducer (note that the coupling must be aligned), and connect the reducer with the flange of the mixing shaft.

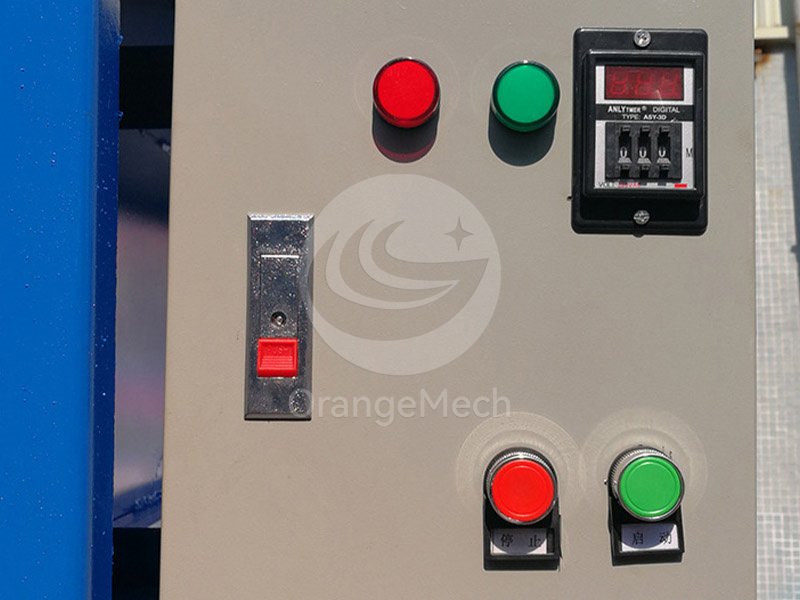

4. Assemble the electronic control image and wire according to the machine instructions, and pay attention to ensuring voltage matching.
5. Refill lubricating oil: add lubricating oil to the reducer (add lubricating oil to the middle of the oil mirror), and add grease to the bearing seat.
6. Rotate the mixing shaft by hand under a power-off state to see whether it can rotate smoothly without jamming or abnormal sound.
7. Carry out an idle running test on the machine after power-on to check whether the mixing direction and speed are correct.
8. Physical test machine: Check the material mixing effect, whether there is abnormal sound and shake during the mixing process, and whether the discharging is normal.
三．Common installation problems and solutions
When the machine is tested after installation, the following problems may occur sometimes. Don’t worry if encountered. Orange Mech provides you with professional solutions:
1. The machine body shakes and makes abnormal noise after startup
Solution: It indicates that the whole machine is installed unevenly or the frame’s body is loose. First, measure the front, back, left, and right sides of the machine with a level gauge. Flatten the lower position with an iron sheet, and ensure that the four anchors are stressed and cannot be suspended; then check the frame for loose screws and cracked welds.
2. Large vibration and abnormal sound of motor and reducer during operation
Solution: The motor and the reducer are not aligned when connected through the coupling and need to be aligned again. Note that the gap around the two coupling halves should be uniform and the width should be the same, and then rotate it by hand to see whether it is still stuck and whether there is abnormal noise.
3. Stirring shaft rotates in wrong direction after startup
Solution: It indicates that the three-phase electric phase sequence is reversed during wiring. Exchange the wiring position of the live wire.
四．Precautions for use of horizontal mixer
Upon successful installation, the following describes the precautions to be taken when using the machine:
1. Check and clean the mixing drum before and after each use to prevent the residual hard objects in the drum from damaging the machine. Check and clean the outlet to avoid blocking.
2. When materials with a large difference in dry humidity and particle size need to be mixed, do not feed too many materials at one time, which are easy to mix unevenly and can be continuously fed in batches.
3. The machine can be used separately according to the horizontal mixer’s purpose, such as one machine dedicated to mixing food powder, one machine dedicated to mixing building powder, etc., which makes it not easy to pollute the materials.
4. Excessive feeding is prohibited: although the horizontal mixer capacity of different models is different, the feeding shall not exceed 80% of the tank volume during use, because the motor load is too high due to overfilling, which will affect the service life of the motor and even burn the motor.
5. Do not touch the machine after it is started, and do not put hands into the machine during operation.

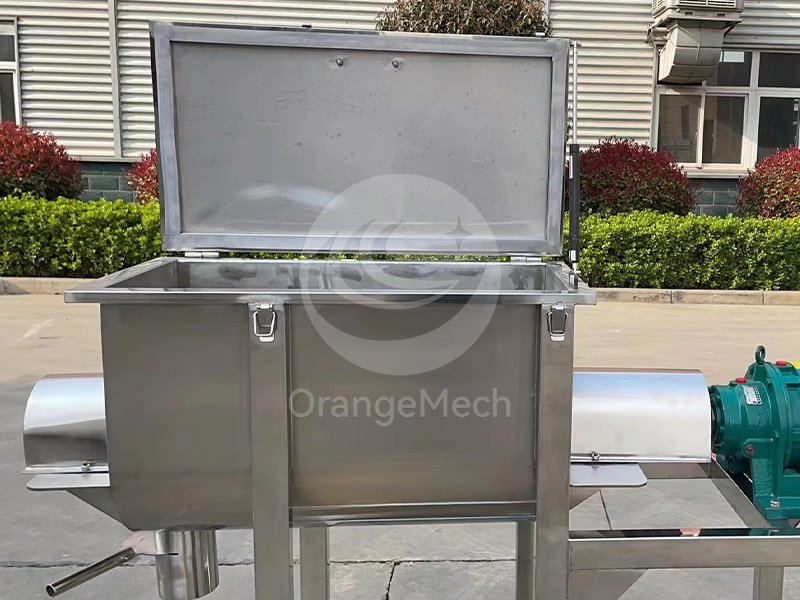

6. Do not open the cylinder cover during powder mixing to prevent dust pollution.
7. In case of abnormal shaking and noise during the operation of the machine, immediately shut down the machine and cut off the power for troubleshooting.
8. Non-professional technicians are prohibited from changing the machine circuit and wiring without permission.
五．Routine maintenance and service
1. Regularly check whether the lubricating oil and bearing grease of the reduction gearbox are sufficient, as operation in lack of oil is easy to wear, heat, or even get stuck.
2. Regularly check whether the coupling is cracked or aged, and replace it if any problem occurs.
3. Since the horizontal mixer’s purpose is wide, such as for food powder, building material powder, feed, etc., it must be cleaned after each use.
4. When the machine is not used for a long time, please cover it for dust prevention after cleaning it.
七、Summary
Through the above detailed introduction, we believe that you have understood the installation and maintenance process of the horizontal powder mixer. If you have any questions about the horizontal powder mixer, please click here for answers. Horizontal mixer manufacturers, Orange Mech, face the whole challenge and can provide you with the best machine and professional technology.
