OrangeMech’s commercial fruit juice making machine operates via screw-propelled extrusion. After raw materials are fed into the hopper, the machine continuously squeezes berries, pomes and vegetables. Juice flows through the sieve while pomace is discharged from the gaps to complete automatic juicing and residue removal. By adjusting the pressure regulating head, users can control the moisture level of pomace for continuous juice extraction. Suitable models can be selected according to your raw materials and production capacity.
Product advantages
Versatile Processing Capabilities
This commercial fruit juice making machine supports fruit and vegetable juicing, vegetable dewatering and herbal juice extraction. It is compatible with multiple raw materials to meet diverse factory production requirements.
Food-Grade Stainless Steel Construction
All material contacting parts are made of SUS304 stainless steel. Resistant to fruit and vegetable juice corrosion, they are easy to disassemble and rinse, complying with food processing hygiene standards.
High-Power Copper-Core Motor
Equipped with a copper‑wound motor, it delivers strong pressing force and fast juicing speed. Fitted with a stainless‑steel waterproof protective cover to enhance the operational safety of this commercial vegetable juicer machine.
Easy Cleaning and Maintenance
Internal pressing assemblies and sieve components are easy to disassemble. It leaves little pomace fiber residue, saving time and labor for equipment inspection, cleaning and maintenance.
Compatible with Production Line
It can work standalone or be connected with washing machines, pulpers and other equipment to integrate into complete fruit juice production lines.
Product parameter
| Item | Technical Parameter |
| Processing Capacity | 100 500KG per hour |
| Screw Diameter | Φ128MM |
| Operating Speed | Screw: 400R/MIN, Crusher: 1000R/MIN |
| Main Body Material | SUS304 stainless steel (except transmission part) |
| Motor Power | Juicer 3KW, Crusher 1.5KW, total installed capacity ≥4.5KW |
| Equipment Weight | Approx. 180KG |
| Overall Dimensions | 1160*380*1240MM |
| Screen Mesh Size | Φ0.6 Φ1.2MM |
| Safety Features | All motors fitted with stainless steel covers |
Pomace Discharge Outlet
Exquisite workmanship and elegant appearance; uniform grinding enables smoother pomace discharge.

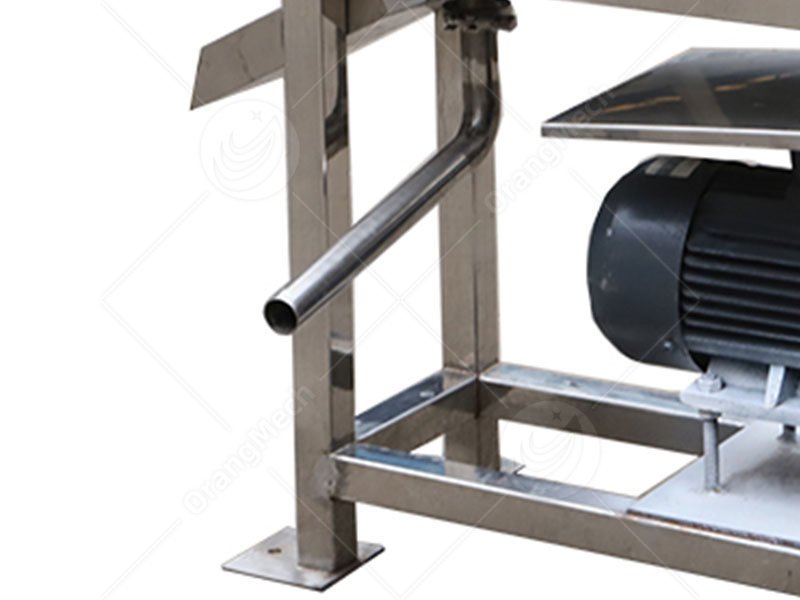

High Efficiency
This commercial fruit juice making machine features high juice yield, safe performance and high efficiency, saving your time and labor.

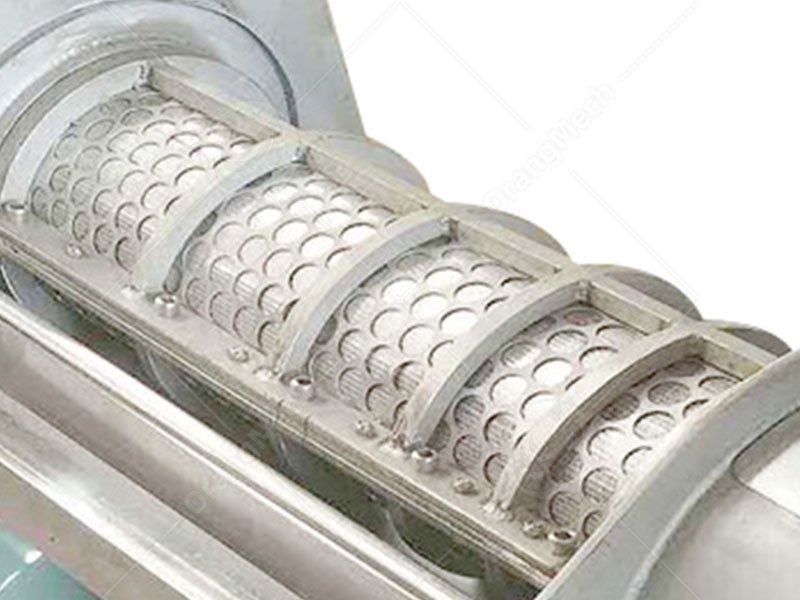

Screw Auger
Equipped with special wing‑nuts for extremely easy disassembly and cleaning.

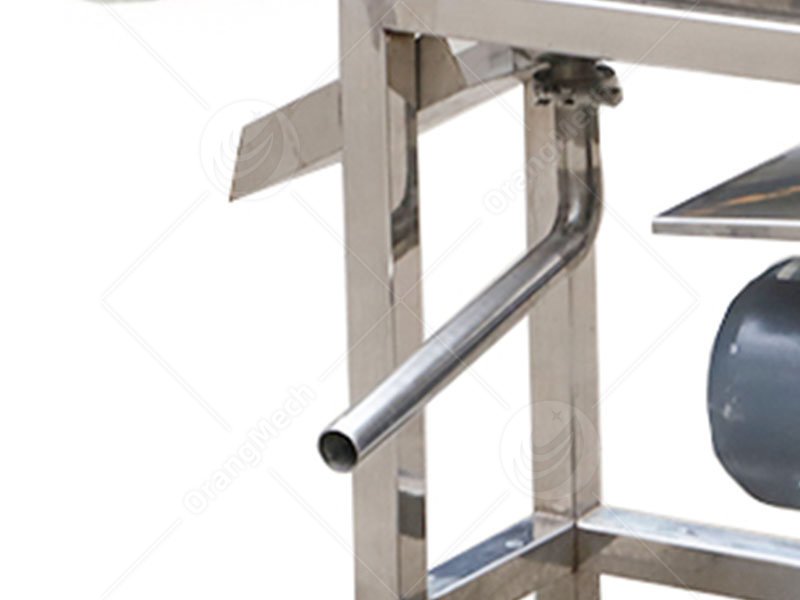

Easy‑to‑Clean
Little pomace‑fiber residue for convenient cleaning.
Product application

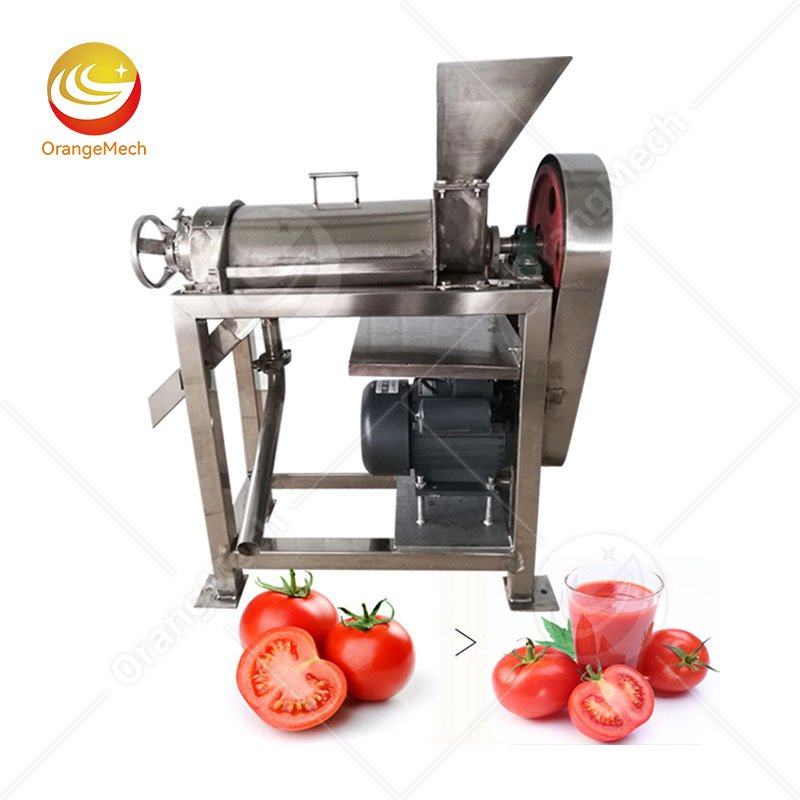

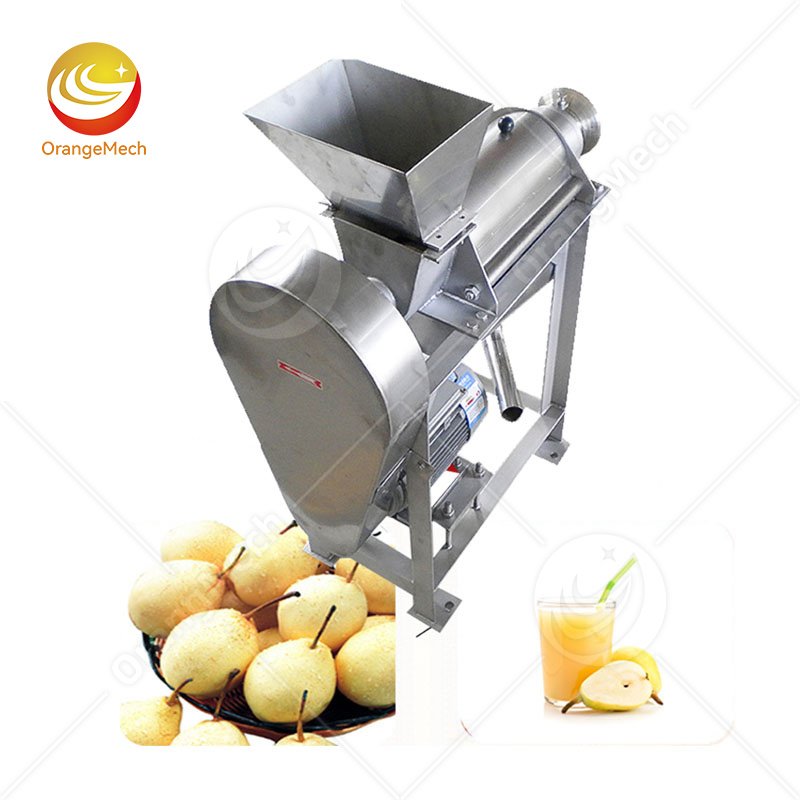

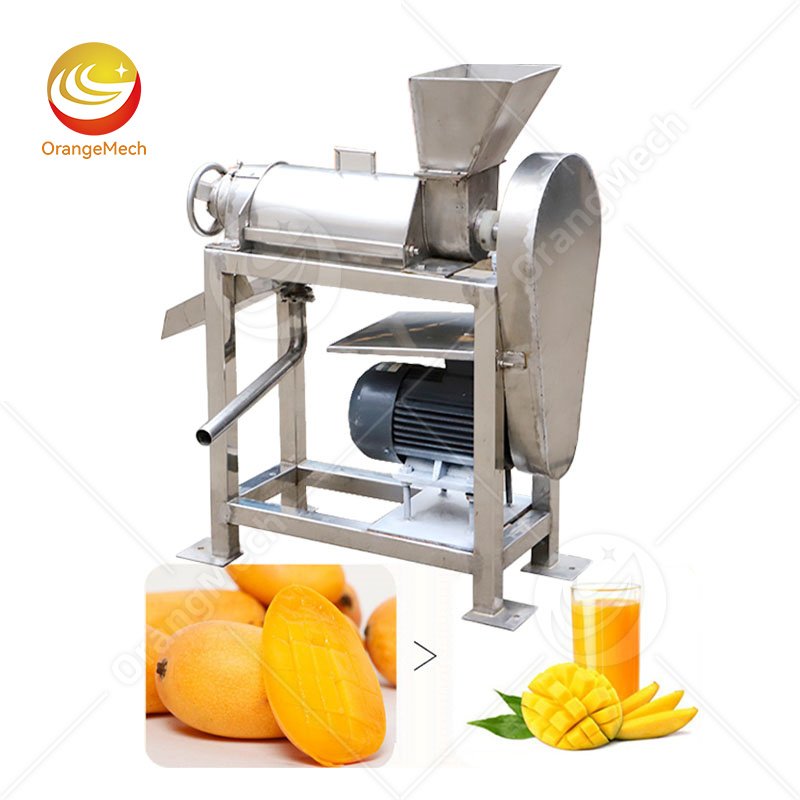

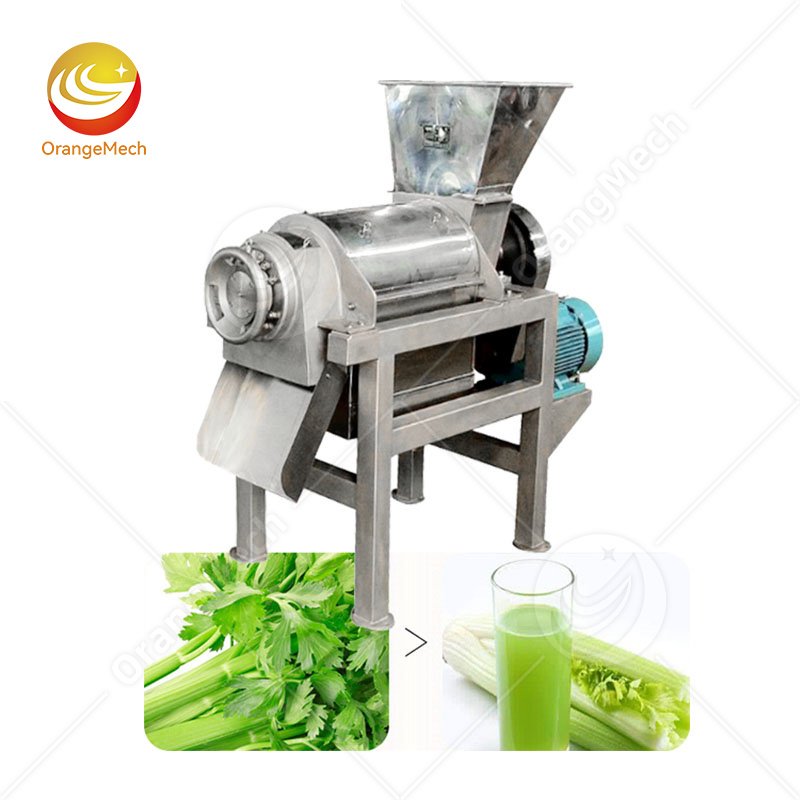

◉Fruit and Vegetable Processing Plants:
This commercial fruit juice making machine is used for pressing various fresh fruits such as apples, pears, strawberries and tomatoes. It completes juicing and pomace‑discharging processes to produce original fruit‑and‑vegetable juice. Suitable for small‑and‑medium‑sized food and beverage manufacturers, it can run standalone or be integrated into fruit juice production lines.
◉ Fruit and Vegetable Deep-Processing Enterprises:
As commercial pressing equipment, this commercial vegetable juicer machine can process vegetables including ginger, garlic and celery to produce vegetable juice and herbal extracts. The resulting semi‑finished juice can be connected to subsequent filtering, sanitizing and filling procedures.
◉ Agricultural Product Processing Bases:
It is suitable for centralized pressing of fresh fruits at origin. It can process seasonal apples, berries and vegetables in large batches. The pressed juice can be locally processed and sold, while pomace can be reused to add value to agricultural products.
◉ Individual Businesses & Workshops:
The machine features low investment cost, small footprint and simple operation. It is ideal for small‑and‑medium‑sized workshops and individual processors for fruit‑and‑vegetable juicing.
Tomaco Juice
Mango Juice
Pear Juice
Celery Juice
A1: OrangeMech’s commercial fruit juice making machine is compatible with fruits such as apples, pears, strawberries, oranges and tomatoes. It also supports vegetables like ginger, garlic and celery, as well as herbal raw materials for juicing, dewatering and herbal juice extraction, featuring great versatility.
A2: Yes, this commercial vegetable juicer machine comes with a manual pressure regulating head. Rotate the handwheel to adjust the gaps to change the moisture level of pomace to suit processing requirements of different materials.
A3: Yes, this commercial fruit juice making machine can operate stand alone. It can also be connected with fruit and vegetable washers, pulpers and sanitizing equipment to be integrated into a full fruit juice processing line.
