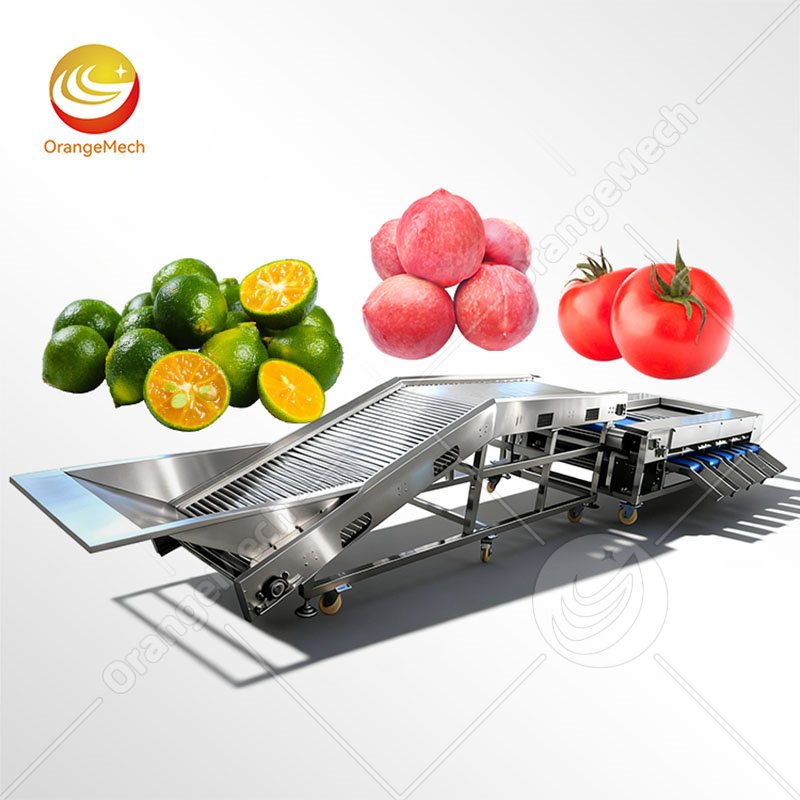

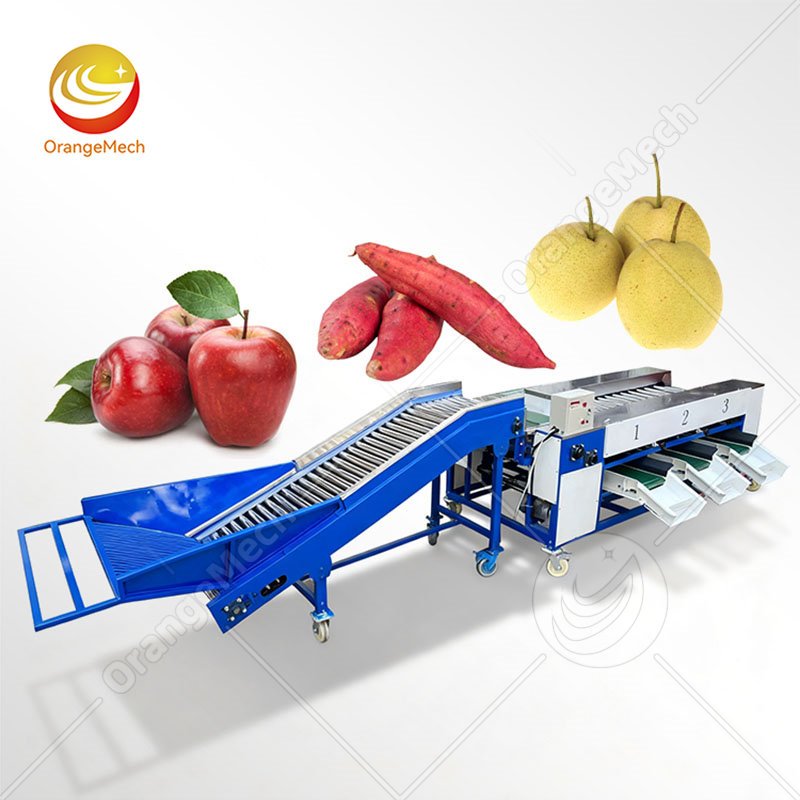

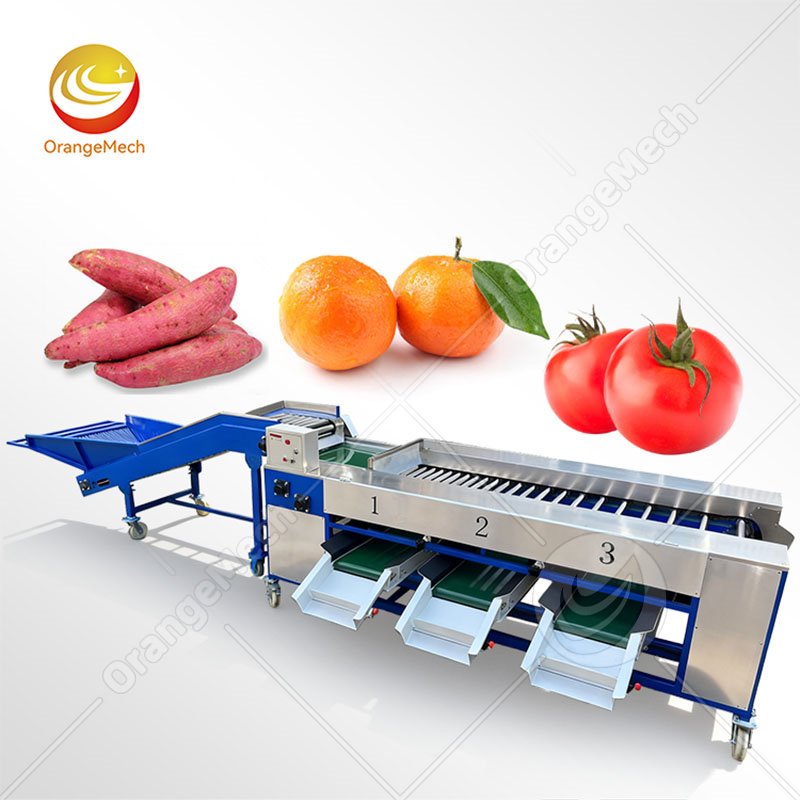

OrangeMech’s Roller Type Sorting Machine is suitable for grading the size of fruits and vegetables. Fruits and vegetables are sent to the roller conveying group by the lifting mechanism to move forward, the roller gap is gradually expanded, small fruits fall into the aggregate area by gravity, and large fruits continue to be conveyed until they match the gap to complete classification. Can support large-scale continuous production. If you want to reduce costs and increase efficiency in fruit and vegetable sorting, OrangeMech provides you with a complete set of customized sorting schemes.
Product advantages
Simple Operation
The equipment control panel is marked in English, with simple operation logic and low threshold. Zero-based employees can operate independently after short training, saving personnel training costs.
Pre-cleaning Brush Section
The lifting and conveying section is equipped with a brush cleaning mechanism to brush off soil stains on the surface of fruits and vegetables when feeding, so as to avoid misclassification caused by impurities and ensure grading accuracy.
High-Capacity Continuous Sorting
Equipped with high-power drive motor, the sorting output can reach 3-5 tons per hour, which supports continuous work all day. As a high-performance fruit sizing machine, it can meet the needs of large-scale pretreatment in orchards and processing plants.
Fruit-Protecting Cushioning Design
Cushion pads are fitted in the blanking zone to absorb impact when produce drops and reduce skin bruising. The discharge outlet adopts rotatable baffles for fast bin replacement once bins are full.
Variable Frequency Speed Control
OrangeMech’s Roller type weight sorting machine supports variable frequency speed regulation, and can flexibly adjust the conveying speed according to the material characteristics and capacity requirements of different fruits and vegetables, so as to obtain the best sorting effect.
Easy Mobility
Universal wheels are installed at the bottom of the whole machine, which can move freely in the workshop and plantation, without fixed anchor installation, and the site can be adjusted and placed flexibly.
Product parameter
| Machine Name | Roller Type Sorting Machine | |
| Sorting Level | 4 | 5 |
| Voltage | 220V/380V | 220V/380V |
| Power | 1.1KW | 1.85KW |
| Sorting Output | 3T | 3～5T |
| Overall Dimensions | 6380*1600*1000(mm) | 7590*1435*1550(mm) |
| Weight | 850KG | 950KG |
Compact, Integrated Design
OrangeMech’s Roller Type Sorting Machine integrates conveying, sorting, and collection functions in one unit. Its compact design saves space and makes it easy to integrate into existing production lines.

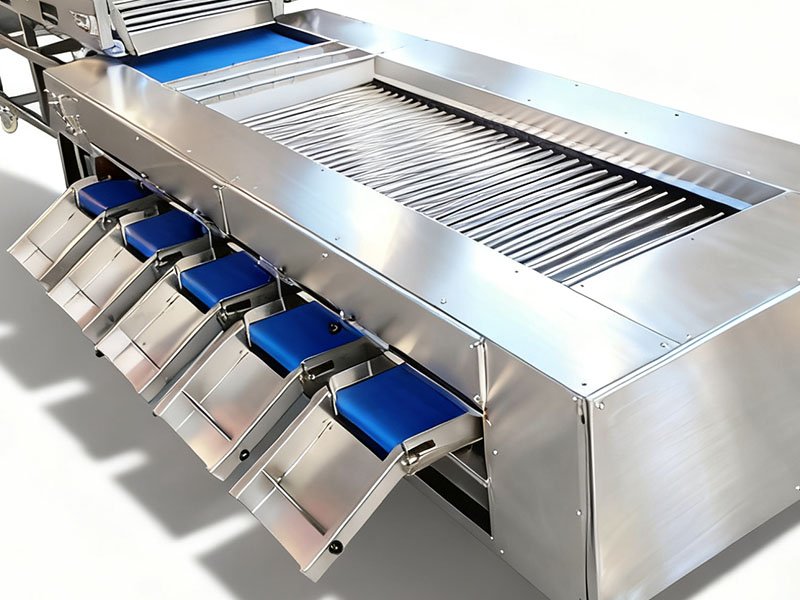

Corrosion-resistant and durable
The stainless steel main frame is resistant to fruit acid and humid environment, ensuring long-term stable operation under harsh working conditions.

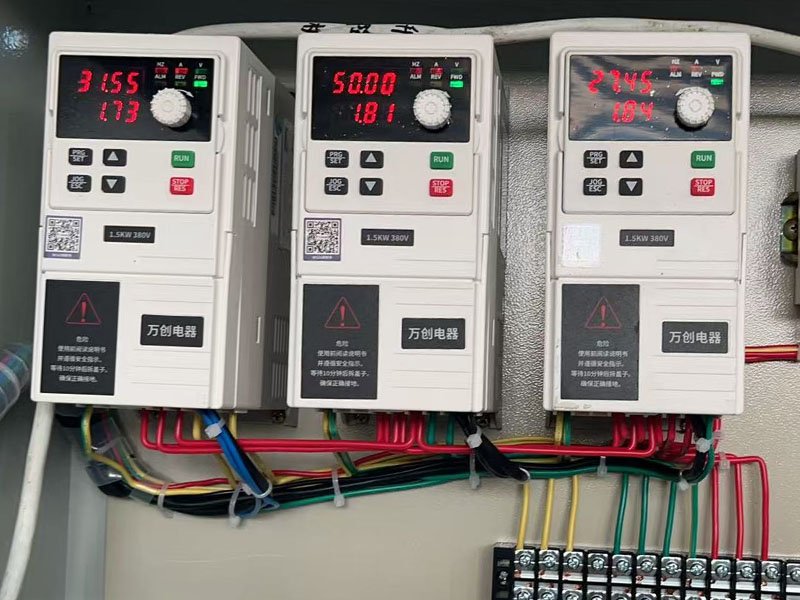

Powerful Variable-Speed Drive System
High-power motor supports continuous high-speed operation. The variable speed control function can optimize the sorting effect for different agricultural products and output requirements.

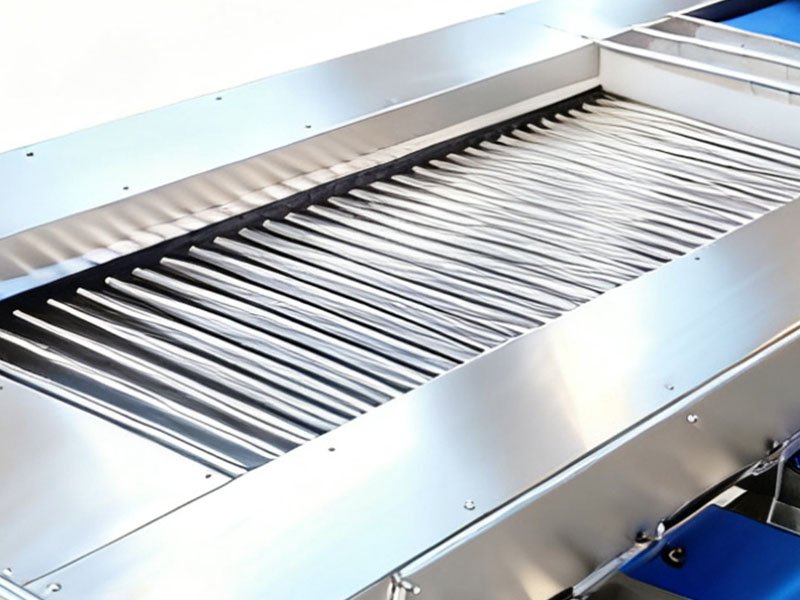

Precision Roller Grading
Accurate classification is achieved by adjusting the distance between rollers. The mechanism is simple and reliable, and easy to clean and maintain.

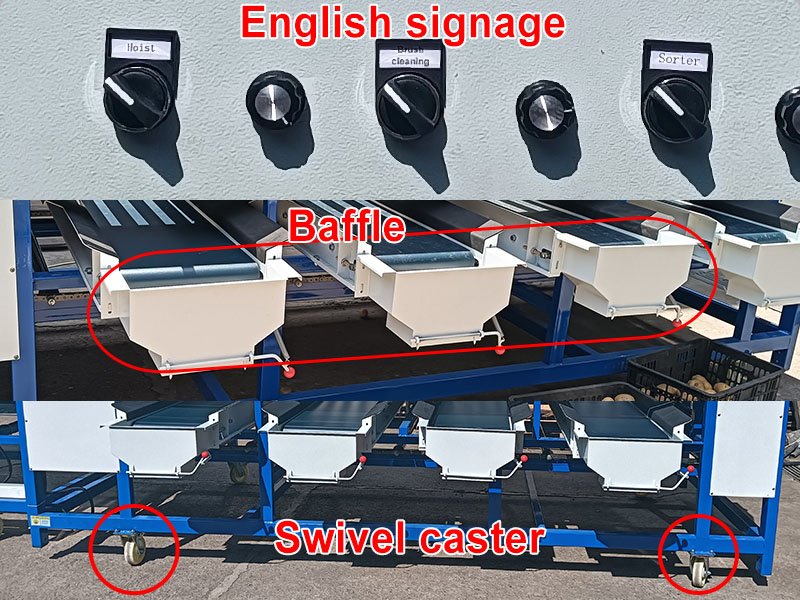

User-Friendly Operation
Equipped with an intuitive control panel, quick change discharge baffles and locked casters, it enables easy movement and positioning.

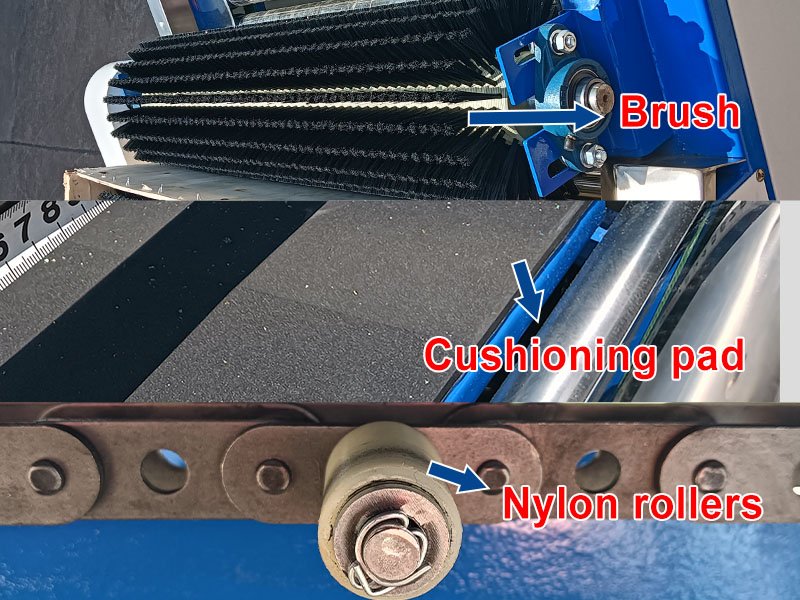

Comprehensive Product Protection
It adopts a brush‑equipped lifting belt, blanking‑point buffer structure and wear‑resistant nylon rollers to minimize product bruising.
Broad Material Adaptability
OrangeMech’s Roller type weight sorting machine is widely applicable to a variety of common agricultural products, including blueberries, citrus fruits, carrots, and potatoes.
Product application
◉ Large‑scale planting bases:
Size grading for round & oval produce including potato, sweet potato, onion, cherry tomato, citrus, passion fruit, lychee and more.
◉ Fruit‑vegetable processing centers:
Working as a high‑performance fruit sizing machine, it sorts incoming raw materials, rejects off‑size items and unifies material specifications.
◉ Fruit and vegetable pretreatment:
It can be connected with bubble washing machines, air dryers and waxing machines to form complete processing lines for fresh fruit pretreatment and pre grading before dried fruit production.
A1: The skin of the fruits and vegetables will not be damaged.Each discharge station is equipped with a cushioning pad to reduce the impact force when the produce drops; controlling the feed rate appropriately can further minimize the risk of damage.
A2: No fixed installation is required.Equipped with universal casters for easy relocation, the machine only needs to be placed on flat and solid ground without anchor fixing.
A3: This fruit sizing machine can connect with bubble washing machine, air dryer and waxing machine. If you need package processing for fruits and vegetables, it can also work with a pillow type packaging machine.
