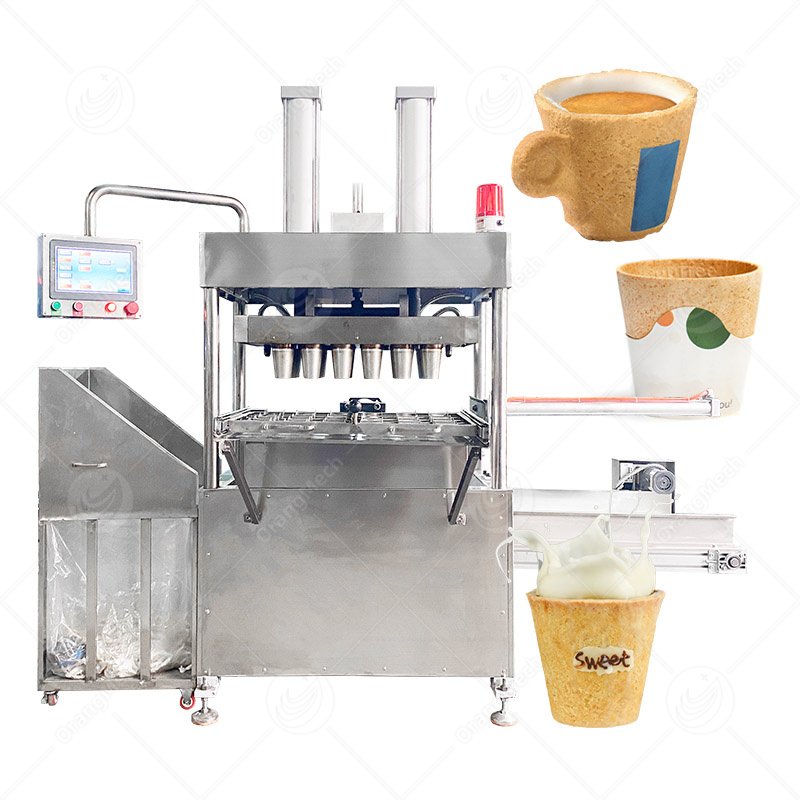

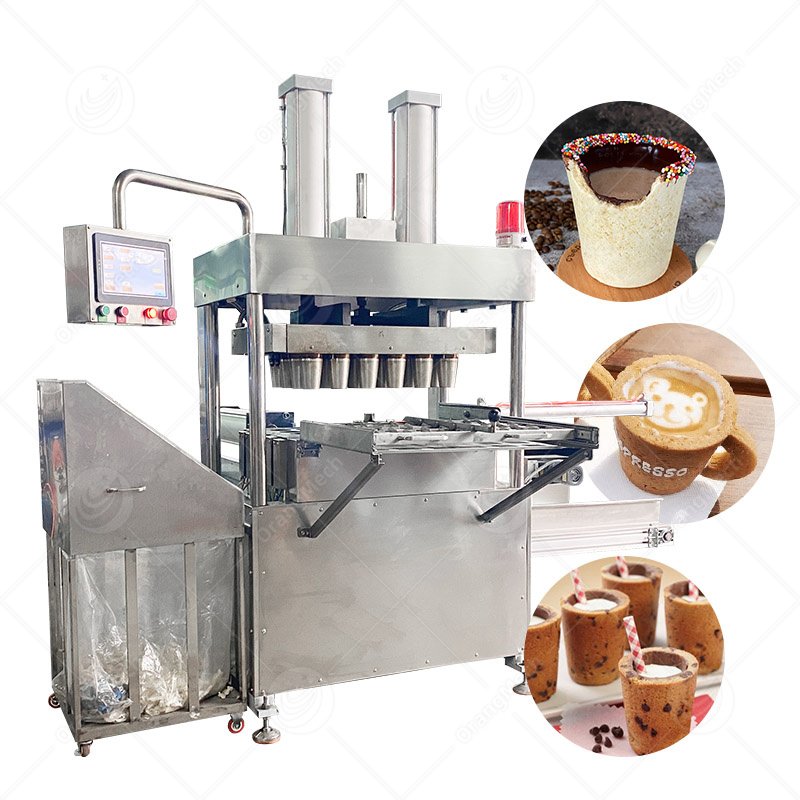

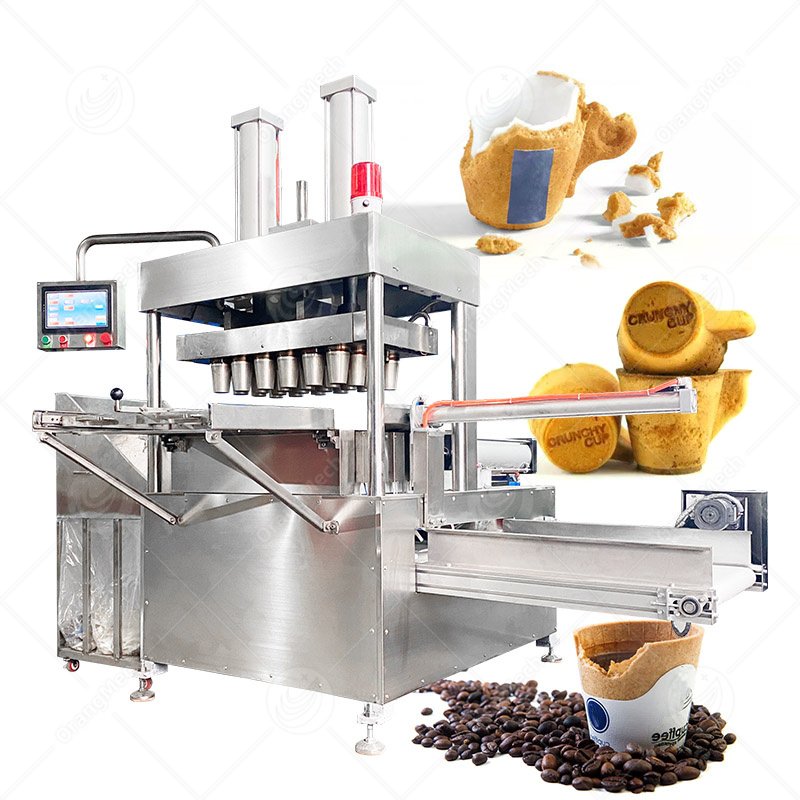

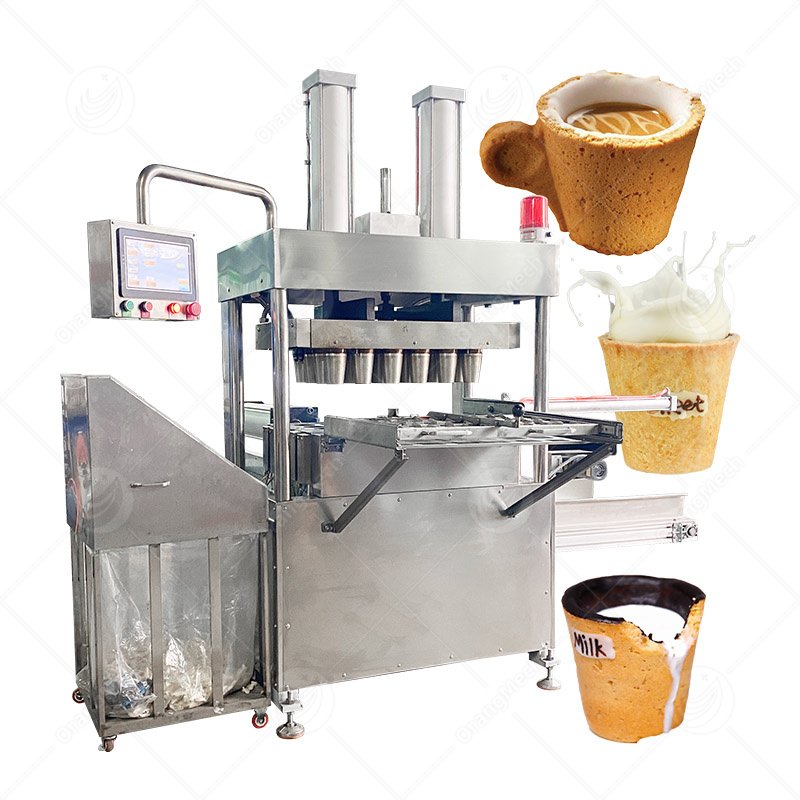

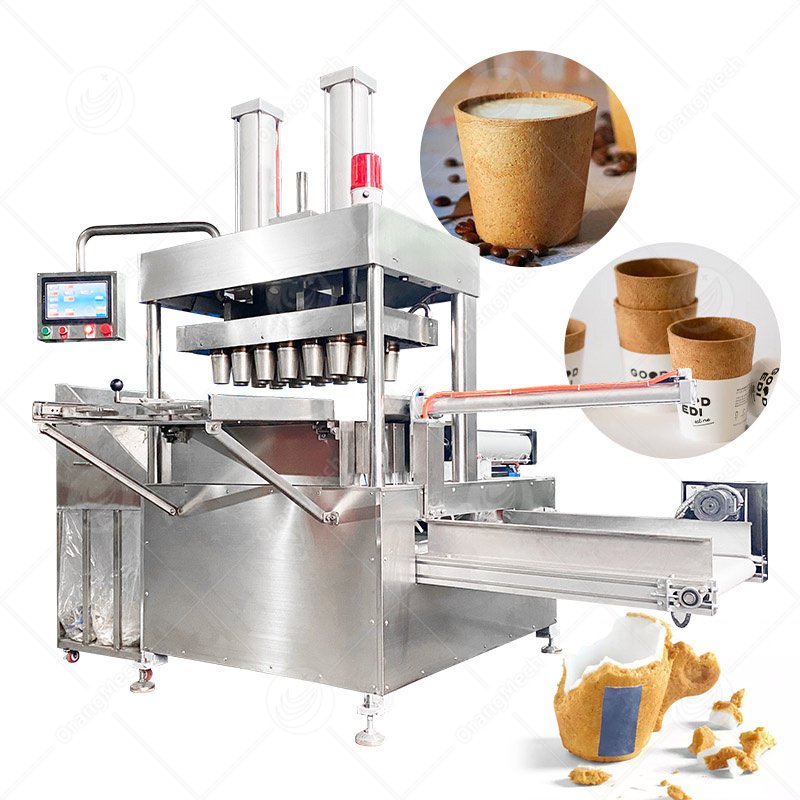

It should not be too complicated to make the production line achieve a stable product effect. Orange Mech’s Edible Tea Cup Making Machine simplifies the whole process into a smooth, automatic workflow. First, mix flour, purified water, edible oil, and the ingredients you choose to make a smooth and easy-to-operate dough. Next, the dough is divided into exact portions of equal weight and put into a molding die. After being placed in the mold, the machine will perform several pressing cycles to exhaust air and make the dough compact. High-temperature baking is started immediately so that the dough is fully cooked, and then the edge trimming is automatically completed. Finally, a fully formed, crisp, and edible cup can be packaged directly without manual trimming.
Product advantages
Intelligent PLC Control
The edible tea cup making machine touch screen supports English and Chinese, and the emergency stop button is within reach. The screen can be moved to meet the needs of operators. In manual mode, the next operation cursor will be displayed, and the real-time status information of each component will help the maintenance personnel locate the fault quickly.
Compact Footprint
Specially designed for harsh factory environments, the frame is made of stainless steel, which is corrosion-resistant and easy to clean, and the machine can work continuously for a long time. During continuous operation, even under high pressure, it can remain stable without deformation or shaking. The edible tea cups making machine has a size of 1200
*1600*2200 mm and a net weight of 790 kg.
Uniform Baking
The upper and lower molds are heated separately and set independently. Under the electric heating of 21 kW, the baking time is about 2.5 to 5 minutes, and after the cycle, an alarm will sound (the volume can be adjusted, or only a flashing prompt will be given). This edible tea cup making machine can easily adapt to different recipes.
Precise Temperature Control
Two large upper die cylinders press the die smoothly under a pressure of 0.6 to 0.8 MPa and lock it with the lower die. The photoelectric sensor ensures that the pressing and trimming actions reach the preset position accurately. Dual air handling units can filter impurities and provide lubrication to prolong the service life of cylinders.
Commercial High-Volume Production
The edible tea cup making machine can produce 600 to 800 pieces per hour. Automatic cutting replaces manual cutting; the speed of the discharge conveyor belt is adjustable, and the waste is collected in a bag. Only one person is needed, which is an efficient way to improve the economy and output.
Safe and Customizable
The edible tea cup making machine will stop as soon as the light beam is interrupted. The molds are interchangeable. Because we are a manufacturer and have our own mold processing center, all molds are consistent and accept OEM shape customization requests.
Product parameter
| Production Capacity | 600-800Units/Hour |
| Operating Voltage | 380V 50HZ/60HZ |
| Heating Method | Electric Heating |
| Power | 21KW |
| Baking Time | 2.5-5Minutes |
| Mold Opening/Closing and Batter Spreading Method | Automatic |
| Batter Feeding Method | Manual Tray Loading |
| Cylinder Operating Pressure | 0.6-0.8MPA |
| Machine Dimensions | 1200*1600*2200MM |
| Machine Net Weight | 790KG |
| Packaging Dimensions | 1300*1750*2300MM |
| Machine Gross Weight | 890KG |

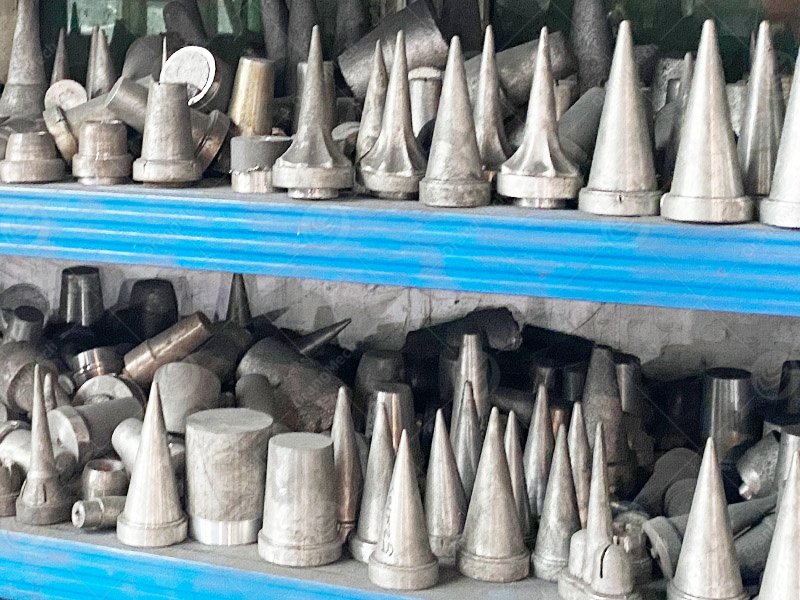

Mold (Customizable Shape)
OrangeMech’s internal processing facilities design each set of molds to ensure that the dimensions are exactly the same. Whether you need a standard espresso coffee cup size or a unique design style, we can customize the mold shape directly according to your brand specifications using this edible tea cup-making machine.

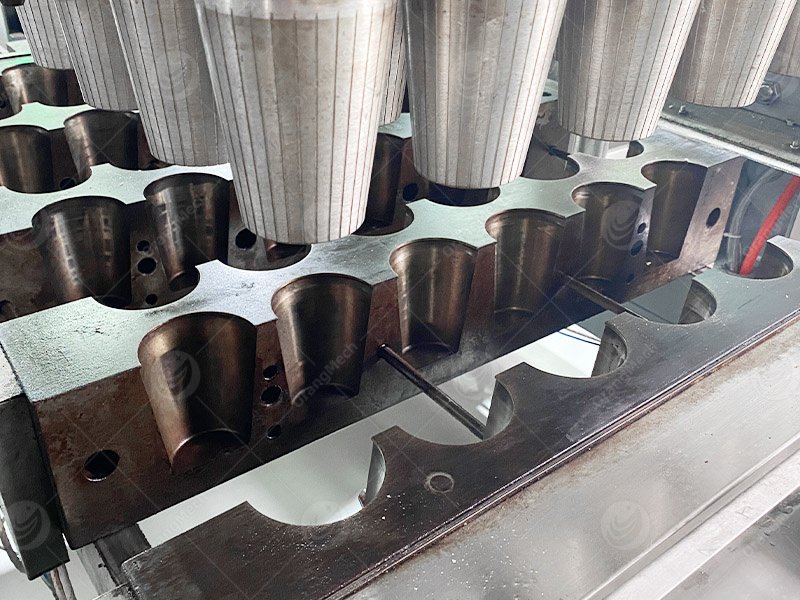

Rust-Resistant, Easy-to-Clean Mold Tray
Specially designed for strict food safety standards, the mold tray can withstand high temperatures and prevent oil accumulation. Its smooth surface treatment can avoid batter adhesion, facilitate quick wiping between shifts, and keep the manufacturing plant clean and maintain a clean production environment.

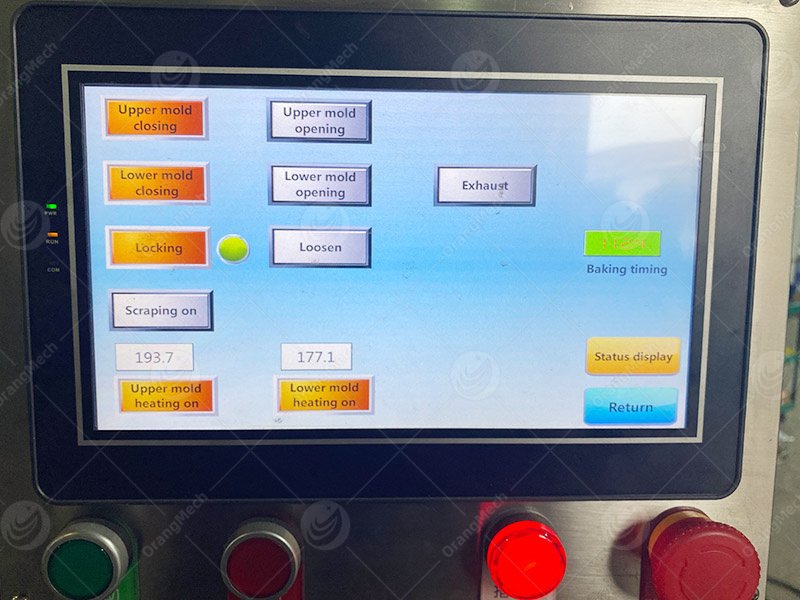

Control Panel (Multilingual Smart Interface)
The intuitive touch interface is installed on the telescopic arm, and the operator can tilt it to a comfortable angle. Through simple logical menu operation, even new employees can master this biscuit cup making machine in a short training time.

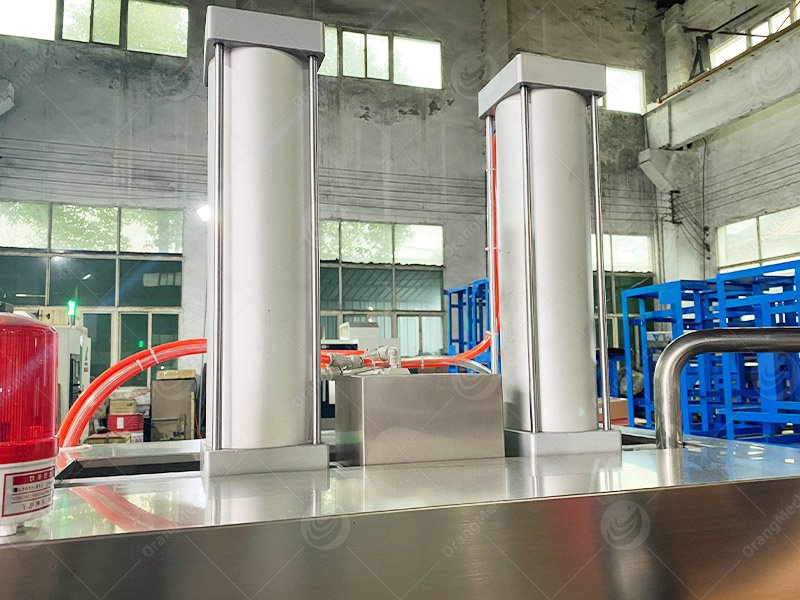

Pneumatic Pressure System (Smooth, Heavy-Duty Pressing)
Driven by a double ejector cylinder, the pressure can reach 0.8 MPa, and the system can provide stable and high-load pressing force. The up-and-down stroke runs smoothly without vibration, ensuring that a dense and sealed cup wall can be formed every time.

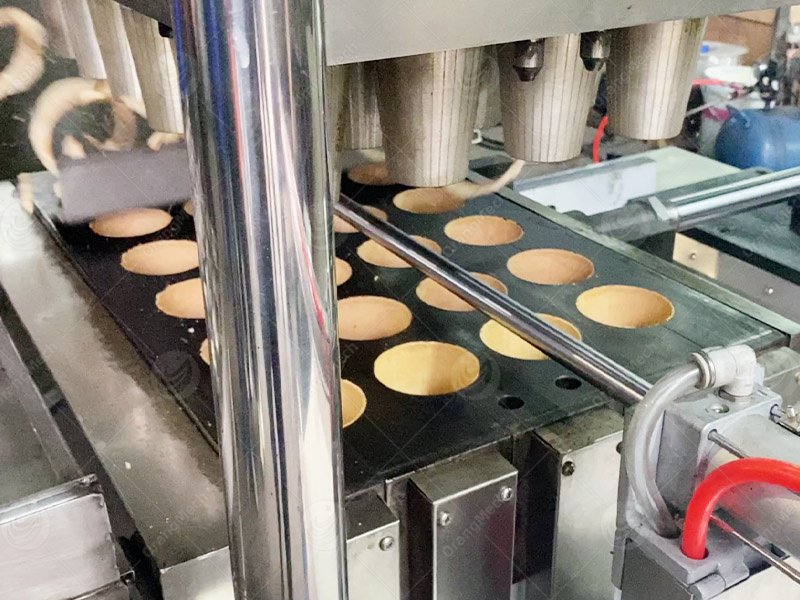

Automatic Scrap Trimming (Integrated Edge Cutter)
Stop wasting manual labor on edge cleaning. The built-in mechanical trimmer can automatically cut off the excess baking scraps from the edible tea cup making machine, making the cup mouth smooth and reducing manual operation costs.

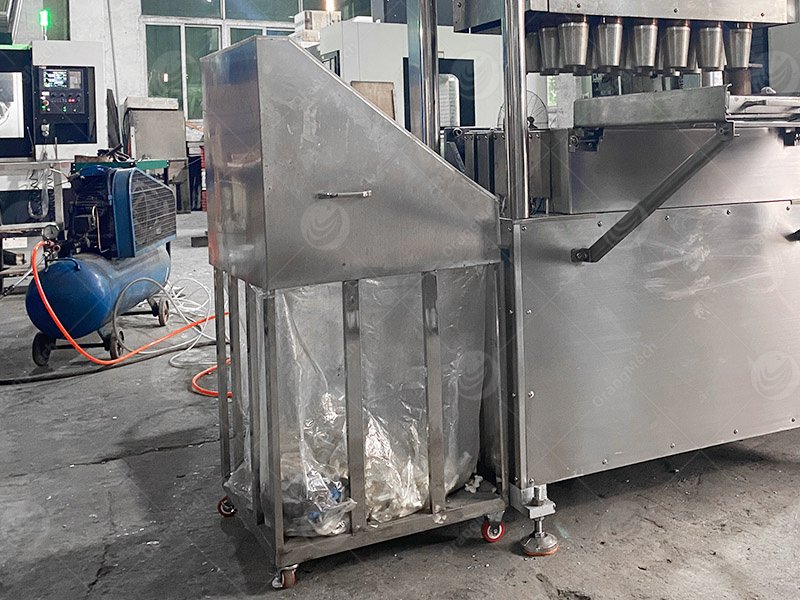

Mobile Waste Collection Cart (With Casters and Bin Rack)
It is simple to keep the production area clean. Excess dough residue will directly fall into the mobile garbage bin equipped with rotating casters and an integrated bag rack, so that your staff can easily roll it away and clean up the garbage without stopping the main production line.
Product application
◉ Eco-Friendly Food Service Supply Chain：
Catering service operators are phasing out disposable plastic products. By adding a high-capacity edible tea cup making machine, bakeries and catering suppliers can now directly produce crisp and edible drinking utensils for environmentally conscious cafes and event venues.
◉ Industrial Food Processing Plant：
Large food facilities can integrate the equipment into the existing packaging line. As an efficient customized solution, it can realize high-speed mass production of edible biscuit containers and is suitable for packaging ready-to-drink beverages, desserts, and retail soup products.
◉ Specialty Beverages and Restaurant Chains：
Chain cafes and tea brands can deploy this biscuit cup making machine in the central kitchen to standardize the size of cups, optimize the use of bulk raw materials, and reduce the secondary packaging cost of each franchise store.
FAQ
Of course. Our common mold shapes are patterned and non-patterned, and we can also customize the logo. If you want a cup with a handle, our engineering team can also customize the mold for you.
Maintenance is simple and quick. The equipment adopts a high-grade stainless steel surface and a corrosion-resistant mold tray, which can effectively prevent dirt accumulation. During daily cleaning, the standby area can be opened after cooling and is easy to operate.
The price is determined according to your configuration, mold number, and voltage. You can directly tell us the output, mold quantity, voltage, and cup size you want, and we will prepare a detailed quotation for you. If you want more sets of equipment, then we can negotiate more favorable terms. The more you buy, the more favorable the price! This depends on the configuration, number of molds, and voltage. Please let us know your production target and cup size, and we will prepare a quotation for you. If you need to purchase multiple sets of products in bulk, we can negotiate more favorable terms.
380V 50/60Hz power supply, 0.6-0.8 MPa compressed air, and an operator are required for pallet loading. The size of the machine is 1200*1600*2200 mm, so you can estimate whether your site can accommodate it based on the size. The net weight is 790 kilograms. The packing size is 1300*1750*2300 mm, and the gross weight is 890kg.
