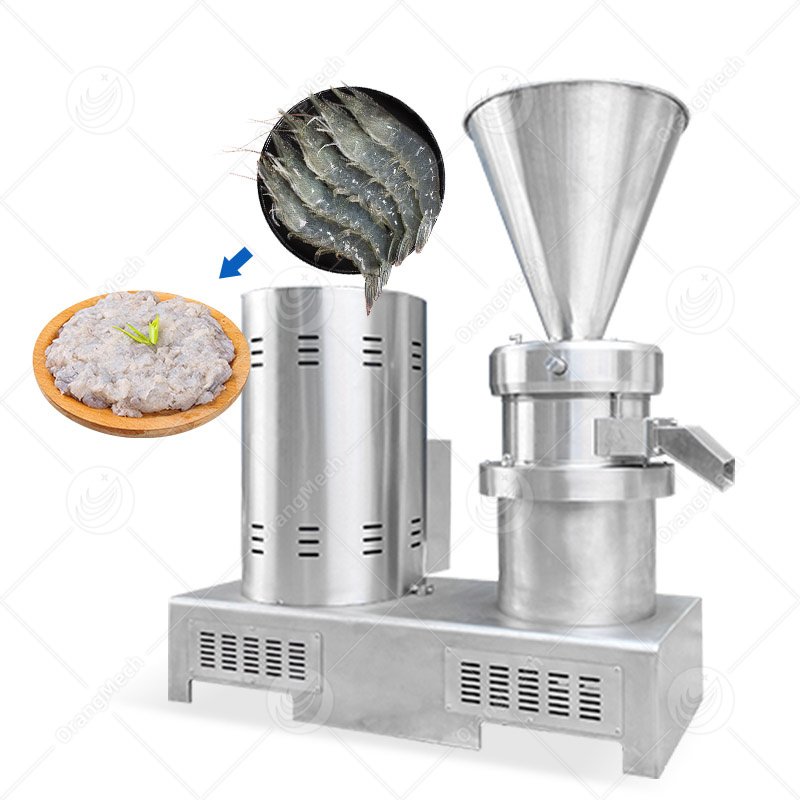

Colloid mill machine is mainly composed of driving motor, transmission device, dynamic and static grinding disc and feeding and discharging components. After the equipment is started, the motor outputs power and drives the movable grinding disc to rotate at high speed through the transmission device. The material is fed from the feed inlet and enters the narrow gap between the dynamic grinding disc and the static grinding disc. Under the combined action of extrusion, rolling and multiple shearing caused by the relative rotation of the grinding disc, the solid particles are continuously torn, broken and refined. Coarse materials are gradually decomposed, fully treated by the gap between the grinding discs, and discharged from the discharge port, and finally a sauce-like finished product with fine and uniform texture is obtained.
Product advantages
Strong Adaptability
OrangeMech’s food colloid mill has a variety of models with different specifications, which can not only meet the production needs of small workshops, but also adapt to large-scale processing in factories. It can also be used for prophase grinding of chemical raw materials, and can build a complete production line by docking supporting equipment such as roasted seeds and nuts and filling.
Safe And stable
The motor is equipped with an independent closed protective case, and the whole machine has no exposed transmission parts. The closed reinforced base effectively weakens the jitter caused by high-speed operation, structurally avoids the risk of bumping and misoperation in the production process, and the operation is more reliable.
Safe And Stable
The large diameter stainless steel hopper is easy to take apart. Smooth housing without sanitary dead corners allows quick rinsing, reduces paste residue and prevents cross contamination between batches.
High Adjustability
The thickness of the finished sauce can be changed by manually adjusting the grinding gap without replacing the grinding disc accessories. The water cooling interface and the fuselage cooling holes cooperate to dissipate heat, effectively controlling the friction high temperature caused by grinding, and the equipment can withstand long-term uninterrupted feeding operation.
Product parameter
| Item | Colloid Mill 70 | Colloid Mill 85 | Colloid Mill 130 | Colloid Mill 180 |
| Voltage | 220V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ |
| Motor Power | 3KW | 5.5KW | 11KW | 30KW |
| Capacity | 60 80KG/H | 100 150KG/H | 200 300KG/H | 500 800KG/H |
| Weight | 70KG | 170KG | 270KG | 470KG |
| Dimension | 650*320*650MM | 800*350*800MM | 1000*350*1000MM | 1260*560*1200MM |
Water Inlet and Outlet
Colloid mill machine can accurately adjust the inlet and outlet flow of cooling water, continuously cool the grinding turntable, and effectively prevent the pipeline from being blocked. After the operation, water can be directly flushed into the cavity, which simplifies the equipment cleaning process and further improves the overall production efficiency.
Discharge Elbow
Support multi-angle flexible steering installation, adapt to workshop layout and save space. With its own buffering effect, it can slow down the impact of sauce discharge and avoid materials splashing around; The disassembly and assembly operation is simple, which is convenient for the collection of finished sauce.
Elongated Air Vent
Ensure the uniform heat dissipation of the whole machine, reduce the running noise of the equipment, avoid overheating, slow down and stop the machine during continuous processing, stabilize the working state of the equipment and effectively prolong the service life of the whole machine.
Large-Diameter Feed Opening
The cone-shaped large opening design can quickly put in a large number of materials, and it is not easy to block materials. Detachable stainless steel structure, smooth inner wall, easier to clean up residue, time-saving and labor-saving.
Protective Cover
Play a key role in safety protection, stop touching moving parts by mistake, prevent dust, prevent sauce splashing and weaken equipment vibration and operation noise; The shape is neat and beautiful, and it is very convenient to disassemble and clean.
Product application

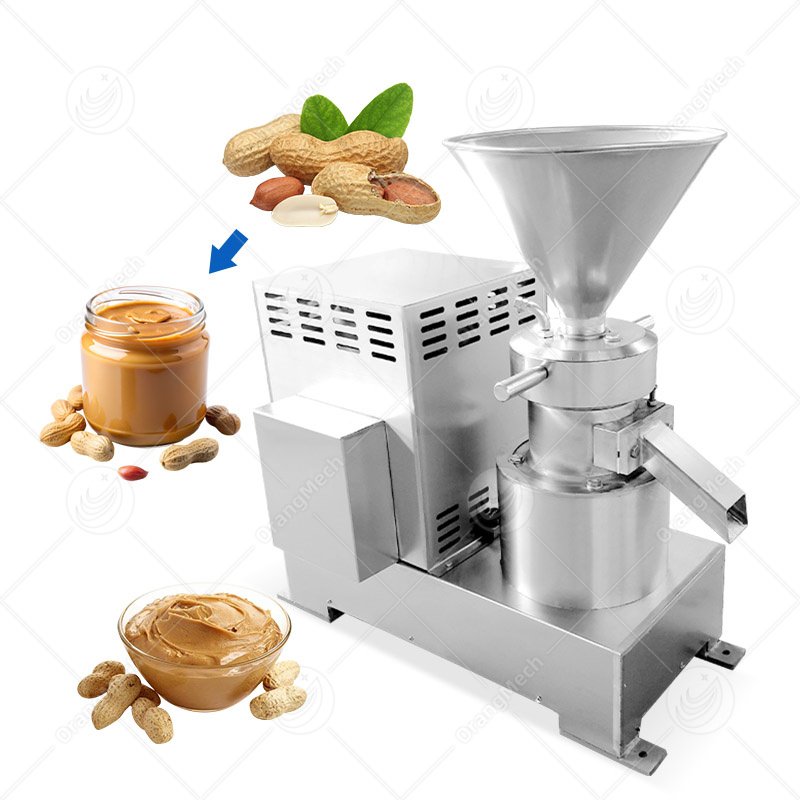

◉ Production Of Nut Jam: Food colloid mill is suitable for the processing of peanut, sesame and other nut raw materials. By means of high-speed shearing and grinding of rotor and stator, the granular raw materials are processed into fine and smooth sauce, taking into account fineness adjustment and water cooling and temperature control, and the produced sauce is uniform and stable, which is suitable for large-scale production in sauce workshops and food factories.
◉ Raw Material Pretreatment: For some chemical and food granular raw materials, colloid mill machine integrates crushing, refining and grinding, optimizes the particle fineness of materials, and the particle size of finished products is controllable, which can undertake the pretreatment of large quantities of materials in processing plants.

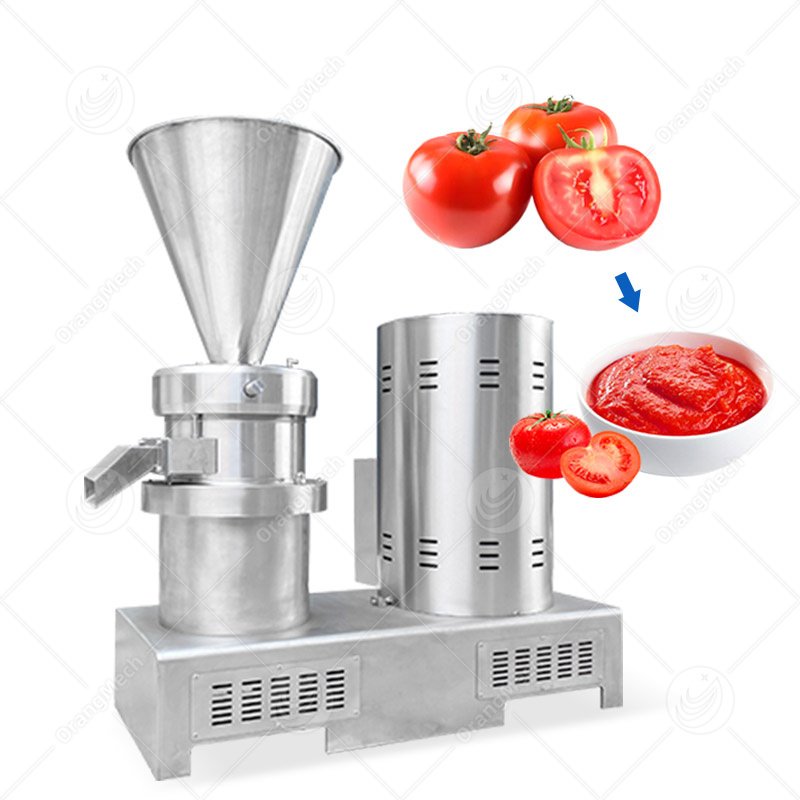

◉ Processing of fruit and vegetable paste
: Colloid mill can also treat all kinds of cooked and softened fruit and vegetable materials, break pulp fibers efficiently, and process fruit and vegetable paste and fruit paste products. Can weaken the graininess of crude fiber, is suitable for fruit and vegetable deep processing workshops and beverage raw material factories, and is used for batch preparation of fruit paste fillings and beverage base materials.
A1: A lot will do. Nuts such as peanuts and sesame seeds can be processed to make sauces, and some chemical raw materials can also be pretreated and ground; Multi-models are suitable for small workshops and factories.
A2: The price of colloid mill mainly depends on the equipment model, motor power and hourly output, and whether or not to choose outsourcing protection money will also cause price difference.
A3: The machine is equipped with a water injection cooling interface to cooperate with the long air holes in the fuselage to dissipate heat. The grinding gap can be manually adjusted, and the air holes assist the whole machine to dissipate heat, ensuring long-term stable production and reducing the risk of overheating paste.
