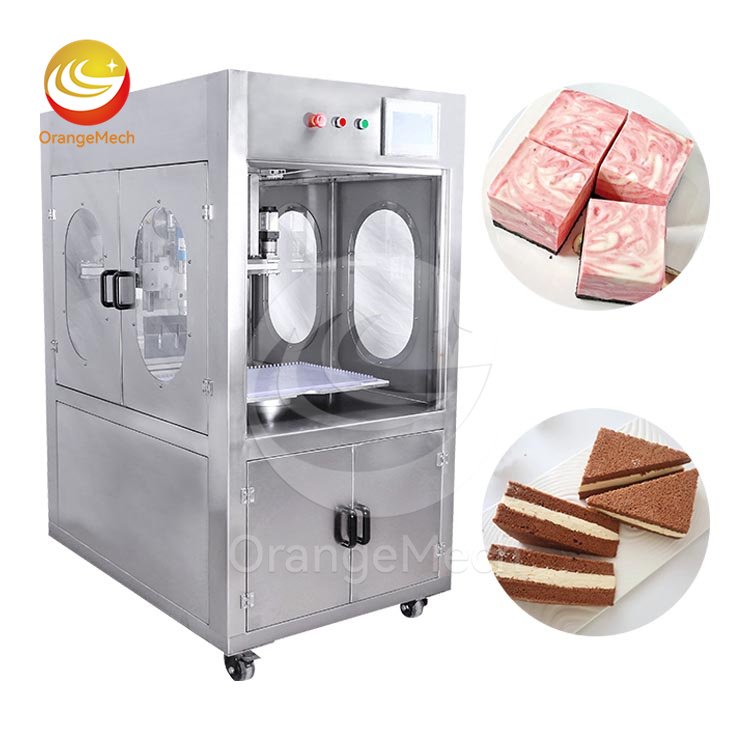

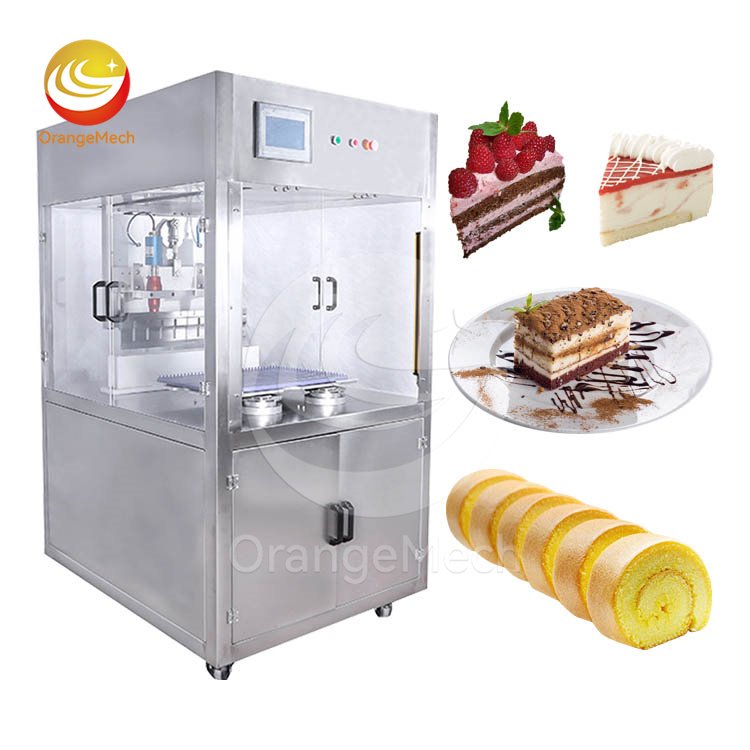

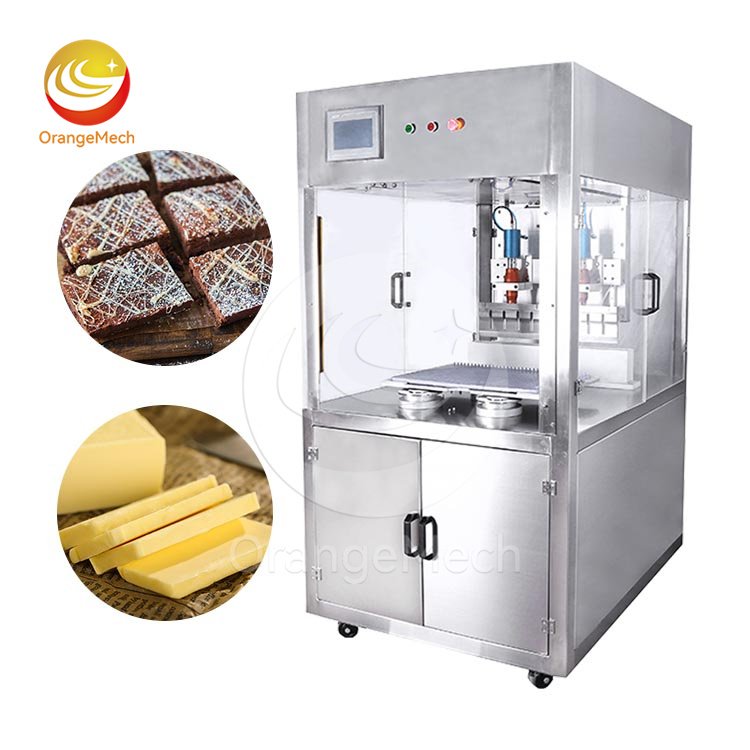

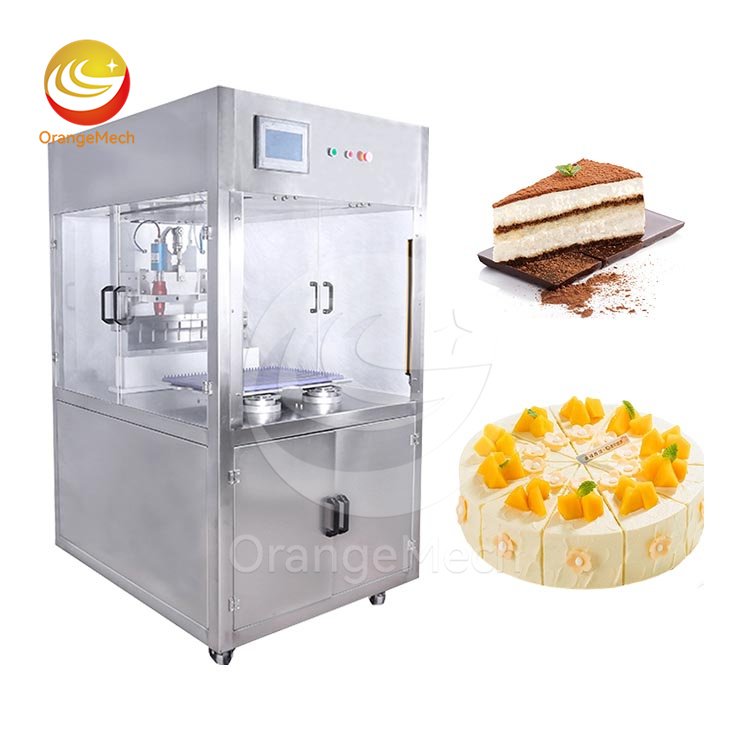

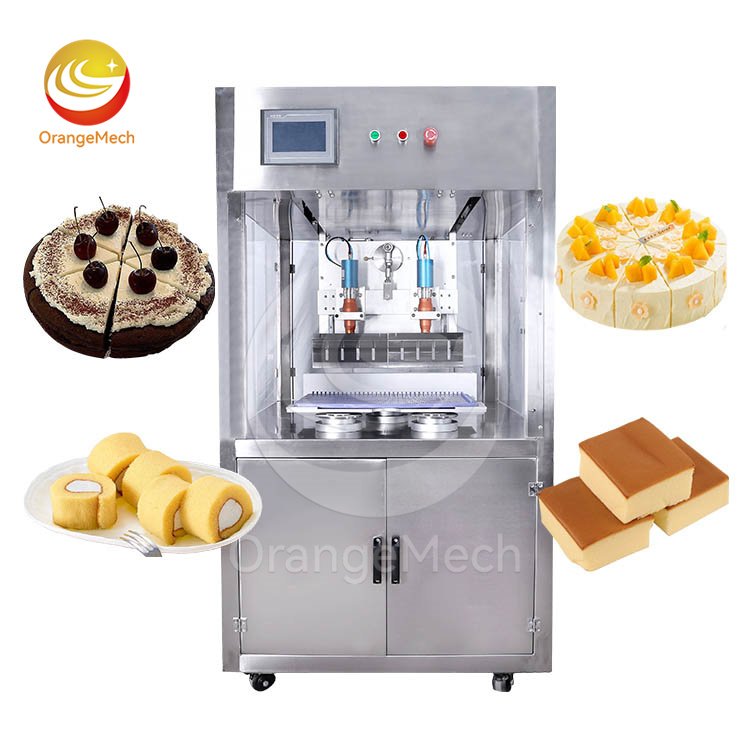

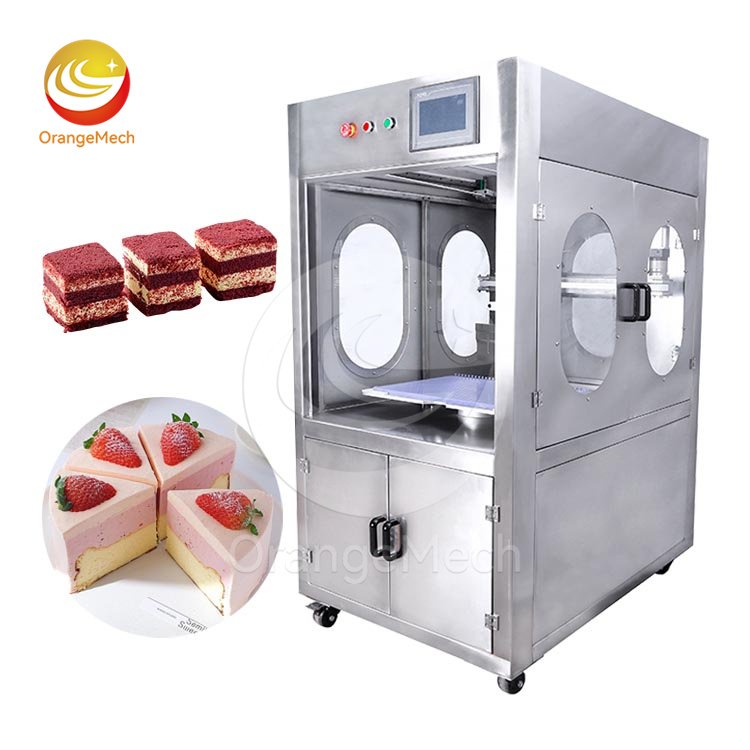

The ultrasonic cake slicer converts electric energy into high-frequency mechanical vibration through an ultrasonic generator and transducer and transmits the vibration to the cutting tool. The cutter can quickly penetrate the cake material under minimal cutting pressure without squeezing or tearing the product, thus achieving a clean, smooth, and almost chip-free cutting effect. Can be applied to cream cakes, cheesecakes, and multi-layer cakes, and the finished products can remain stable every time they are cut. If you want to reduce the hidden costs such as raw material loss and routine maintenance, OrangeMech, as a professional ultrasonic cake cutting machine manufacturer, can provide you with an ideal solution!
Product advantages
High-Quality Finished Product
The blade of the ultrasonic cake cutter can make the cross section of a laminated cake or cream cake naturally deform and collapse.
Precision Cutting
The size of each cake is uniform after cutting, relying on ultrasonic high-frequency vibration (20-40 kHz) + low-pressure cutting + double knives, and the incision is smooth and without deformation.
PLC
An automatic integrated circuit intelligent control system can realize stable cutting by adjusting vibration parameters and can easily cut all kinds of cakes without changing tools.
Convenient Cleaning
The equipment frame shell is made of stainless steel, which is durable, corrosion-proof, rust-proof, easy to clean, and can prolong the service life of the ultrasonic cake-cutting machine with good daily maintenance.
Convenient Monitoring
The dividing room is made of food-grade transparent polymer material, which is convenient for observing and adjusting the working state of the equipment and has a more advanced visual effect.
Price Advantage
We are the original factory; without middlemen to earn the difference, we can directly customize your solution, and the production and delivery are all “one-stop” services. The ultrasonic cutter price is very competitive in the market!
Product parameter
| Model | Simple Type | Automatic Type | Production Line Type |
| Voltage | 1P+N 220V/50Hz | 1P+N 220V/50Hz | 1P+N 220V/50Hz |
| Power | 1.8 kW | 1.8 kW | 3.8 kW |
| Blade Specification | 2*305mm | 2*305mm | 2*305mm + 2*205mm |
| Cutting Height | 80mm | 80mm | 80mm |
| Cutting Shape | Round/Square/Triangle | Round/Square/Triangle | Square/Triangle |
| Cutting Speed | 1.5 sec/time | 1.5 sec/time | 1.5 sec/time |
| Accuracy | ≤1mm | ≤1mm | ≤1mm |
| Max Cutting Size | Round: 14 inches | Round: 14 inches | Square: 400*600mm |
| Square: 400*600mm | Square: 400*600mm | ||
| Material | Stainless Steel | Stainless Steel | Stainless Steel |
| Weight | 350 kg | 450 kg | 600 kg |
| Dimensions | 1200*900*1540mm | 1350*1300*1710mm | 3260*1200*1920mm |

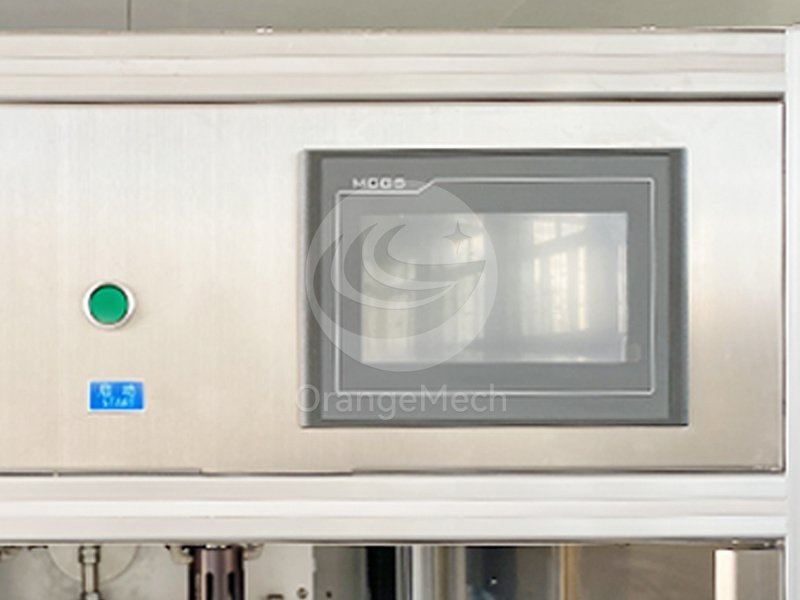

PLC Touch Screen
Just tap the screen to control everything. You can freely adjust the settings and save different recipes for later use.

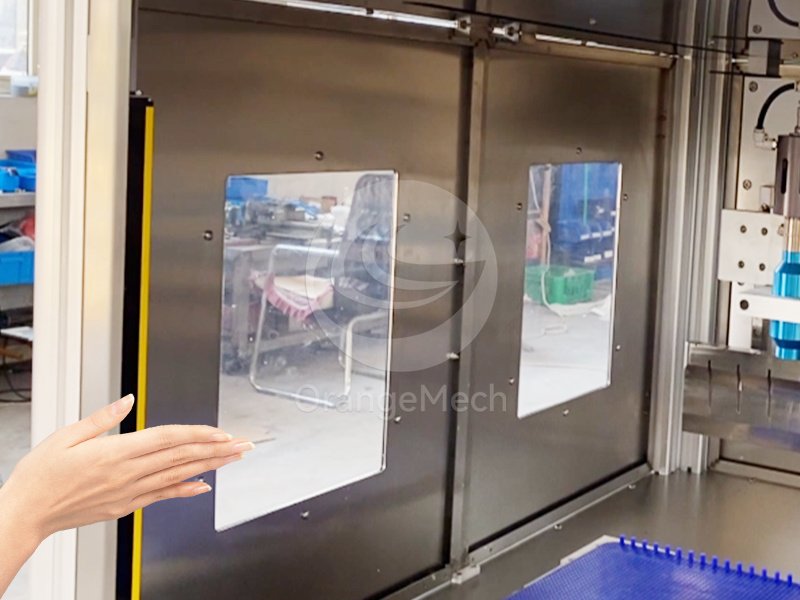

Safety Protection
It comes with an infrared sensor that stops things right away if anything gets too close
—much safer to work with.

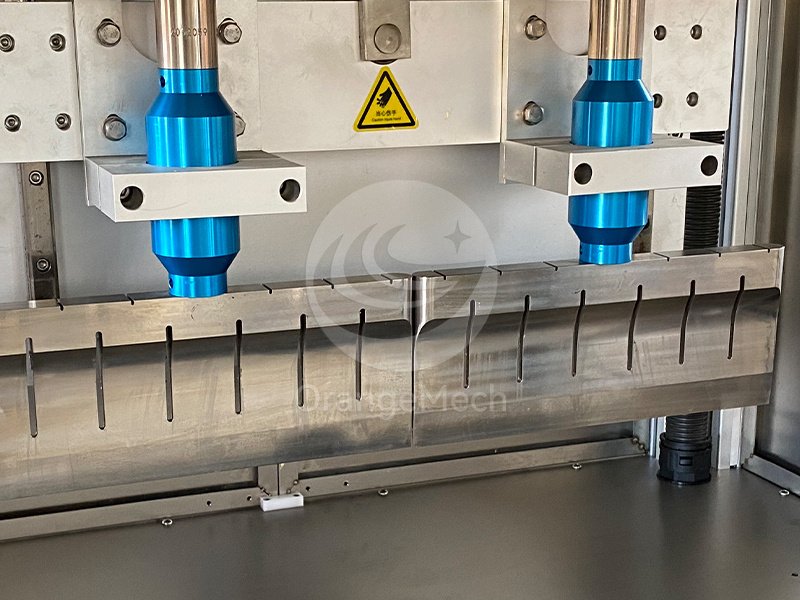

Ultrasonic Cutting Knife
The knife is made of titanium alloy, the incision is smooth, the bread is cut without crumbs or raw materials, and the ultrasonic cutter price is very competitive.

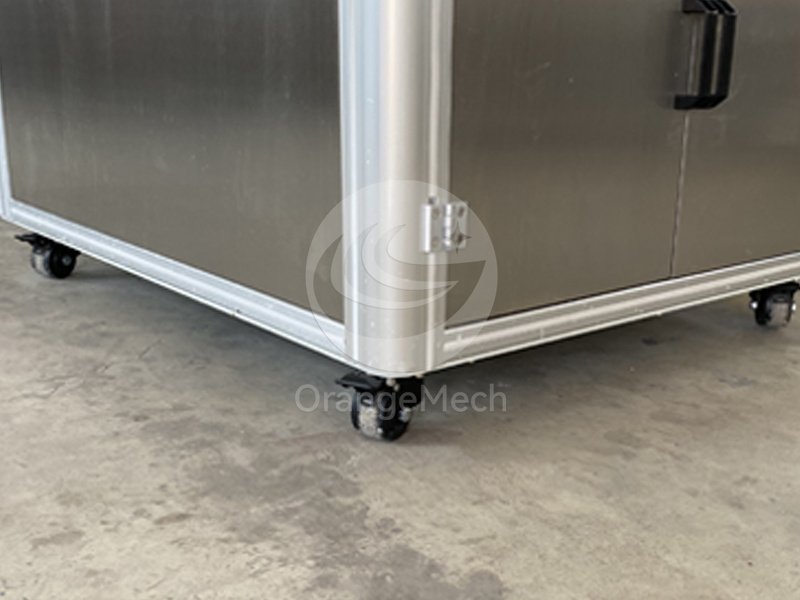

Universal Wheel
All four corners are equipped with universal wheels, which are very convenient to move, and have foot brakes, which are very stable.

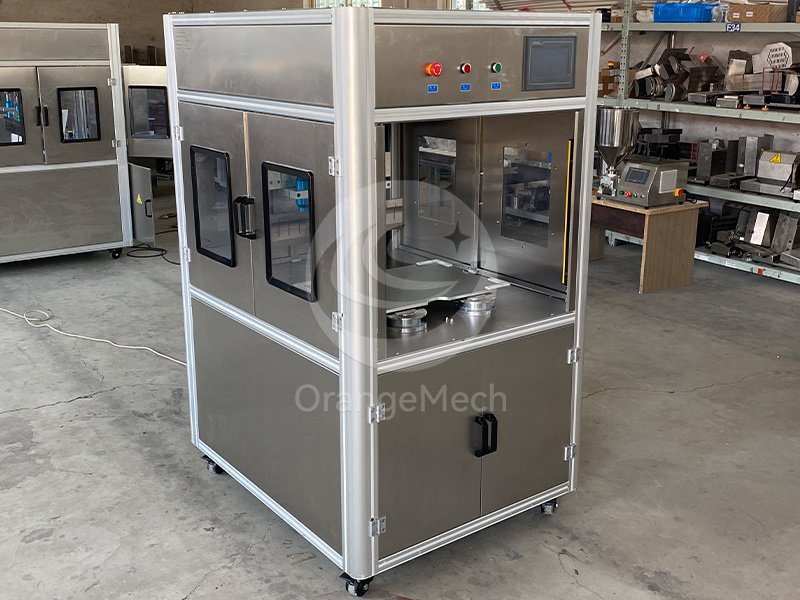

Custom Options Available
Every product is different, and we get that. Just tell us what you need—we’ll tailor a cutting solution specifically around your product requirements, from blade size to cutting patterns.
Product application
◉ Industrial baking production line: baking facilities suitable for mass production of multi-layer cakes, Swiss rolls, and sponge cakes, with fast and accurate segmentation.
◉ Pastry shops—especially those with high requirements on technology: ultrasonic cake cutting machines protect your high-end technology.
◉ Ice cream cake shop: Most blades will crack frozen products. OrangeMech’s ultrasonic cake slicer can cleanly cut semi-frozen and fully frozen desserts without pre-thawing, keeping the temperature, texture, and shelf life of the products.
20-40 kHz+ low pressure cutting + double cutter heads.
Stable cutting can be achieved by adjusting vibration parameters without changing the cutter.
The outside of the partition is made of food-grade transparent polymer, which is very convenient to observe the working state and safe and hygienic!
