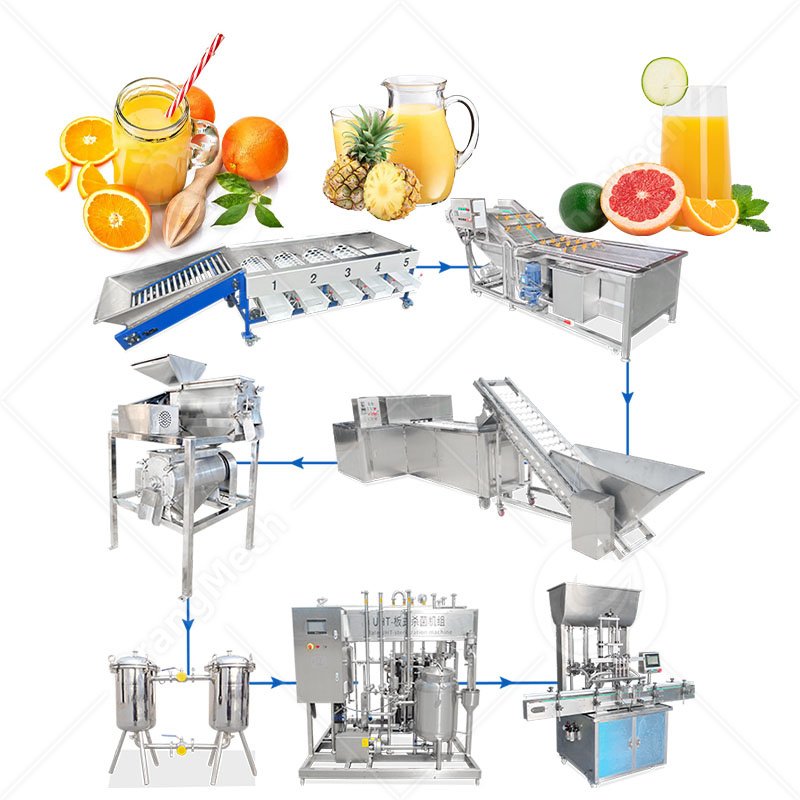

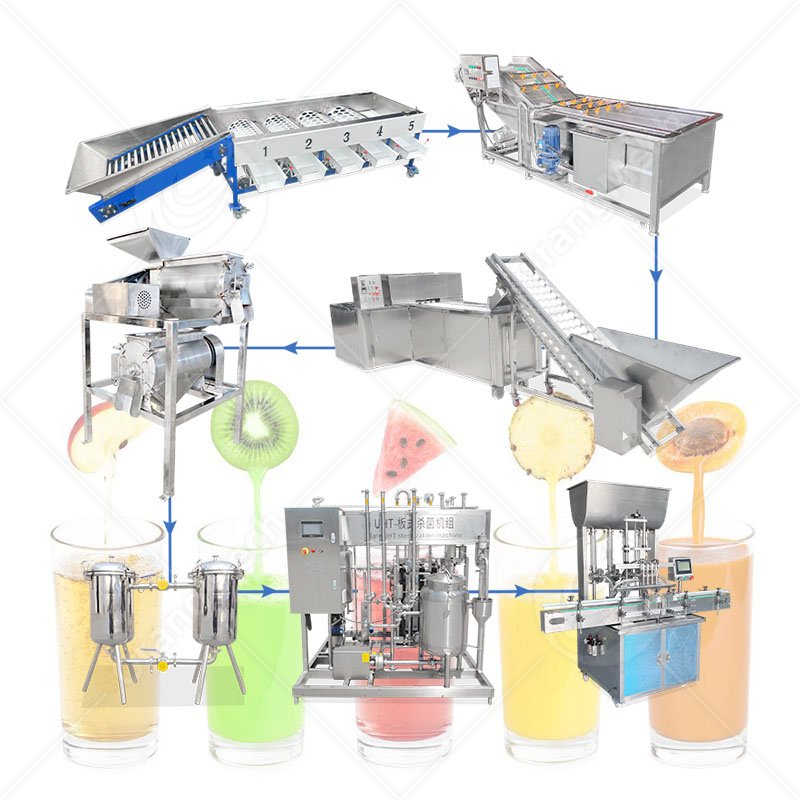

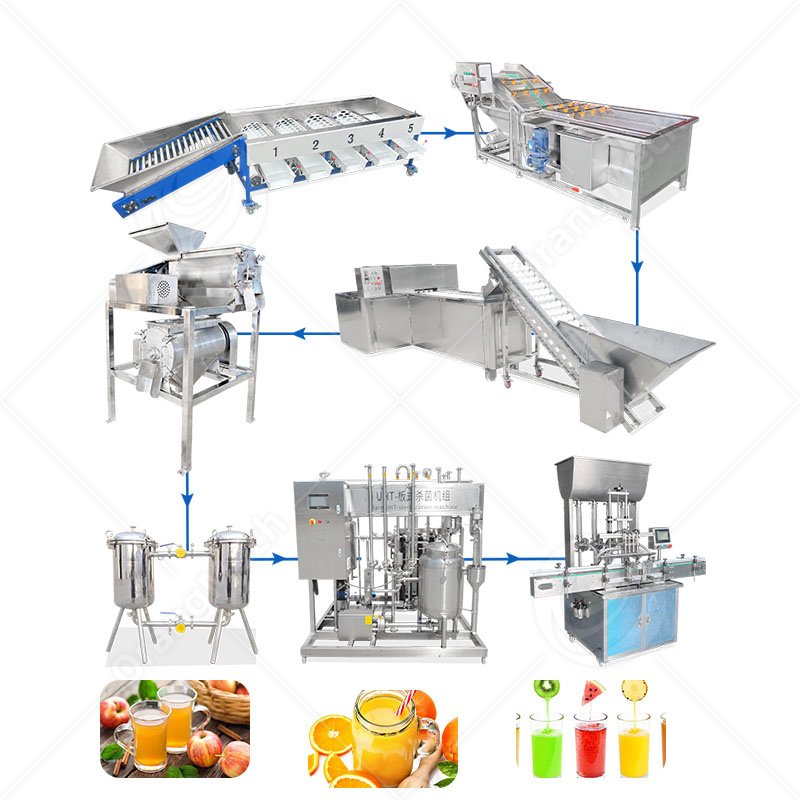

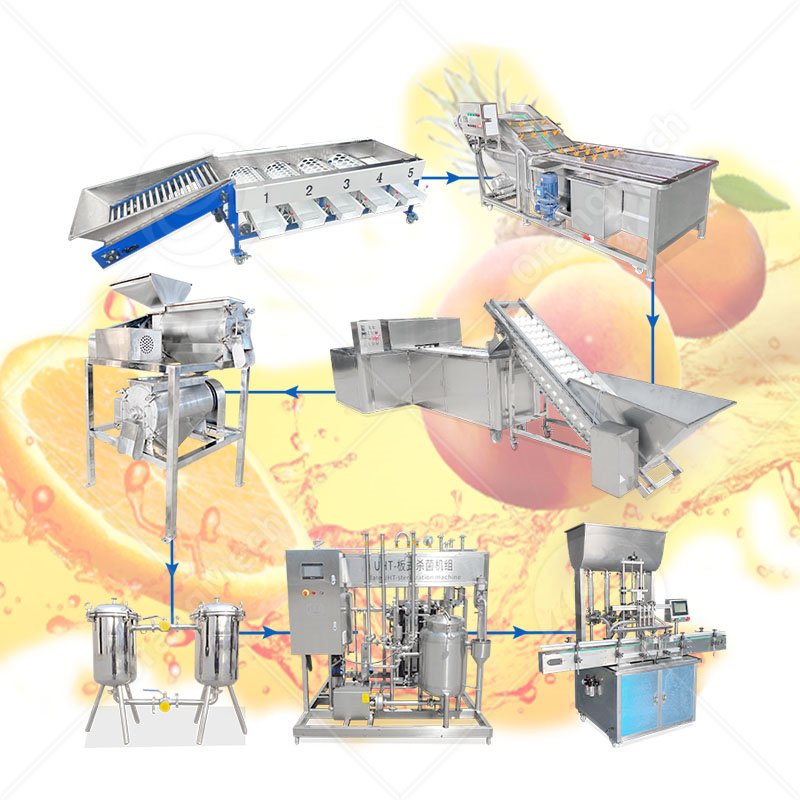

OrangeMech’s juice processing equipment is designed for fresh fruit processing. After sorting and grading, the fruits undergo roller pre washing and bubble deep cleaning, followed by pitting, segmenting, and pressing. The juice is then filtered, subjected to UHT plate type sterilization, and subsequently cooled before final filling, achieving continuous automated production. We can customize complete solutions according to your production capacity and target fruit varieties.
Product advantages
Automated Production
This fruit juice processing line uses elevators for automatic material conveying. It minimizes manual work from raw‑material feeding to finished‑product filling, supports long‑term continuous factory production and cuts labor costs.
Stainless Steel Material
All material contact components are made of stainless steel. Resistant to fruit juice corrosion, free of hygienic dead angles, they are easy to disassemble and clean and comply with food production hygiene standards.
Modular Design
The sorting, cleaning, juicing, sterilization and filling units are independent and modular, and the layout can be adjusted according to the factory conditions, and the equipment can be configured as needed, which is suitable for small and medium-sized juice factories to choose this set of juice processing equipment.
Simple Operation
The UHT sterilizer is equipped with a touch screen for simple parameter setting and fault‑alarm prompts. With a stable electric‑control system, workers can operate it after brief training.
Support Customization
The sorting aperture, specifications for pitting and segmenting, and linear speed can be customized, and apples, peaches, pears and other fruits can be processed.
High Juice Yield
Dual pressing of the juicer raises juice yield while filters remove fruit pomace. Combined with UHT instantaneous sterilization, the original juice flavor is well preserved.
Product parameter
| Name | Parameters |
| Sorting Machine | Voltage: 380VPower: 0.75KWDimensions: 3370*1100*790mm |
| Bubble washer | Voltage: 380VPower: 1.5kwDimensions:1500*850*900mm |
| Bubble Washing Machine | Power Supply: 380VPower: 5.5KWDimensions:6000*1250*1250mm |
| Elevator | Power Supply: 380VPower: 0.75KWDimensions: 2000*700*1200mm |
| Pitting and segmenting machine | Power Supply: 380VPower: 2.2KWDimensions: 2000*1200*1200mmCapacity: about 208 pcs per minute (speed adjustable) |
| Multifunctional juice extractor | Power Supply: 380VPower: 2.2KWDimensions: 1100*1100*1700mm |
| Sterilizer | Power Supply: 380VPower: 5.5KWDimensions: 2400*2000*2200mm |
| Filling machine | Power Supply: 220VPower: 1.6KWDimensions:2050*1350*2200mm |

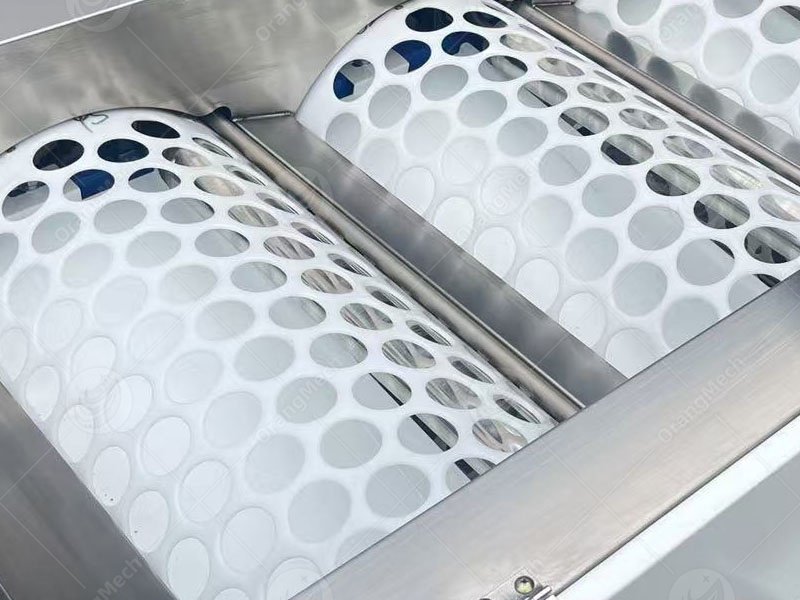

Drum-type Grading
The grading apertures in this fruit juice processing line can be customized to meet customer requirements.

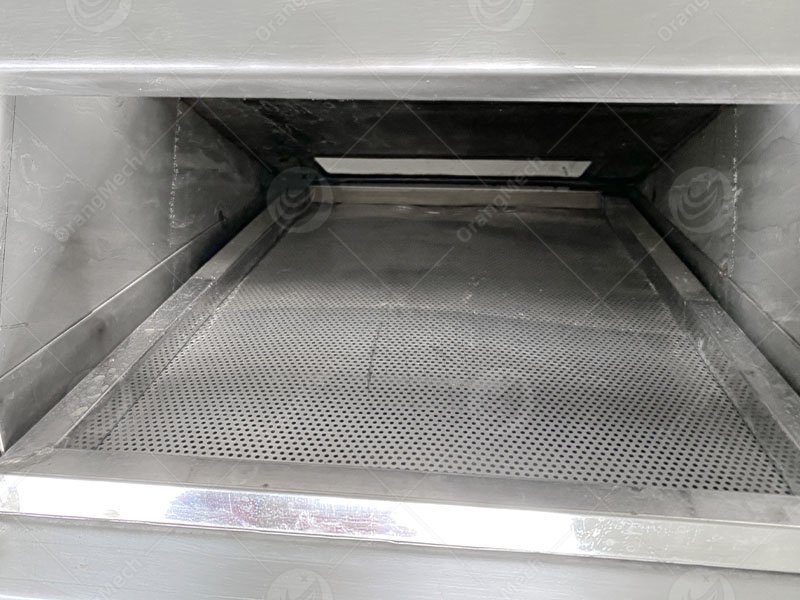

Recirculating Water Tank
Equipped with a filter screen to remove impurities from the water and prevent nozzle clogging.

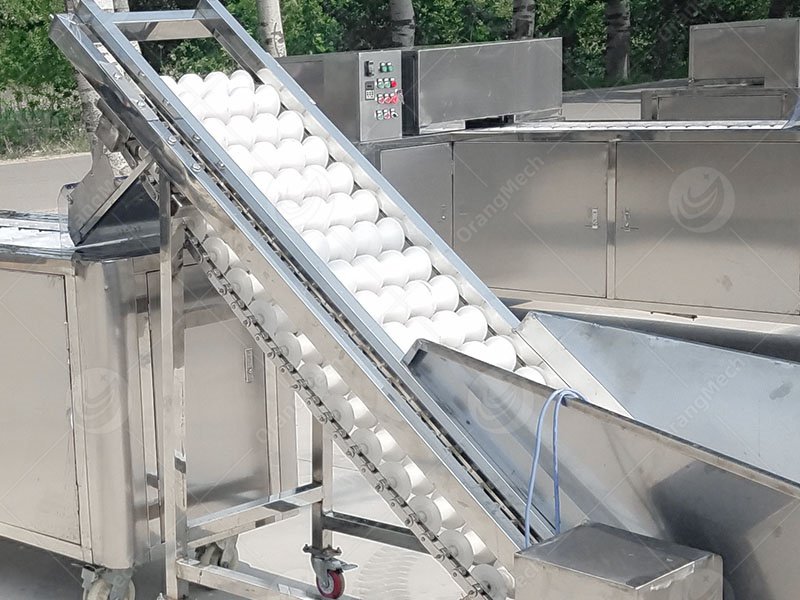

Roller-based Metered Lifting
Prevents material accumulation and facilitates smooth transition to the next processing step.

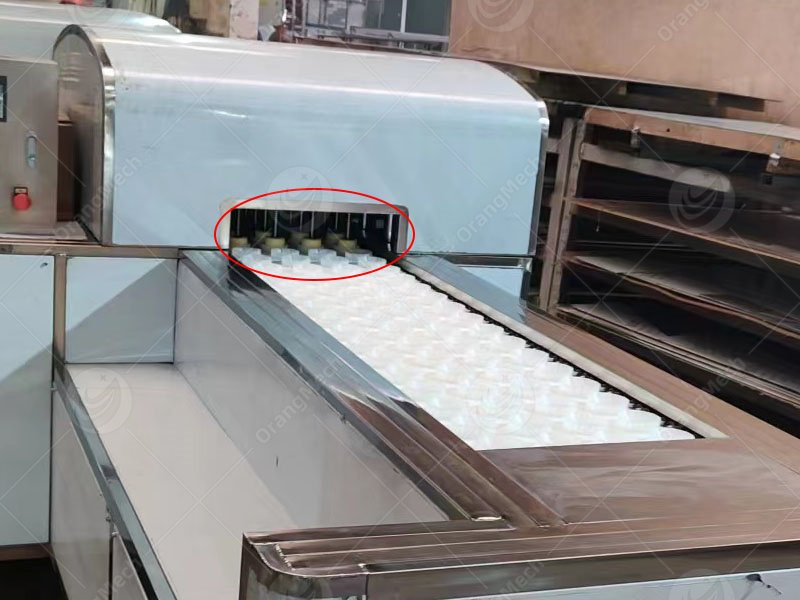

Precise Orientation
It can be customized according to customers’ target fruit varieties.

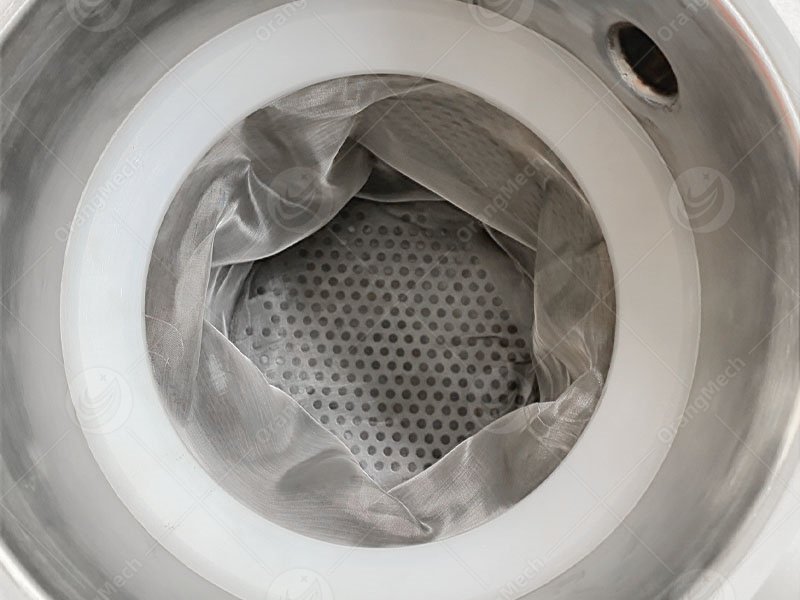

High-density Filter Screen
Filters out large particles to ensure a clearer juice.

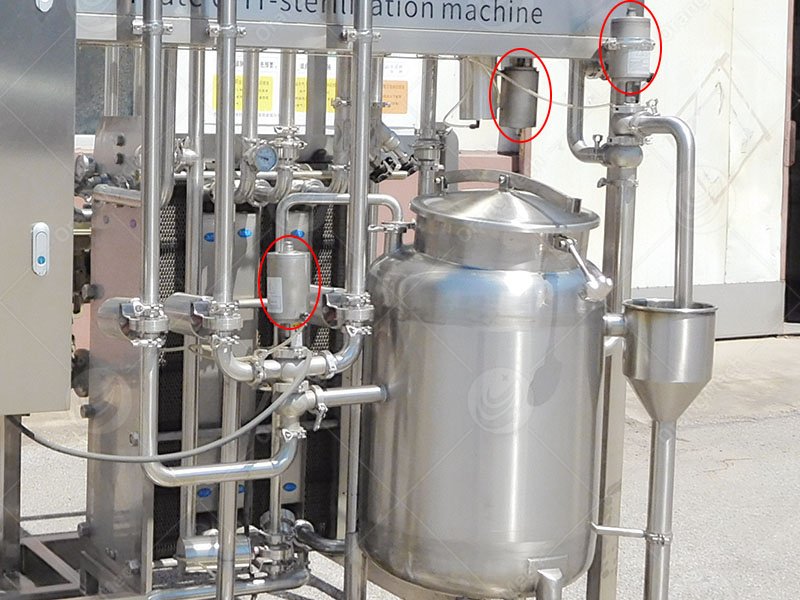

Pneumatic Control Valves
Easy to operate, eliminating the need for manual valve control.
Product application
◉ Juice Processing Plant:
This set of fruit juice processing line is used for complete fresh fruit juice processing. It completes sorting, washing, pitting & pressing, filtering, sterilization and filling to produce bottled juice, suitable for small and medium sized juice manufacturers.
◉ Fruit & Vegetable Deep Processing Enterprise:
As one kind of juice processing equipment, it realizes juice pre treatment and full production. It processes apples, peaches and pears to produce semi finished juice or filled finished goods, and can be connected to downstream packaging procedures such as labeling.
◉ Agricultural Product Processing Base:
Ideal for centralized fresh fruit mass processing for seasonal apples, peaches, pears. Processed juice can be sold locally or supplied to downstream beverage manufacturers to realize local value adding for agricultural products.
Pineapple Juice
Mango Juice
Orange Juice
Apple Juice
A1: This fruit juice processing line is suitable for apples, pears, peaches and many other common fresh fruits. It supports the whole processing procedures of juicing, filtering, sterilization and filling for different fresh fruits with strong versatility.
A2: The complete set of juice processing equipment supports personalized customization. The sorting aperture, splitting specification, equipment operating speed and production line layout can be adjusted according to customers’ workshop size, production capacity and fruit specifications.
A3: Adopting a dual-pressing structure to increase juice yield, matched with a high-density filter screen to remove impurities and UHT instant sterilization technology, this fruit juice making machine effectively retains the original flavor of fruit juice. The finished juice is clear, residue-free and stable in quality.
