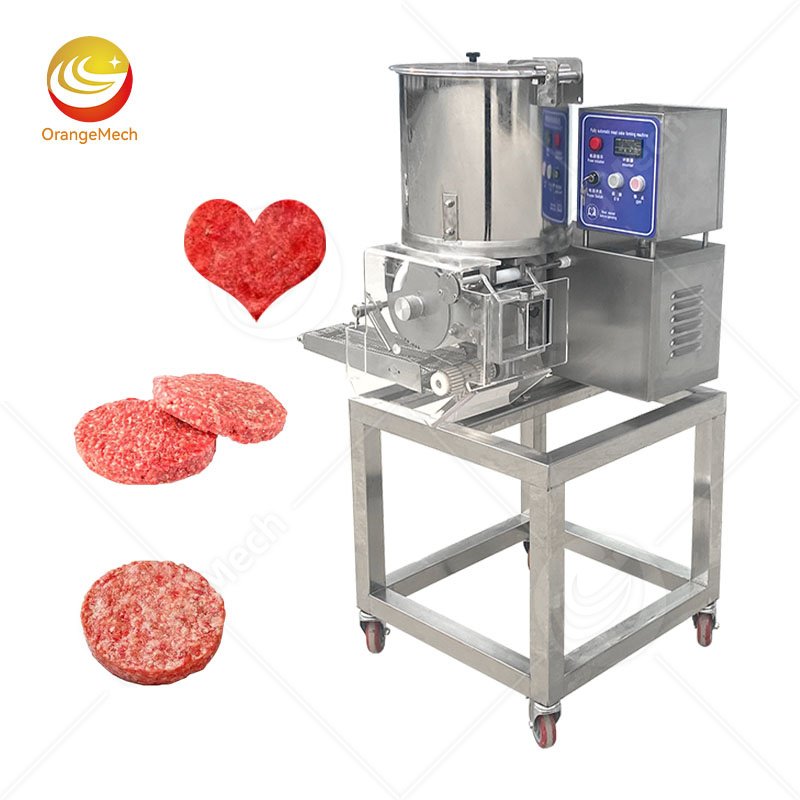

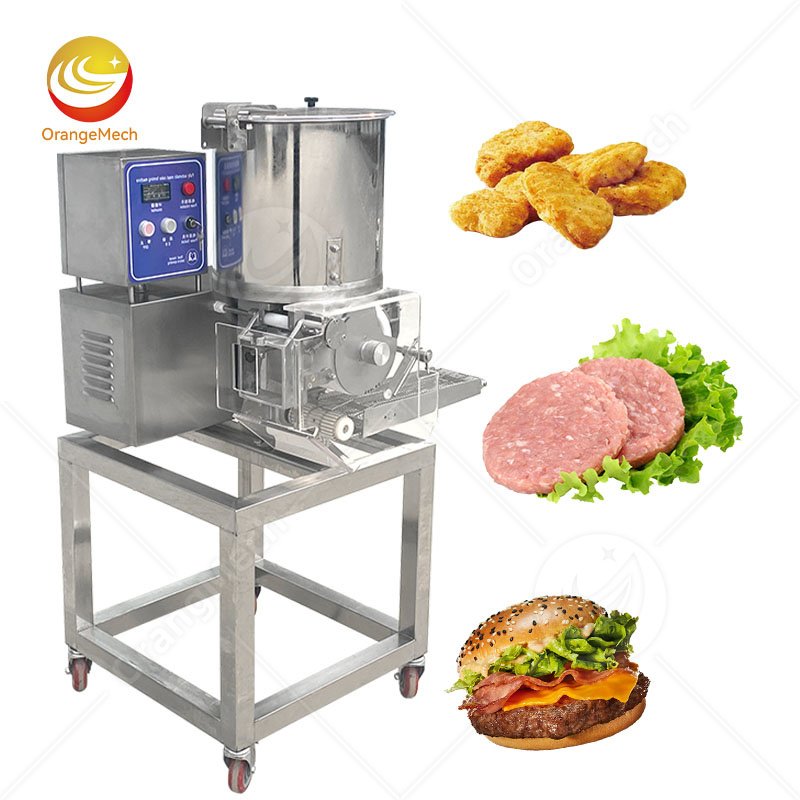

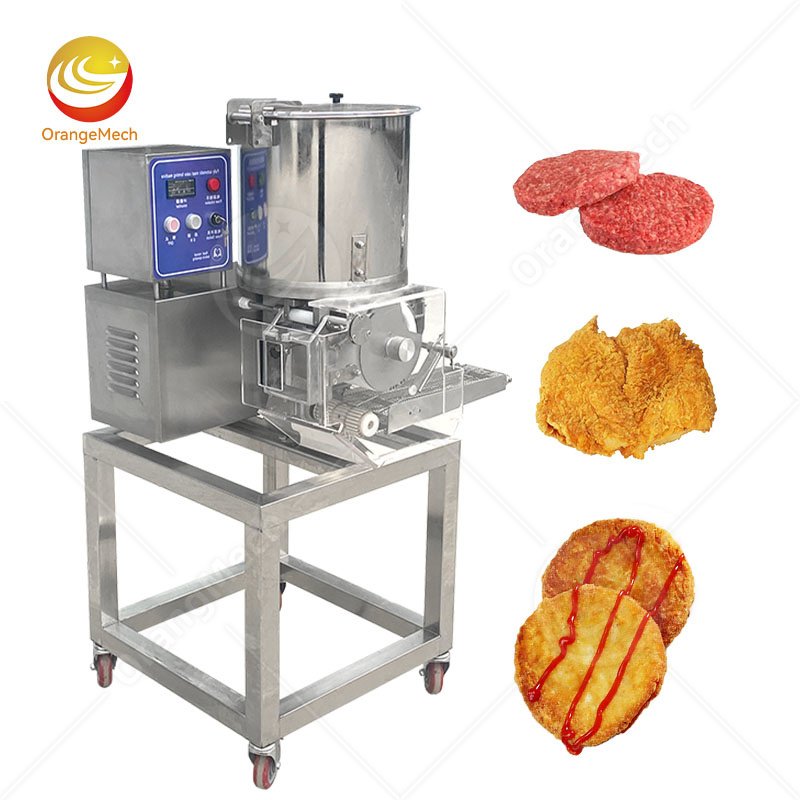

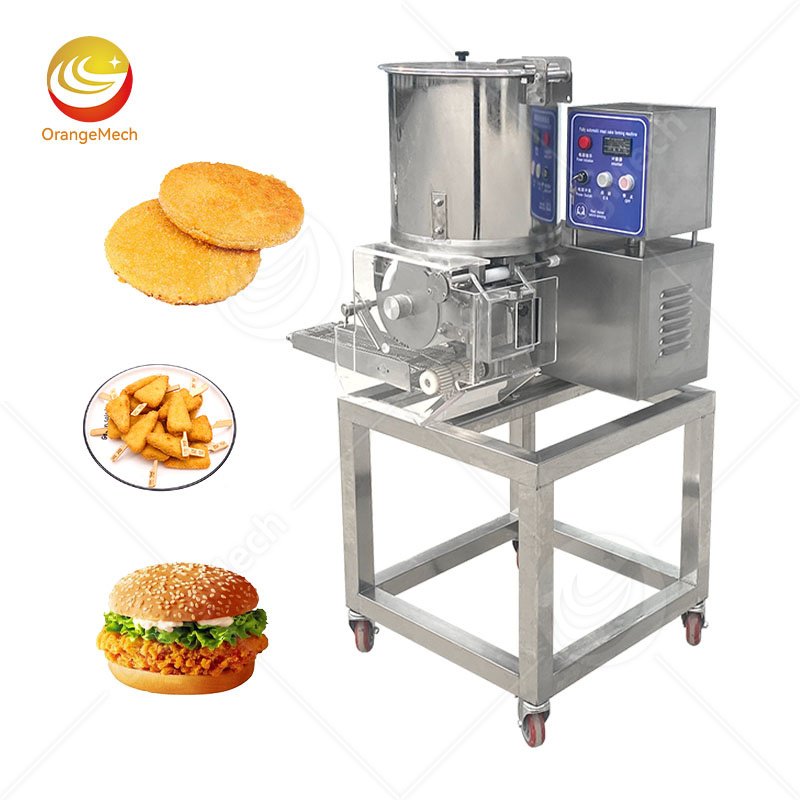

The meat forming machine puts the pretreated meat into the equipment hopper, and the internal screw pushes the material at a uniform speed to prevent the meat from caking and hanging overhead, and stably fills the meat into the cavity of the molding die. Depending on the pressure provided by the die stamping mechanism, the loose meat is compacted and pressed into patties with uniform thickness and shape. After stamping, the die is opened and closed, and the finished product is automatically demoulded and dropped out of the equipment. The whole process is continuously circulated, which can meet the needs of large-scale uninterrupted patties forming and processing in the factory.
Product advantages
High Productivity
OrangeMech patties forming machine has stable output efficiency and can produce thousands of products per hour. It can adapt to the mass order production of fast food restaurants, distribution centers and food factories in different scenes, and meet the needs of high-intensity processing.
Mold Changing Is Efficient
Only by directly changing the mold, different styles of products can be switched and produced without complicated debugging; The whole machine is made of food-grade stainless steel, which is easy to assemble and disassemble and easy to clean, thus greatly reducing the waiting time for changing production.
Precise Control
Only by directly changing the mold, different styles of products can be switched and produced Patty forming machine patties molding machine can flexibly adjust the product weight and molding thickness, and single and double modes can correspond to different product thickness ranges. After press molding, the thickness of finished products is uniform and the consistency of products is high, which ensures the uniform appearance specifications of mass-produced products.
Worry-Free Operation
The whole process of filling, molding and output can be automatically completed by directly putting raw materials into the bucket, with high degree of automation and reduced manual intervention; The whole machine runs stably and is suitable for fast food restaurants, distribution centers and food factories to run continuously for a long time.
Product parameter
| Item | Specification |
| Output | 2100PCS/H |
| Hopper Capacity | 25L |
| Power | 0.55KW |
| Power Supply | 380V, 50HZ (Customizable) |
| Discharge Height | 850±50MM |
| Overall Dimension | 950*600*1530 MM |
| Max. Product Diameter | ≤100MM |
| Single mold Product Thickness | 6～18MM |
| Dual mold Product Thickness | 6～12MM |

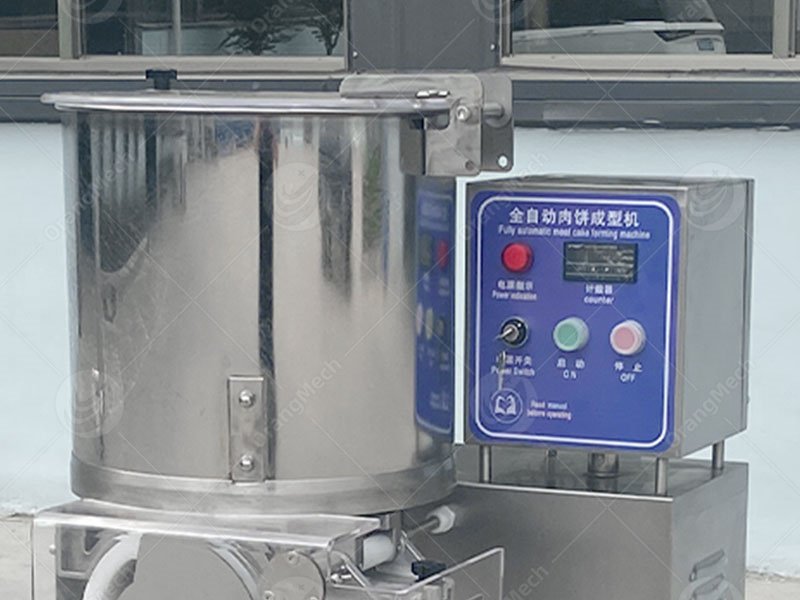

Stainless Steel Body
The main body of the whole machine is made of food-grade stainless steel, which is strong and corrosion-resistant, and can adapt to the humid working conditions of food workshops. Surface polishing treatment, not easy to accumulate residue, no sanitary dead angle, convenient cleaning and wiping, in line with food processing hygiene standards.

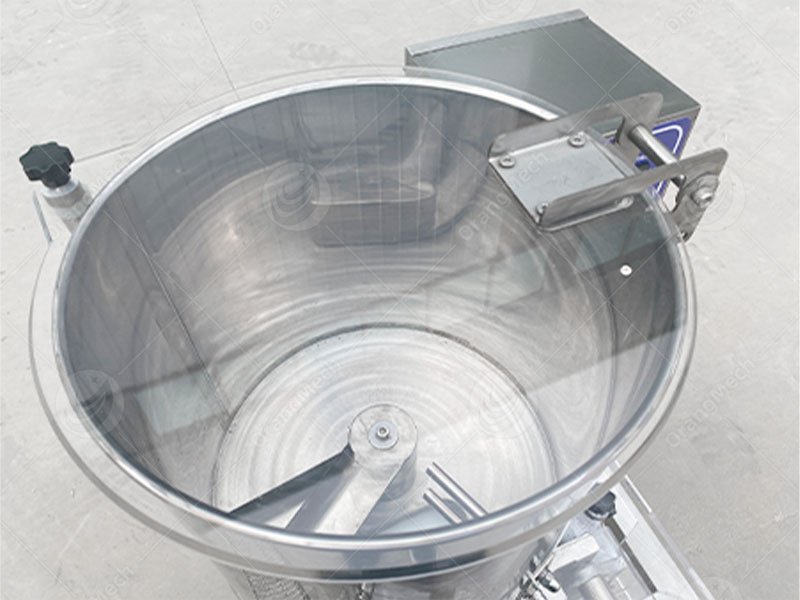

Mixing Bucket
Equipped with a large-capacity stainless steel bucket, it can store more raw materials to be processed and reduce the frequent feeding operation in the production process. The material barrel is easy to disassemble and assemble, which is convenient for thorough washing, continuously and stably conveying materials and ensuring efficient and continuous operation of equipment.

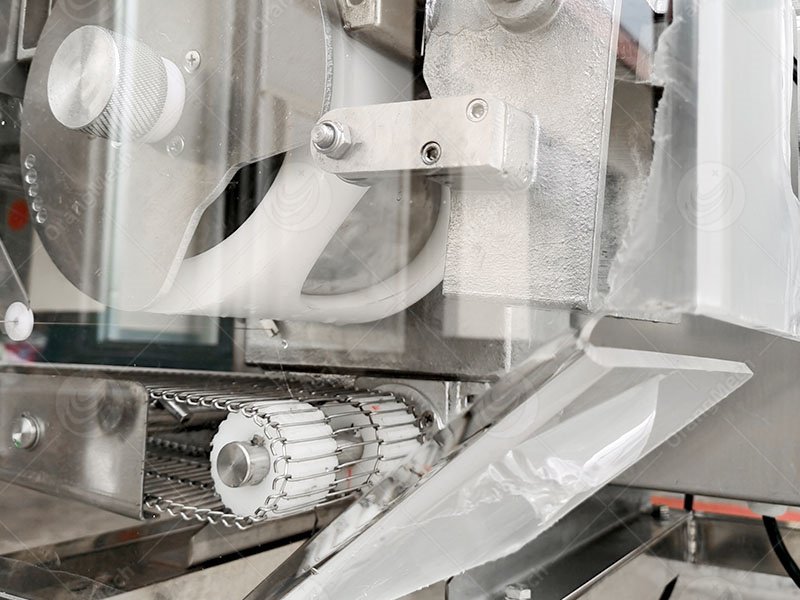

Automatic Functions
Patty forming machine can automatically complete the whole process of raw material filling, press forming and finished product discharging. Only the pretreated materials need to be put into the bucket, and there is no need for manual filling and cake pressing, which reduces manual participation and reduces the hidden danger of material pollution caused by human contact.

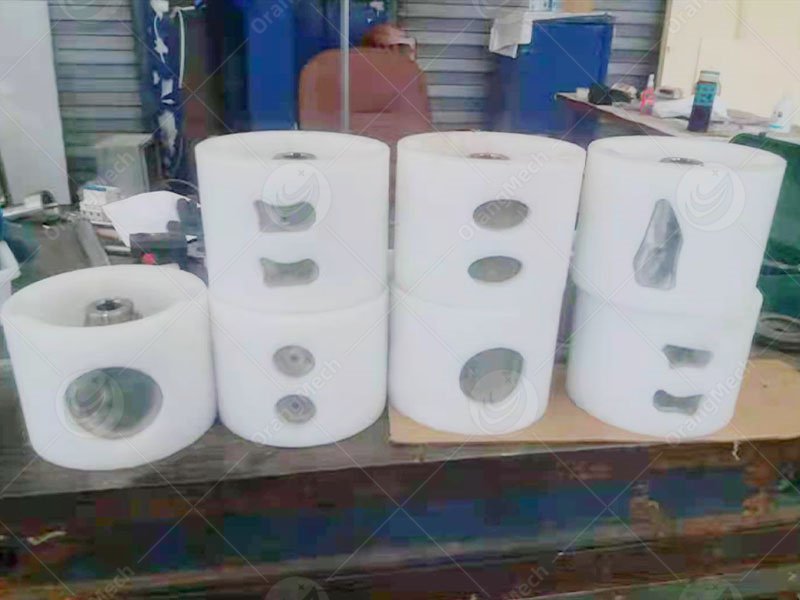

Product Diversification
Using a scraper, it is convenient to observe the By changing the molds of different styles, meat products such as hamburger patties, chicken nuggets and various vegetable cakes can be produced. Support custom-made special molds, and one device can realize the processing and production of a variety of products with different shapes.

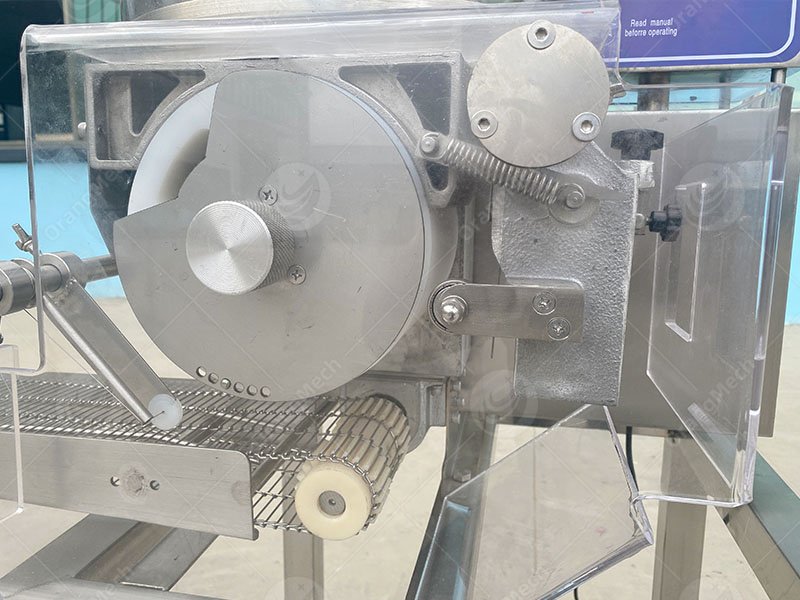

Bottom Sticker Feature
It comes with a sticker mechanism at the bottom of the meat pie, which automatically pads the bottom of the meat pie with release paper during production. The finished product is directly output after the paper padding is completed, which avoids the patties from sticking to each other, facilitates the subsequent quick-freezing stacking and packaging procedures, and saves the workload of manual paper padding.

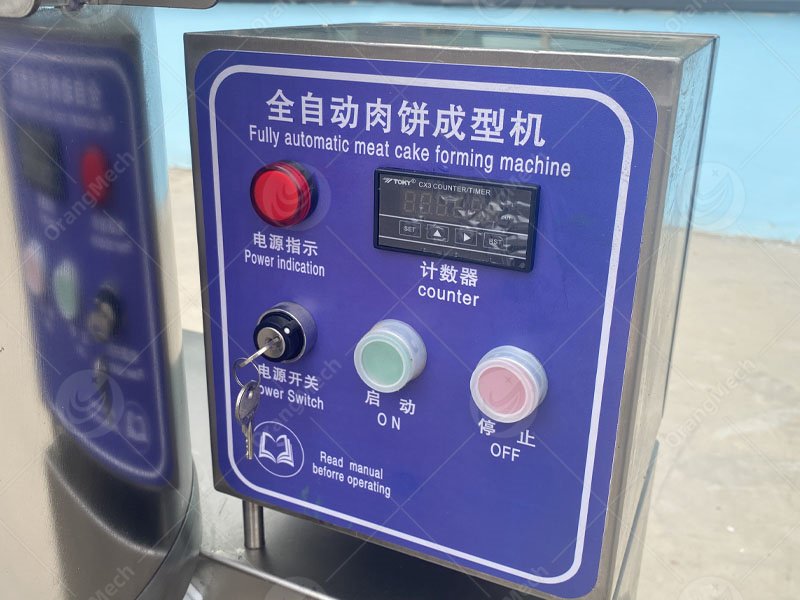

Counter Setting
The equipment has its own counter, which can count the number of finished products and facilitate on-site production management. The thickness and weight of the product can be adjusted as required, which is suitable for different production modes of single mode and double mode. The whole machine is simple to operate and safe and reliable to run.
Product application
◉ Fast Food Prefabrication Factory：Burger patty machine can be used not only for hamburger patties, but also for batch processing of fast food ingredients such as fried chicken nuggets. The equipment is continuously and automatically output, and the finished product specifications are unified, providing standardized prefabricated ingredients for chain fast food.
◉ Central Kitchen And Catering Enterprises：
Patty forming machine can meet the production requirements of group meals and ready-to-eat semi-finished products, and can process a variety of products, such as steak and mixed vegetable cakes. It is flexible in mold changing, suitable for the production of multi-category semi-finished products, and stably completes the production of large quantities of catering ingredients.
◉ Quick-frozen Food Production Enterprises：The production of frozen products such as quick-frozen meat pies and vegetarian cakes has the function of backing paper at the bottom to prevent the products from sticking, and the formed products can be directly sent to the quick-freezing process to improve the processing efficiency of the whole quick-frozen food production line.
Shrimp Cake
Chicken Patty
Popcorn Chicken
Beef Patty
A1: We can produce hamburger patties, chicken nuggets, fish cakes, mixed cakes of meat and vegetables, vegetarian cakes and other products. We can switch product styles by changing different molds, and support customers to customize special molds.
A2: Yes. The whole machine has stable structure and is suitable for continuous production in the factory; The continuous supply of raw materials can be continuously formed, which is suitable for large-scale processing in prefabrication plants and quick-freezing plants.
A3: The power supply supports customization, and the conventional standard is 380V 50HZ. The voltage specification can be adjusted according to the local working conditions of customers.
