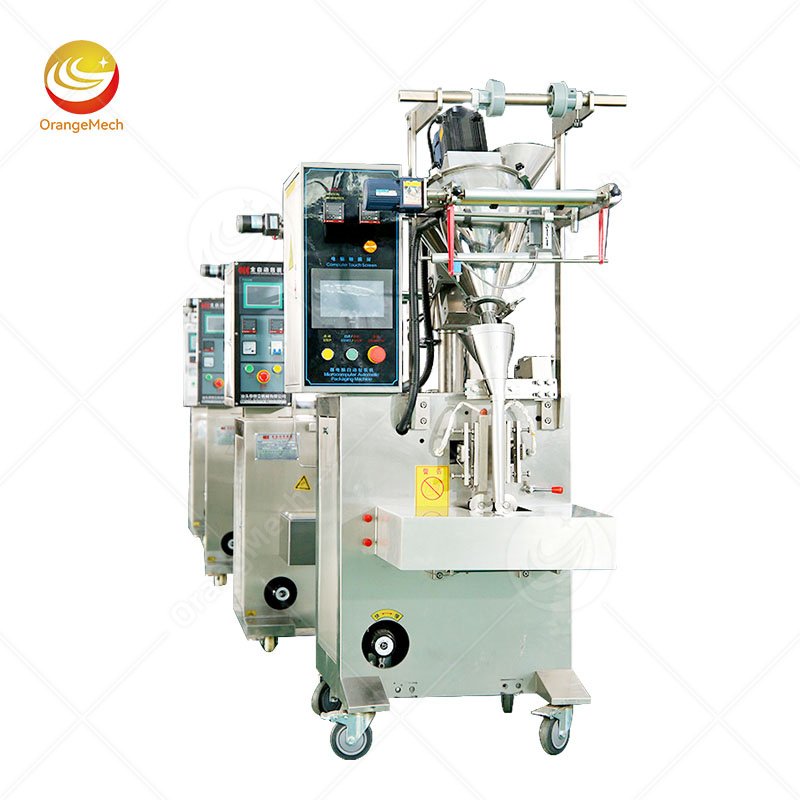

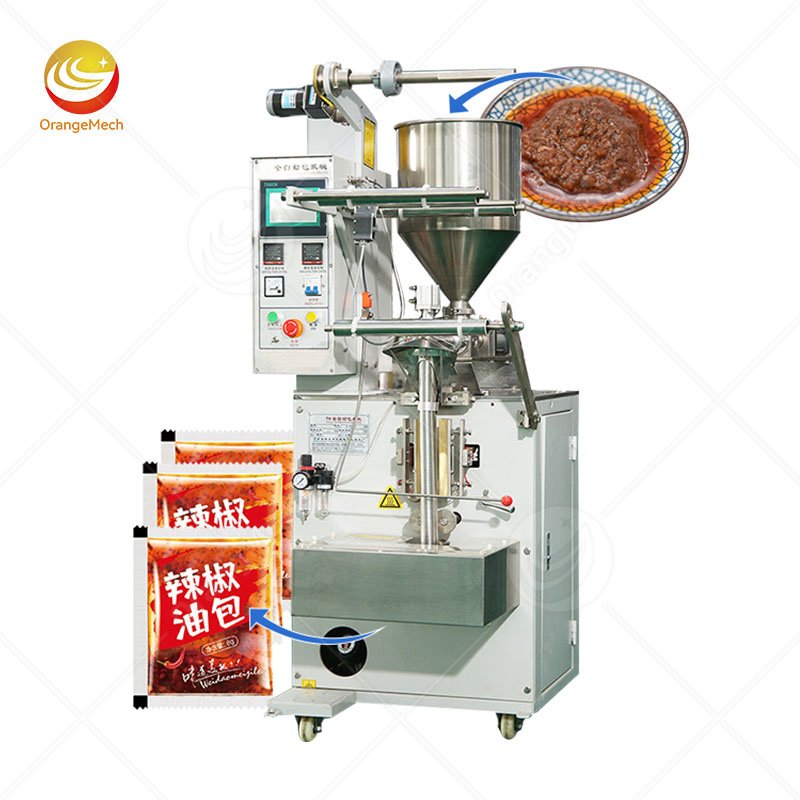

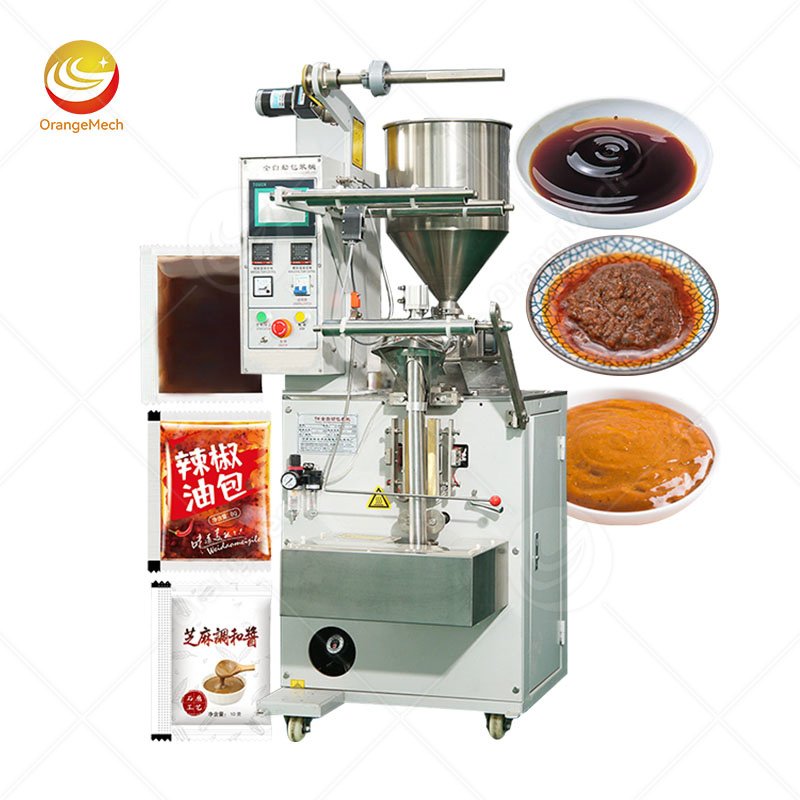

The Sauce Packaging Machine mainly relies on the synergy of the extrusion system and the packaging system: firstly, the operator pours the sauce material into a large-capacity storage bin. Then, through a high-pressure cylinder, the sauce is precisely extruded and smoothly pushed to the packaging area. Next, the packaging film is guided by the mechanical structure and undergoes precise vertical and horizontal sealing processes to complete the bag formation, filling, and sealing in one go. This design combining pneumatic extrusion and automated sealing ensures that high-viscosity sauces do not sag or get clogged throughout the packaging process. If you are looking for a high-performance sauce packaging machine, this equipment can significantly enhance the efficiency of your workshop.
Product Advantages
Precise Volume Measurement
The volumetric measurement structure used by OrangeMech’s sauce pouch packing machine can precisely control the filling volume of pastes and sauces, ensuring a consistent weight for each bag.
Reducing Labor Costs
From feeding, metering, bag making to filling and sealing, the entire process is fully automated, providing an efficient automated solution for food production lines.
High Stability & Consistency
The machine runs smoothly without errors, supports continuous production, and the packaging formation effect is more stable, with higher quality, helping sauce processing factories easily achieve cost reduction and efficiency improvement.
Easy Cleaning
The entire machine is made of high-standard 304 stainless steel, meeting strict food hygiene requirements, with a flat structure, and is extremely convenient for cleaning and daily maintenance.
Multi-Bag Type Compatibility
The machine size is 2014*1574* 2095 mm, and the total weight is 400 kg. It can not only well adapt to different viscosities of pastes, but also be compatible with gusset bags, premade bags, stand-up bags, and spout bags, etc.
Sealing Tightly to Prevent Leakage
Using a combination of heat sealing and pressure sealing technology, the seal is firm and neat, eliminating bag burst and sauce leakage. Equipped with a powerful motor, it can achieve efficient packaging at a rate of 10–50 bags/min.

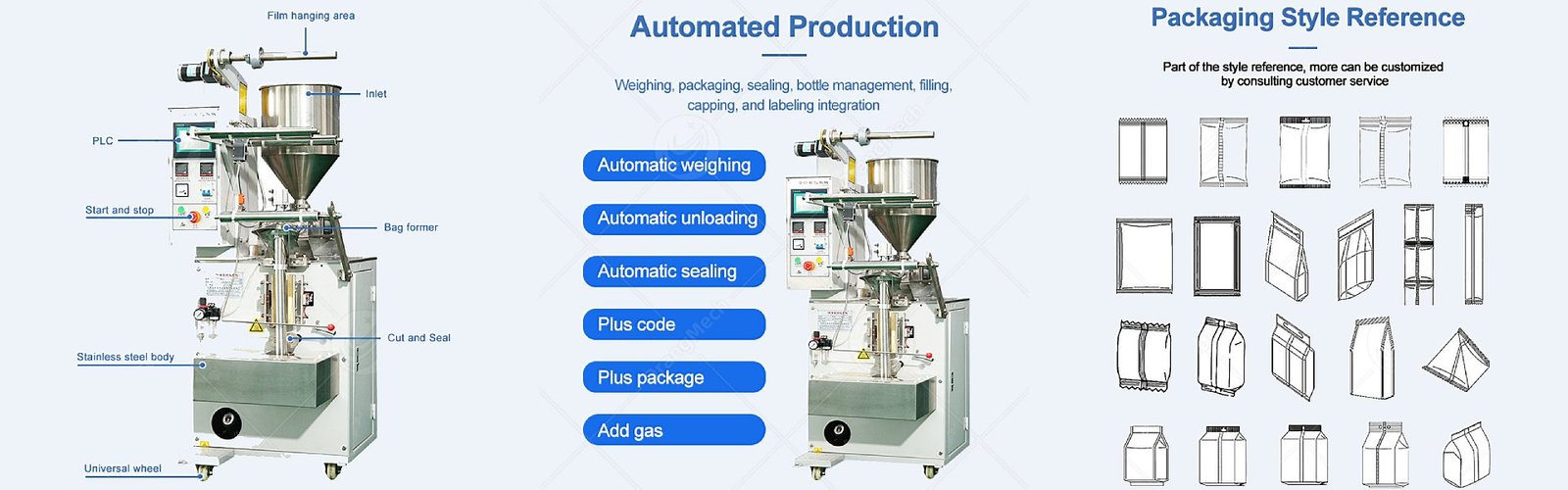

Sauce Packaging Machine Structure
Product Parameter
| Weight | 400KG |
| Brand Name | Orange Mech |
| Voltage | 220V/380V |
| Warranty | 1 Year |
| Packaging Type | Gusset Bag, Premade Bag, Stand-Up Bag, Spout Bag |
| Packaging Material | Stand-Up Pouch, Bags, Pouch |
| Packing Type | Plastic |
| Packing Speed | 10-50 Bags/MIN |
| Machine Type | Automatic Bag Forming Filling Sealing Machine |
| Place of Origin | Henan, China |
| Driven Type | Electric |
| Dimension | 2014*1574*2095MM |
| Core Components | Motor |
| Material | 304 Stainless Steel |
| Application | Food, Beverage, Chemical |
| Automatic Grade | Automatic |
| Packing Material | Plastic Film |
| Suitable For | Liquid Viscous Products |
Product Application
◉ Sweet sauce packaging scenario: For sauces with high viscosity and slow flow, traditional manual filling is prone to contamination and weight deviation. OrangeMech’s hot sauce packaging machine is equipped with a strong cylinder extrusion system, which can easily handle high-viscosity sauces.

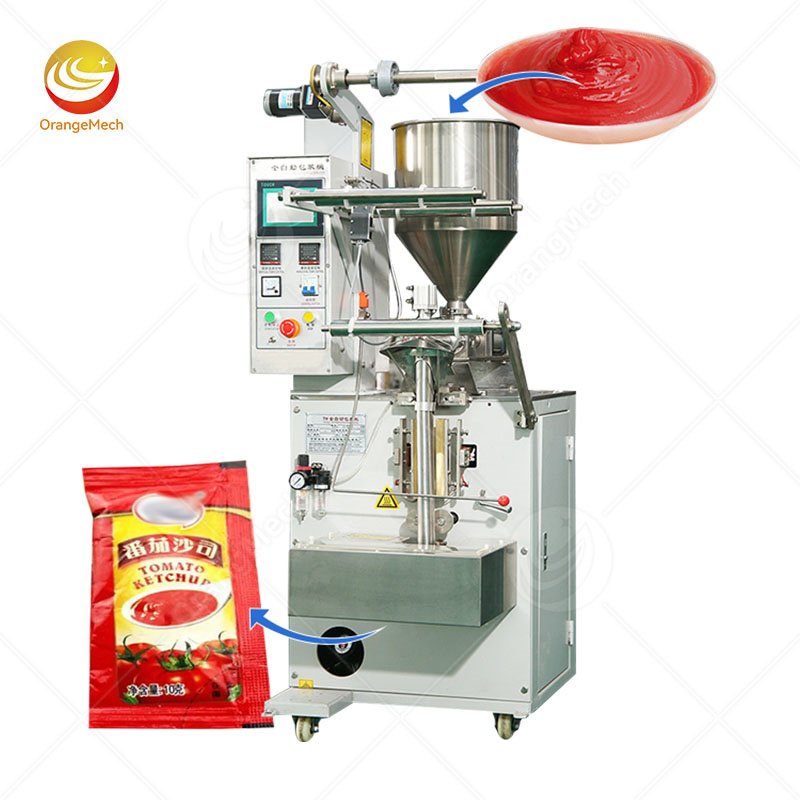

◉ Tomato sauce packaging scenario: Tomato sauce has extremely high requirements for the packaging material’s resistance to acids and alkalis and its sealing performance. The sauce pouch packing machine is made of corrosion-resistant food-grade materials, combined with a sturdy heat sealing structure, ensuring no leakage or oxidation during high-speed packaging.

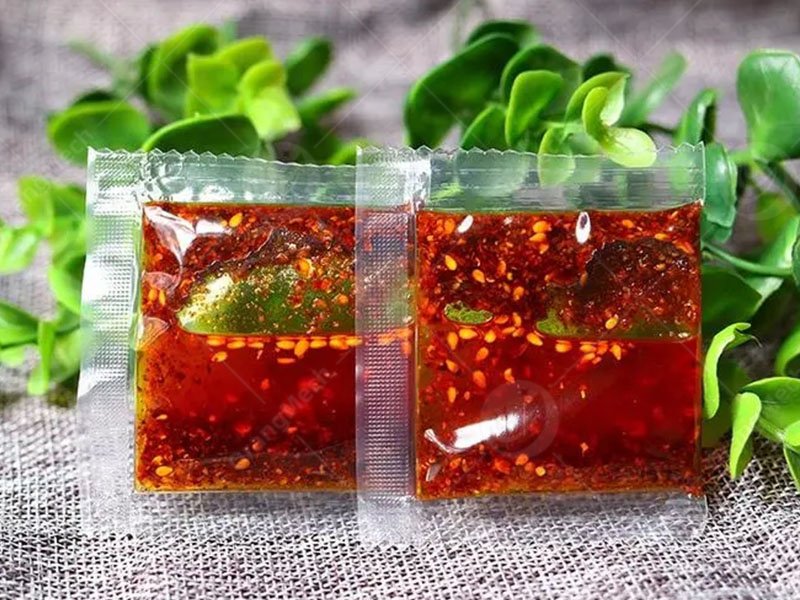

◉ Instant noodle sauce packet packaging scenario: Convenience noodle sauce packets usually contain oil-water mixtures or granular sauces, requiring a high degree of flatness in the seal. The equipment’s horizontal and vertical sealing mechanisms can precisely avoid residual sauce, ensuring excellent sealing of each bag of convenience noodle sauce. Introducing this efficient hot sauce packaging machine into your factory can significantly improve the production line automation level of noodle ingredient packets.
FAQ
Yes, thick sauces like sweet sauce and instant noodle sauce containing oil particles can be perfectly packaged, and the conveying is smooth, precisely quantified, and applicable over a wide range.
Yes. The voltage of the machine can be selected as either 220V or 380V. OrangeMech offers standard OEM/ODM deep customization services. All you need to do is inform us of your requirements.
The operation is simple. OrangeMech provides an official one-year warranty service for the entire machine. The equipment undergoes strict testing before leaving the factory, and it comes with detailed installation instructions and video tutorials. The after-sales team is always online to solve technical problems to ensure the smooth operation of your production line.
