After putting the prefabricated packaging bags into the feeding station, the mechanical sucker bag clamping mechanism will clamp each packaging bag one by one and transport it to each station on the production line. Next, the machine will automatically open the packaging bag and send a signal to the feeder to make it accurately measure the products and put the materials into it. After filling, the double heating sealing pliers will tightly lock the bag mouth to form a leak-proof seal, and the finished product will be discharged smoothly through the discharging mechanism.
Product Advantages
Health and Safety
Stand up pouch packing machine is made of high-quality 304 stainless steel with a weight of 1,700 kg, which fully meets the national food machinery safety and hygiene standards. It is easy to clean, wash and maintain and has a long service life.
Steady Operation
Stand up pouch packing machine is made of high-quality 304 stainless steel with a weight of 1,700 kg, which fully meets the national food machinery safety and hygiene standards. It is easy to clean, wash and maintain and has a long service life.
Steady Operation
Full mechanical cam transmission and high reliability premade pouch packing machine adopts full mechanical cam transmission. Compared with the precise pure electronic drive device, Premade Pouch Packing Machine has the advantages of very stable positioning, reliable continuous operation and simple maintenance.
Suitable for Multi-Specification Packaging Bags
One machine can handle various specifications of packaging bags, the length of which is 150-300 mm and the width is 80-200 mm. You can easily switch the types of packaging bags: organ bag, prefabricated bag, self-standing bag and suction nozzle bag, so that you can realize real multi-specification flexible packaging on a production line.
High Degree of Automation

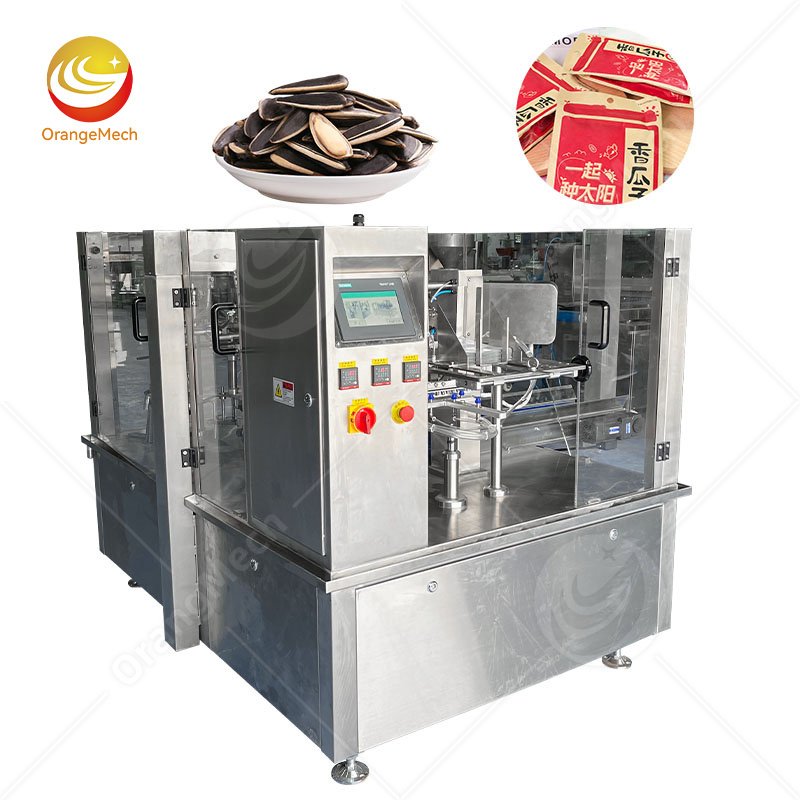

Doypack packing machine adopts electric drive and automatic platform design, which can replace the slow manual packaging line. It can reduce the dependence on labor force, improve production efficiency, and reduce the long-term operating costs of growing small and medium-sized enterprises and large enterprises.
Product Parameter
| Weight | 1700KG |
| Brand name | Orange Mech |
| Application | Food, Beverage |
| Warranty | 1 Year |
| Bag type | Gusset Bag, Premade Bag, Stand-up Bag, Spout Bag |
| Bag length | 150-300MM |
| Packing type | Stand-up |
| Control system | PLC+Servo+Touch Screen |
| Place of origin | Henan, China |
| Driven type | Electric |
| Dimension | 1700*1570*1650MM |
| Core components | Motor |
| Material | 304 Stainless Steel |
| Bag width | 80-200MM |
| Automaticity | Fully Auto |
| Feeding System | Customer Customized |

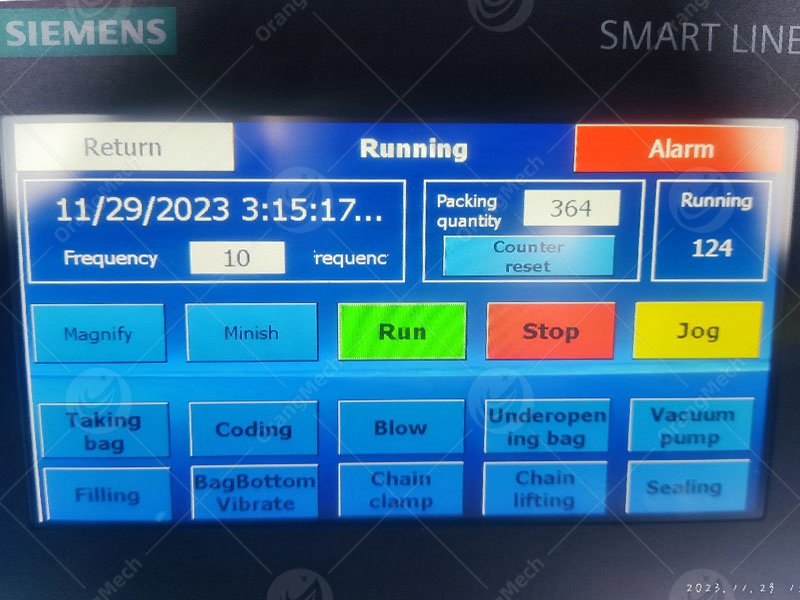

PLC Touchscreen Control Panel
Bilingual language can be set in Chinese and English, and all functions can be clearly laid out. It is convenient for operators to get started quickly, and the setting parameters are also convenient to adjust.

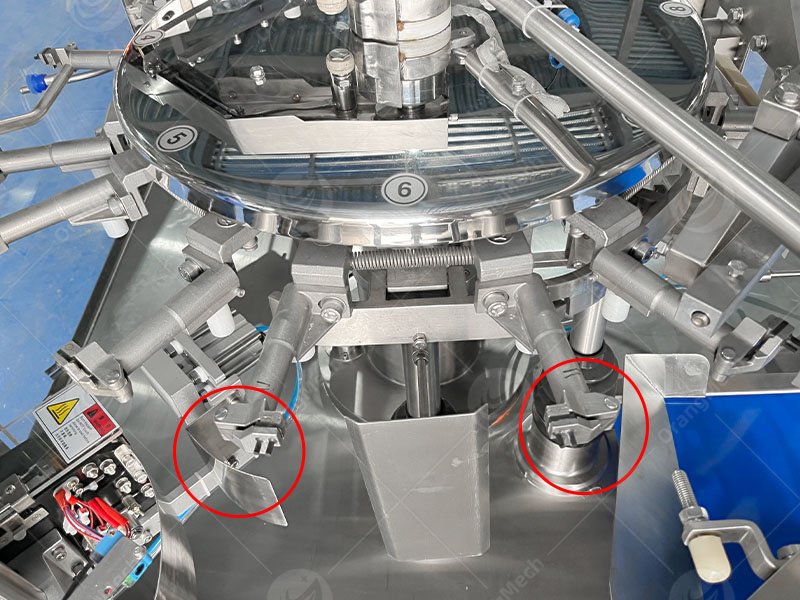

Flexible Feeding System
You can adjust the bag width with one button according to the product material, powder, liquid or solid, you want to fill, and it only takes a short time to replace the product.

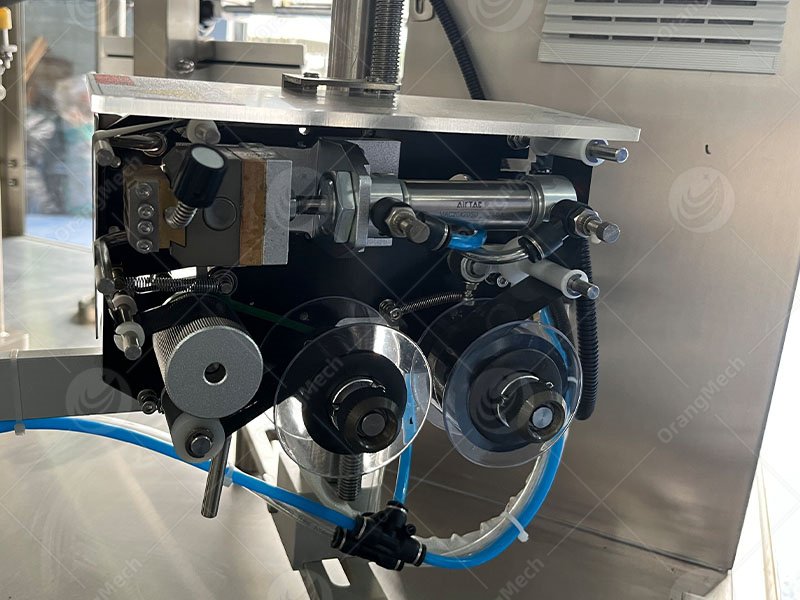

In-Line Coding Unit
Integrated online date printer, with simple thread adjustment, can quickly locate the printing position. If you need it, you can also install a laser or inkjet editor according to your needs.

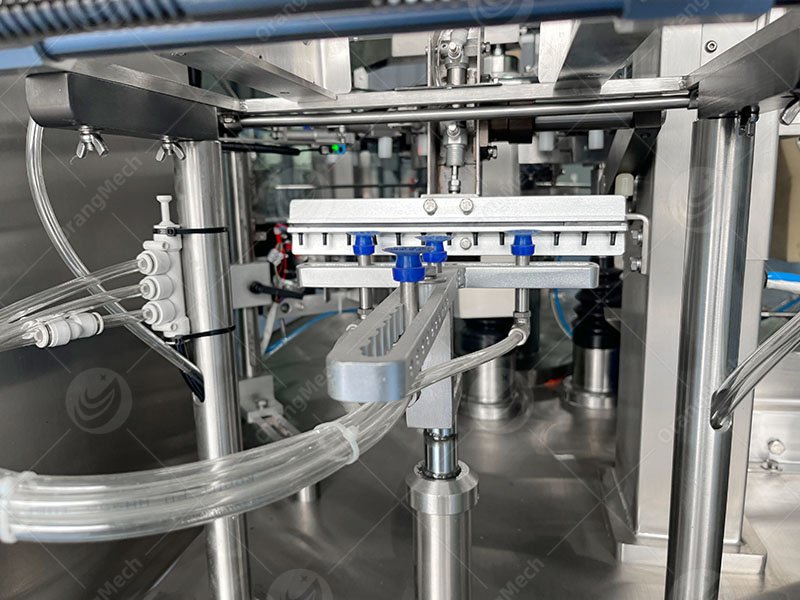

Silicone Vacuum Suction Cups
Using a scraper, it is cThe sucker OrangeMech is made of high-grade cut silicone. High heat resistance, good flexibility, convenience and durability, and can firmly seal each packaging bag.

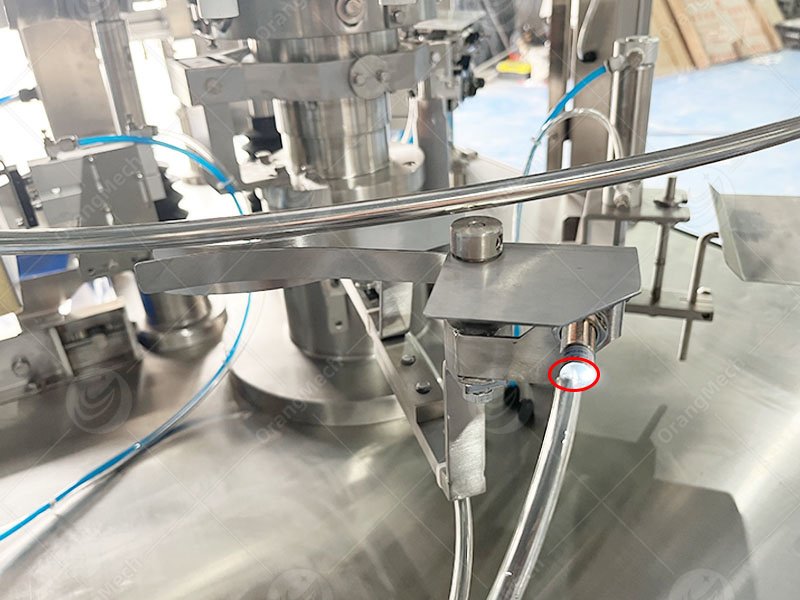

Photoelectric Material Inspection
There is a photoelectric sensor in front of the sealing machine. It is convenient to check whether the packaging bag is full, prevent the empty bag from sealing and avoid wasting packaging materials.

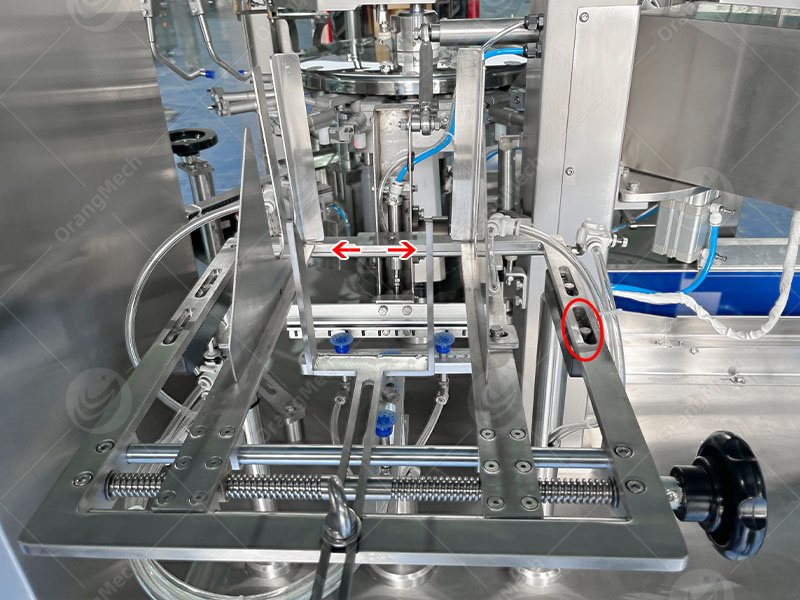

Threaded Rod Bag-Loading Station
The feeding frame of the packaging bag is equipped with a precise thread adjusting rod, which can quickly and manually adjust the width, mainly adapting to the different sizes of bags.

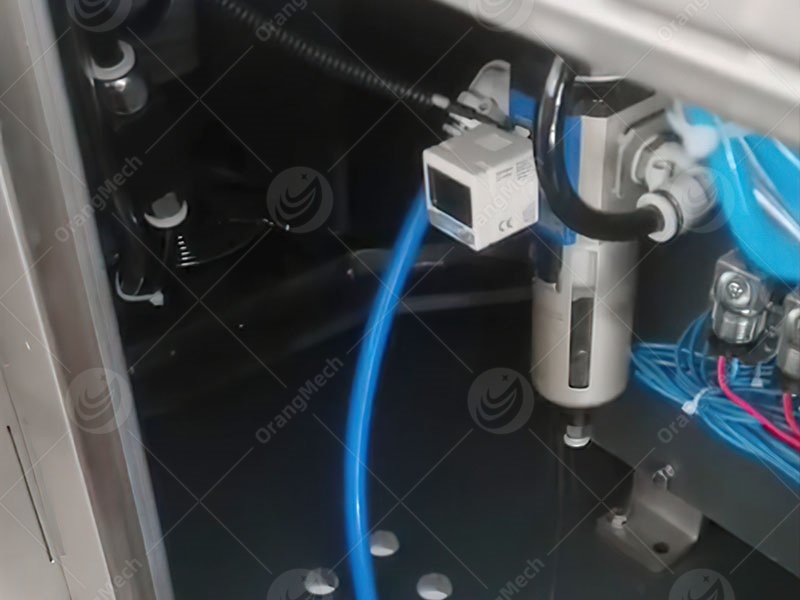

Air Filtration and Purification Unit
Directly installed on the pneumatic inlet pipeline to ensure that clean and impurity-free compressed air enters the machine, protect the pneumatic valve and prolong the service life of the parts.
Product Application
◉ Food and Beverage Processing Industry: Widely used in nuts, snacks, dried fruits, beverages, etc., premade pouch packing machine is needed for packaging. Self-standing bags have a beautiful appearance and are more suitable to be placed on shelves. As long as they are food processing plants that prefabricate bags, they can realize automatic packaging.
◉ Pharmaceutical and Agricultural Industries: Whether it is powder, granular seeds or fertilizer, it needs sealed packaging with high requirements for cleanliness and hygiene. Your filling materials can be satisfied, and the sealing degree can cope with daily sales.
◉ Health Products: Nutritional supplement granules and powders need accurate dosage and reliable sealing. Stainless steel shell and precise filling process help you achieve consistent packaging standards.
