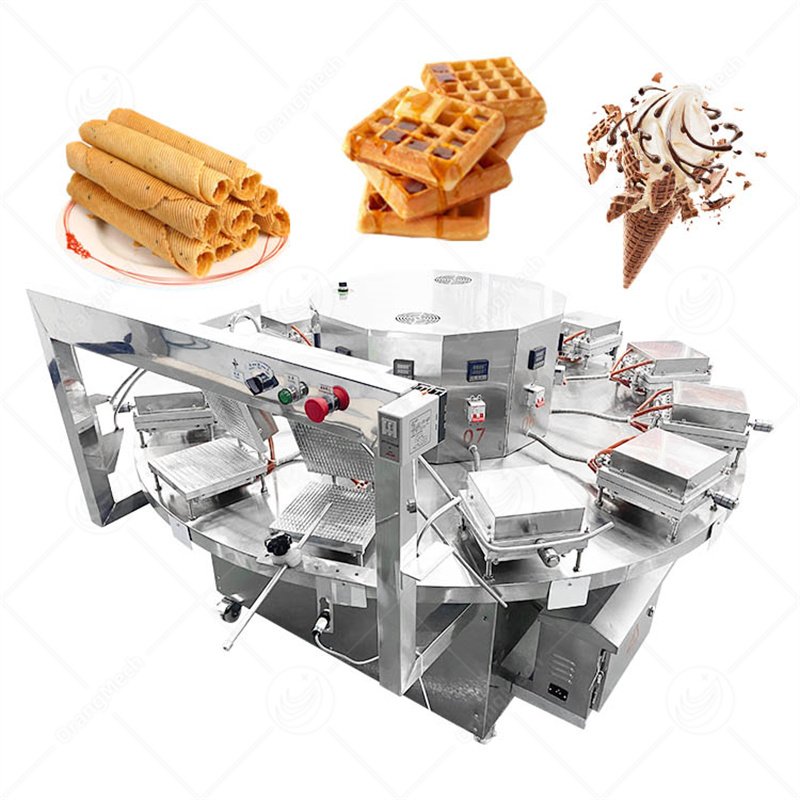

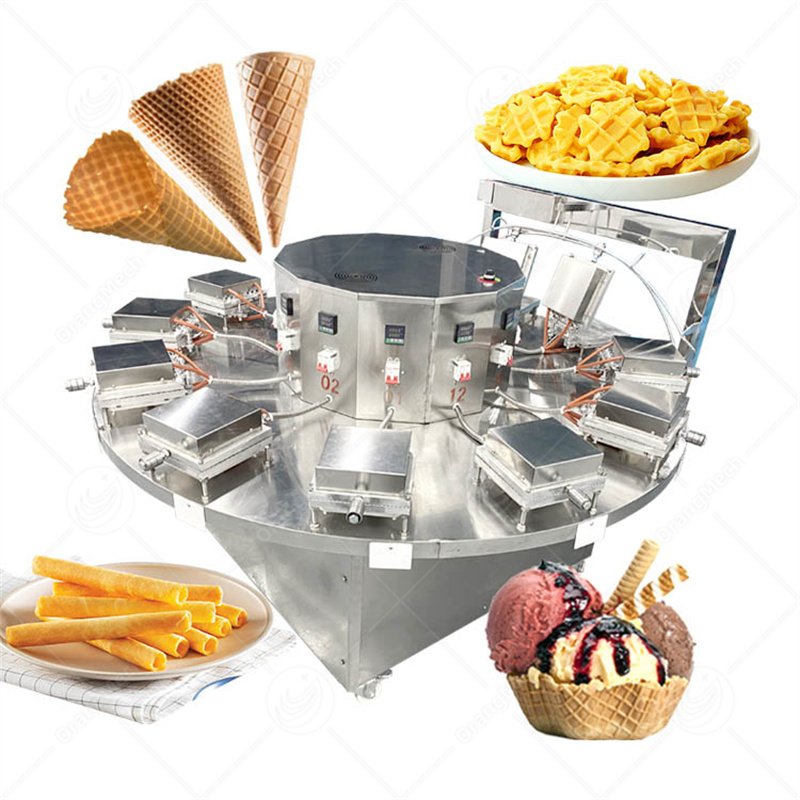

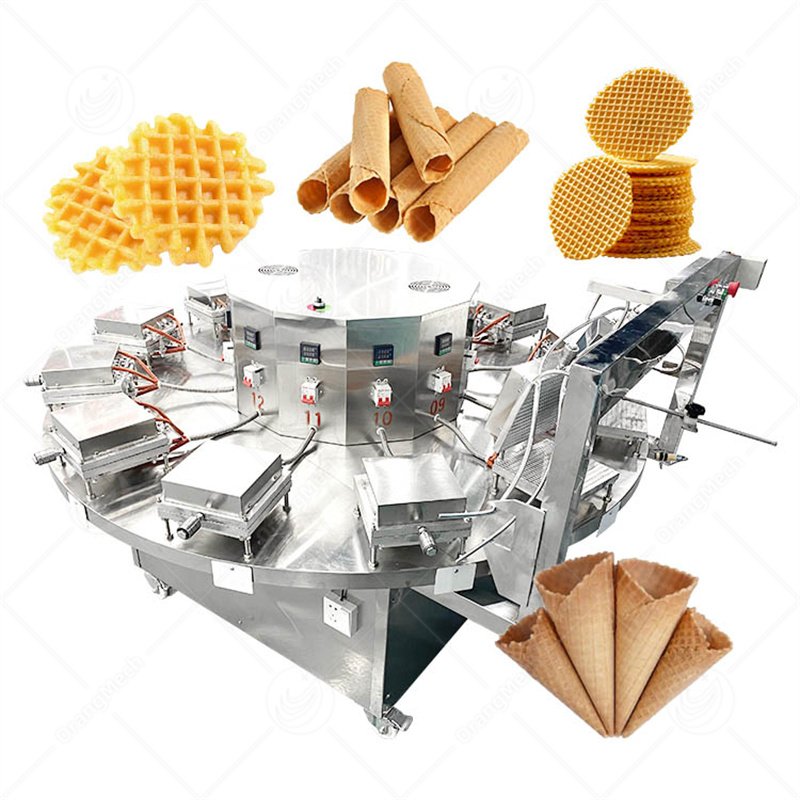

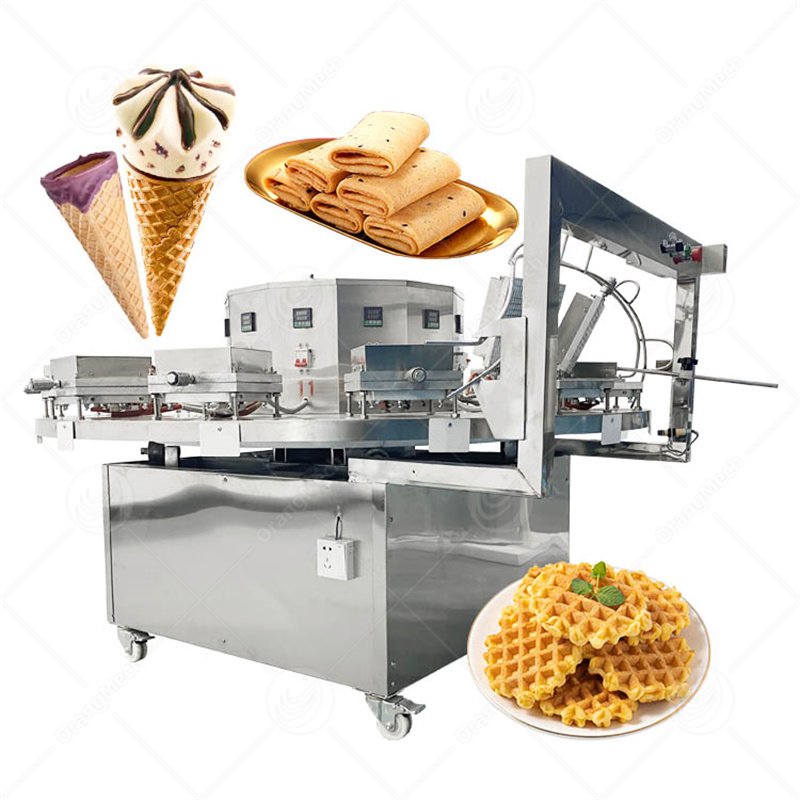

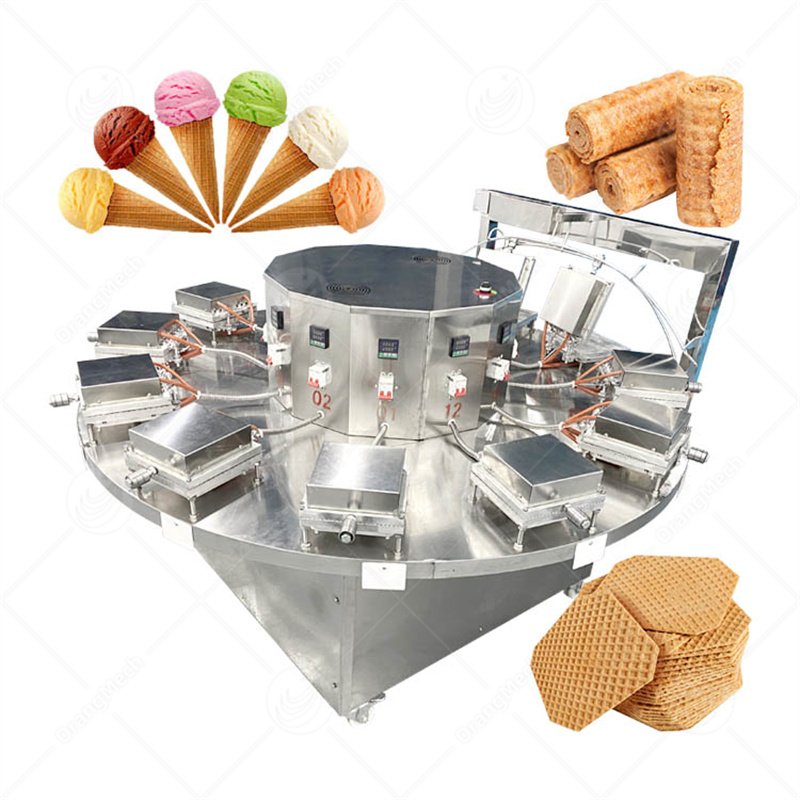

The working principle of OrangeMech’s ice cream cone-making machine equipment in the workshop: First, the prepared batter is accurately fed into the heating plate by a special metering pump. When the main system rotates, the top heating plate will automatically close to the preset disc thickness. After baking under uniform heating, the batter forms a hot, plastic sheet. Subsequently, the operator directly sends the freshly baked sheet into the roller mold to form the finished product. After cooling and demoulding, the finished product can fall off the output line smoothly. You can choose the heating mode: electric heating is cleaner and more convenient to control. If the production capacity is large and you want to reduce the operating cost, you can switch to gas heating. Either way, the process is the same, but the fuel is different.
Product Advantages
Fully Automatic Cycle
The feeding, mold closing, mold opening, and heating of the waffle roll machine all run independently, which can increase the number of cones produced per hour without extra labor.
Multi-Model Optional
The electric heating model provides power options of 10KW, 14.5KW, 19KW, 23KW and 28KW, which can match different mold numbers. If you want to achieve lower operating costs under high output, there is also a gas heating method, which is more economical and efficient.
High-Yield Electronic Control Configuration
The output is specially designed for actual production capacity. Our output ranges from 400-1200 units per hour, which is the most ordered capacity in the market. Of course, if you want to have higher output, OrangeMech can customize the appropriate equipment size according to your bulk purchase and order quantity.
Adjustable Thickness
The thickness and size of ice cream cone-making machine pancakes can be completely adjusted, ranging from 0.5 to 4 mm in thickness and from 7 to 20 cm in width – just adjust the die and cylinder stroke, and the same machine can switch between different cone styles.
Food Grade Alloy Plate
The baking tray is made of food-grade 6061 aluminum alloy. It has excellent corrosion resistance and high structural toughness, and can prevent plate deformation during long-term production. In the long run, it really saves costs.
Product Parameter
| Project Name | Specifications |
| Heating Mode | Electric Heating |
| Mold | (6/9/12/15/18) |
| Power | (10KW/14.5KW/19KW/23KW/28KW) |
| Dimensions (CM) | (140*140*125/ 160*160*125/ 170*170*125/ 180*180*125/ 190*190*125) |
| Weight | (250KG/270KG/300KG/330KG/360KG) |
| Output | (300 PCS / 400–600 PCS / 600–800 PCS / 800–1000 PCS / 1000–1200 PCS) |
| Wafer Thickness (MM) | 0.5–4 |
| Wafer Dimensions (CM) | 7–20 CM |
| Voltage | 220V/380V |
| Frequency | 50/60HZ |
| Equipment Type | Single-Head Forming Machine/ Single-Head Forming Machine/ Double-Head Forming Machine/ Double-Head Forming Machine/ Double-Head Forming Machine/ |
| Project Name | Specifications |
| Heating Mode | Gas Heating |
| Mold | (9/12/15/18) |
| Dimensions (CM) | (185*185*170/ 195*195*170/ 205*205*170/ 215*215*170) |
| Weight | (450KG/550KG/650KG/750KG) |
| Production Capacity | (400–600 / 600–800 / 800–1000 / 1000–1200 Units) |
| Wafer Thickness (MM) | 0.5–4 |
| Wafer Dimensions (CM) | 7–20 |
| Natural Gas Consumption (Per Hour) | (0.6 M³ / 0.8 M³ / 1.1 M³ / 1.4 M³) |
| LPG Consumption (Per Hour) | (0.9KG/1.2KG/1.6KG/2KG) |
| Equipment Type | Single-Head Molding Machine Double-Head Molding Machine Double-Head Molding Machine Double-Head Molding Machine |

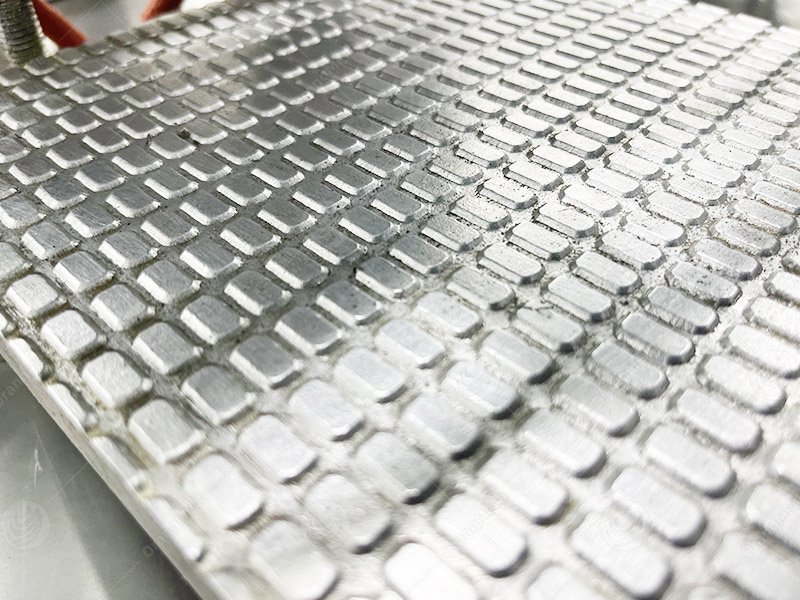

Baking Plate (Baking Surface)
The automatic ice cream cone making machine baking tray has a customizable surface texture and three-dimensional size. Made of high-quality alloy, it ensures that each batch can be heated evenly on the waffle maker.

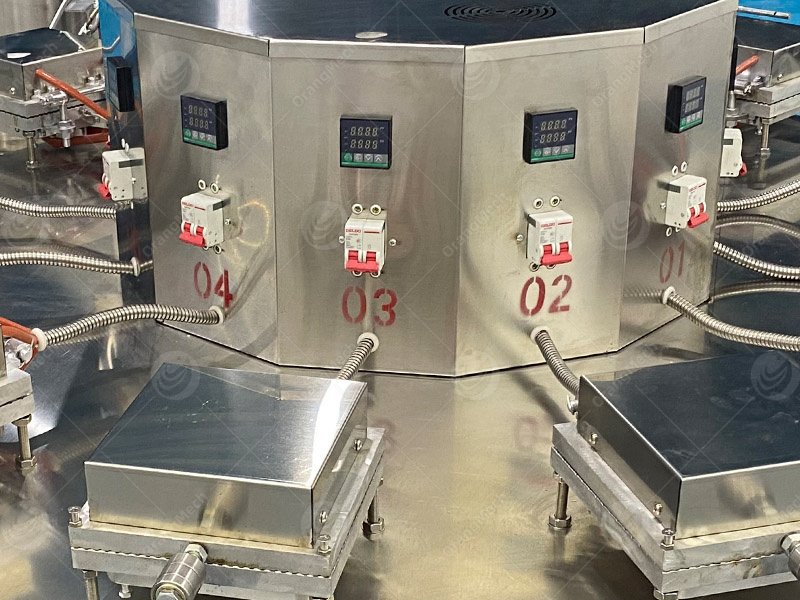

PLC Program and Independent Temperature Control
Take full control of your baking process. The centralized PLC system enables operators to manage independent temperature zones in a multi-disk configuration to ensure temperature stability during long-term work.

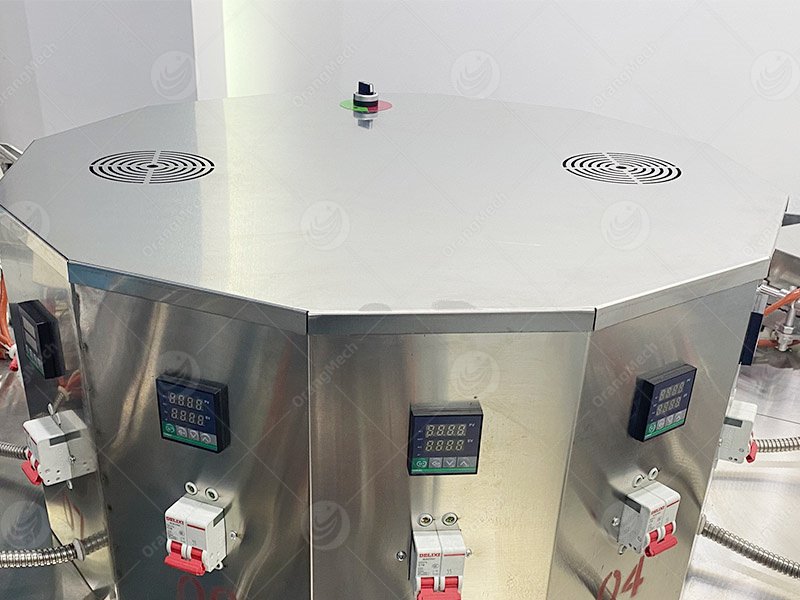

Multi-fan Cooling System
Equipped with multiple automatic hot air channels, the cabinet can quickly discharge internal heat while keeping the external side plates well insulated, ensuring safety and the comfort of operators.

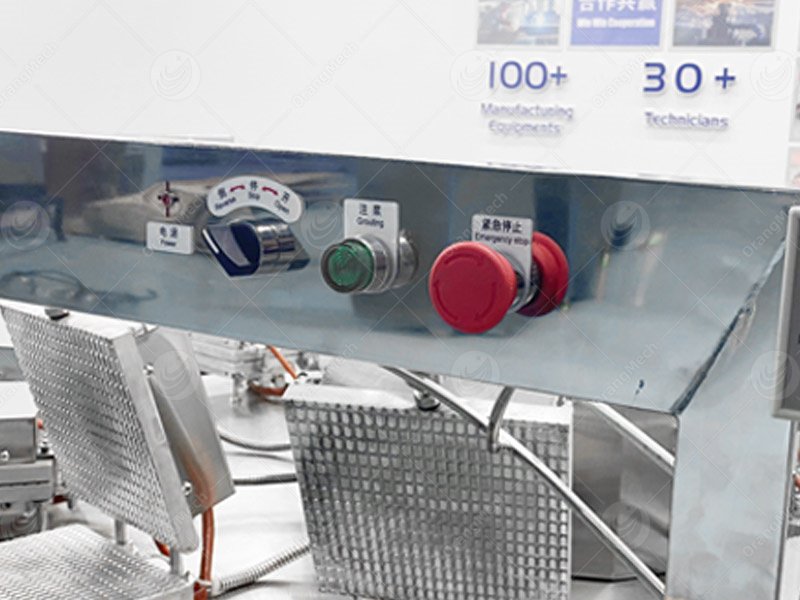

Direct Control Panel
Specially designed to reduce the learning curve, the intuitive control panel enables your floor operators to quickly adjust parameters without receiving a lot of technical training.
Product Application
◉ Ice cream shop and cone factory:
If you supply food wholesalers or dairy chain stores, this high-speed ice cream cone making machine can provide stable baking time and reliable mechanical performance, and realize mass production of crisp sugar cones, waffle cones, and special ice cream coatings.
◉ Commercial bread and snack production line:
Specially designed for snack manufacturers seeking flexible customized solutions, the waffle roll machine can easily process traditional egg rolls, multi-grain rolls, sweet rolls, and crispy seasoning rolls. The raw materials include sesame seeds, bananas, red beans, or sorghum flour.
◉ Dessert and frozen food packaging:
It is suitable for special food processing enterprises that supply waffle bowls, pie rolls, or phoenix egg rolls to the retail market. An automatic ice cream cone-making machine is used to make cones with different formulas, and we will tailor the solution according to your formula and mold shape.
