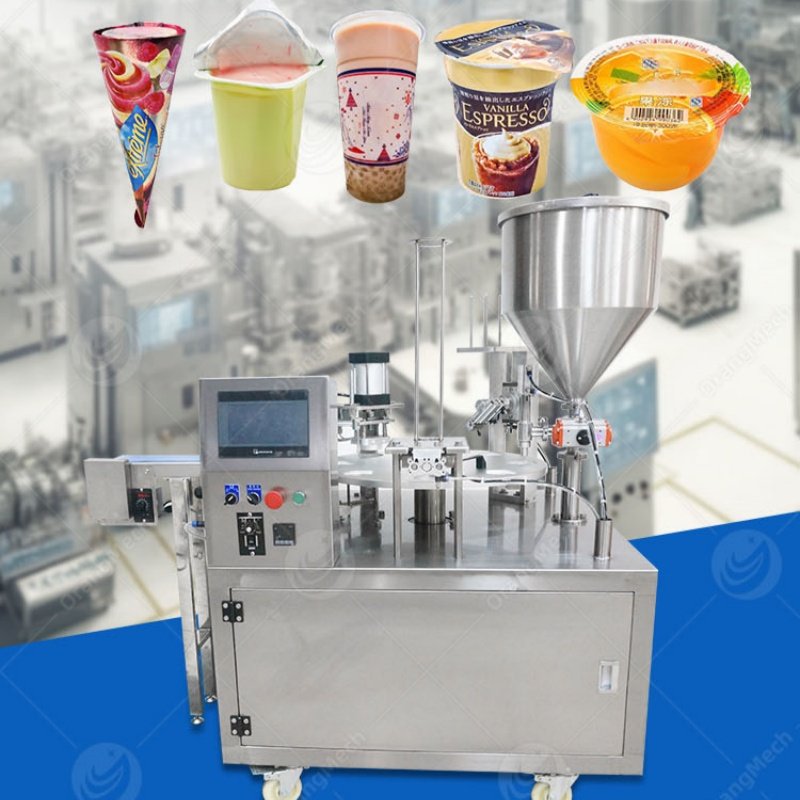

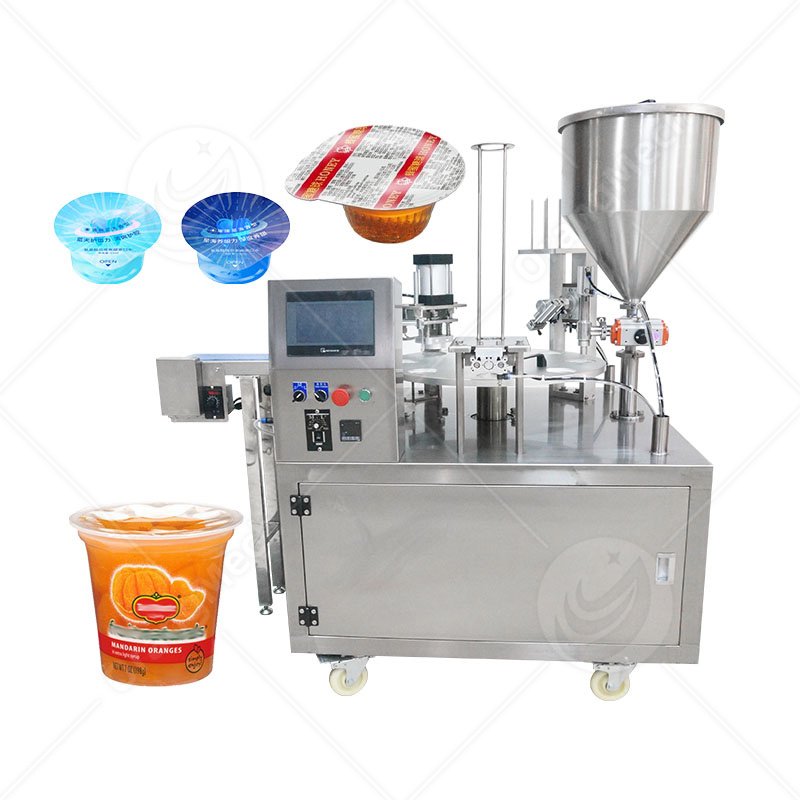

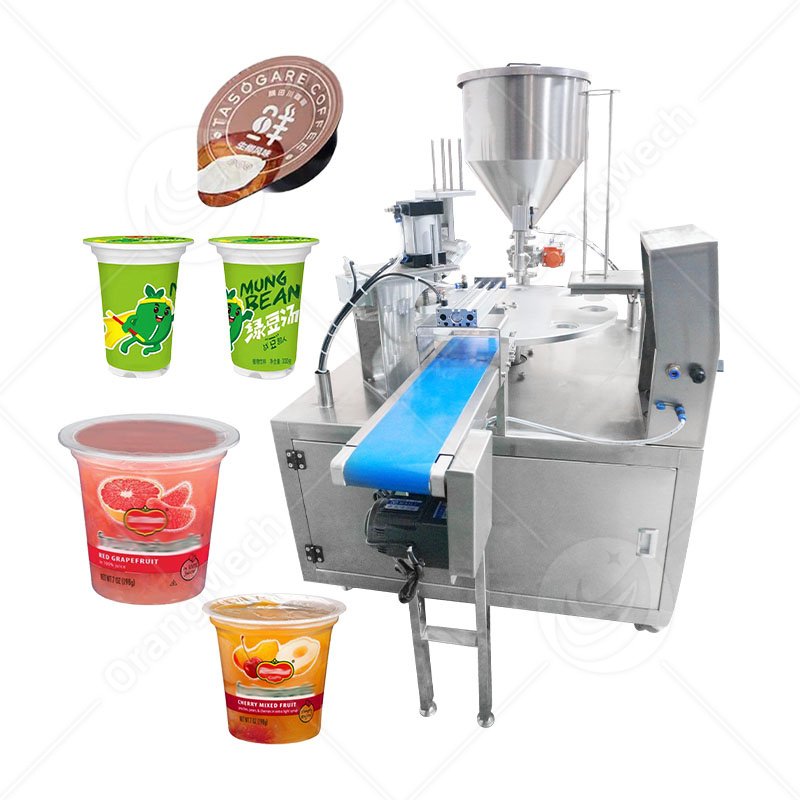

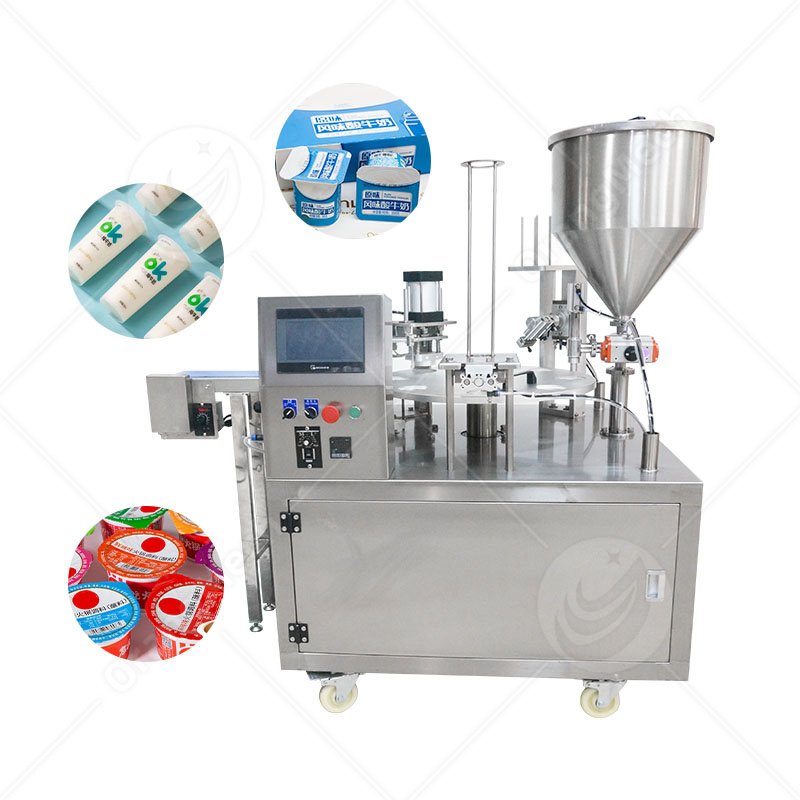

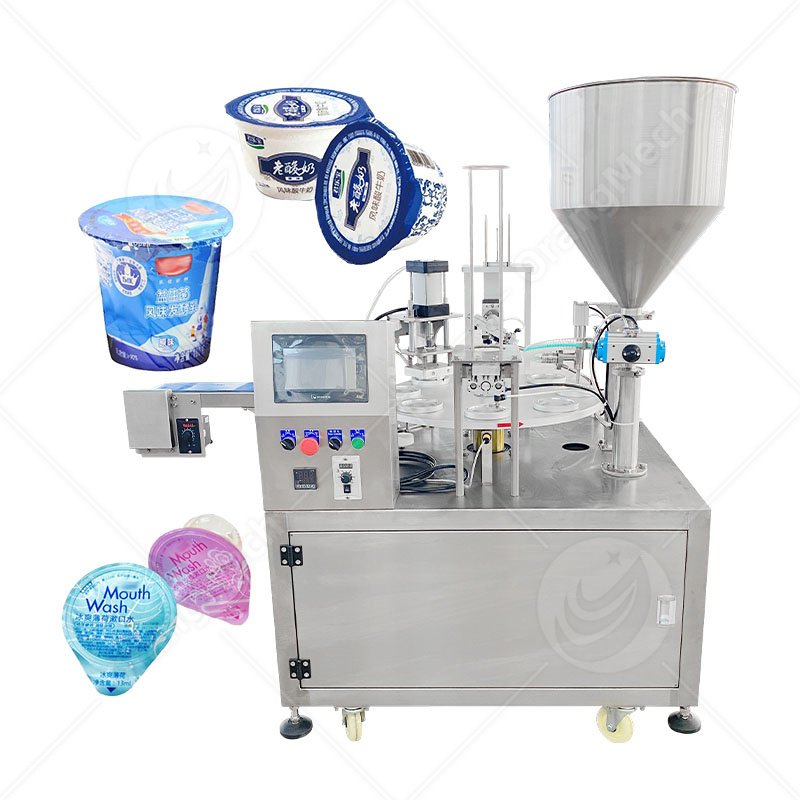

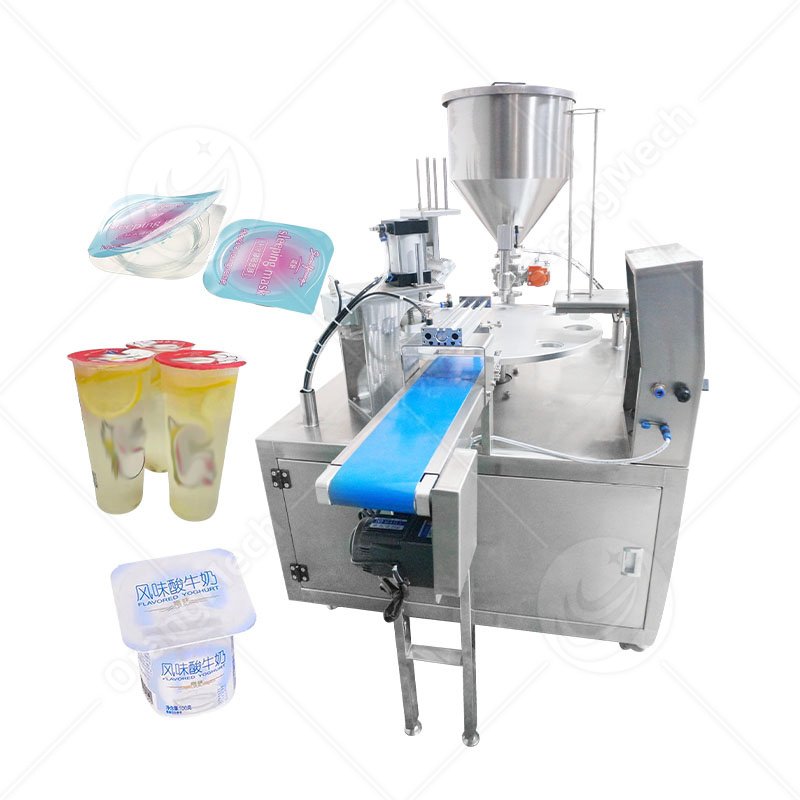

Do you want to speed up the sealed rotating cup filling machine to achieve efficient filling? Take a look at OrangeMech!
Product advantages
Accurate filling measurement
The rotating mechanism adopts servo control filling, which can control speed adjustment and realize continuous operation, and can meet the demand of large capacity and ensure smooth production.
Hygienic and Easy to Clean
Yogurt filling machine is made of food-grade 304 stainless steel, which is safe and easy to clean, and can also be made of customized 316 stainless steel.
Compact Structure
Disc design and compact body can be easily placed in processing places with little workshop space, saving workshop space.
Various Applications
Not only yogurt, but also cheese, milkshake, milk, juice and semi-fluid products can be used for accurate filling and sealing.
Low maintenance costs
The system controls the operation of the whole machine, the material is easy to clean, continuous production can be realized, and the daily maintenance cost is low, just do the daily cleaning.
Product parameter
| Model | CGF 18-18-6 | CGF 24-24-8 | CGF 32-32-10 | CGF 40-40-12 | CGF 50-50-15 | CGF 60-60-15 | CGF 72-72-18 |
| Production Capacity (500ml b/h) | 6000-8000 | 10000-12000 | 12000-15000 | 18000-22000 | 22000-25000 | 25000-28000 | 28000-30000 |
| Washing heads | 18 | 24 | 32 | 40 | 50 | 60 | 72 |
| Filling heads | 18 | 24 | 32 | 40 | 50 | 60 | 72 |
| Capping heads | 6 | 8 | 10 | 12 | 15 | 15 | 18 |
| Suitable Bottles | PET Round or Square | ||||||
| Bottle Diameter(mm) | 50-90 | ||||||
| Bottle height(mm) | 150-340 | ||||||
| Compressed Air Pressure(Mpa) | 0.3-0.7 | ||||||
| Washing Medium | Aseptic Water | ||||||
| Washing water pressure(Mpa) | 0.25 | ||||||
| Power(Kw) | 3.5 | 4.5 | 6 | 7.5 | 9.5 | 11.2 | 15 |
| Overall sizes (cm) | 260*190*255 | 310*230*280 | 380*280*290 | 460×280×290 | 545×330×290 | 620×450×230 | 650×480×285 |
| Weight(kg) | 3500 | 4500 | 5600 | 8500 | 9800 | 12800 | 15000 |

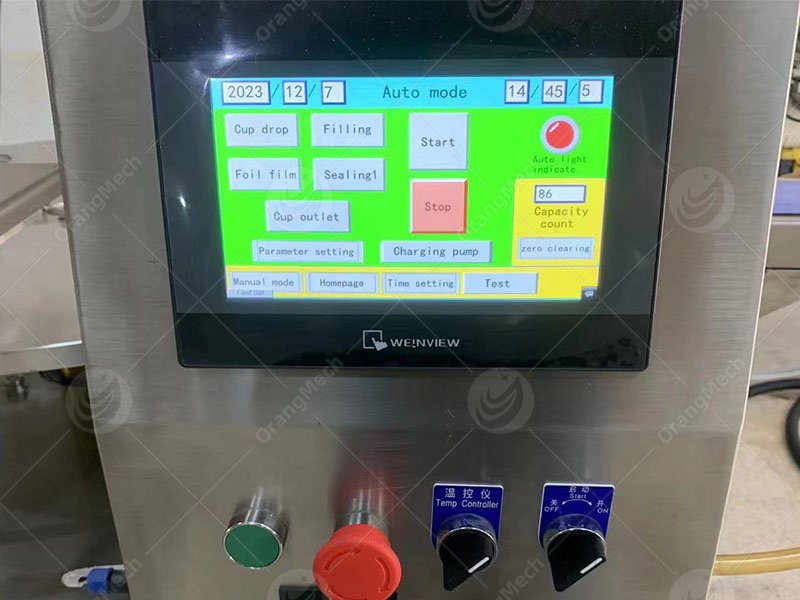

Bilingual interface in Chinese & English
OrangeMech’s cup filling machine Supports custom languages. One-button start makes operation simple, fast, and efficient.

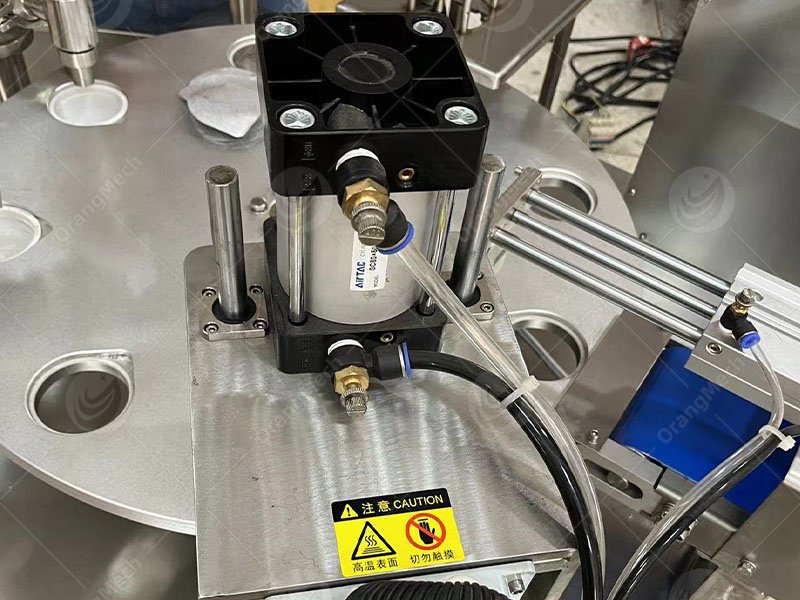

High-Quality Cylinder
Rotary Type Cup Filling machine pneumatic drive makes the filling impact more stable and the filling more rapid and accurate.
Neat Circuit Board
The high-precision circuit board ensures more stable and accurate machine operation.

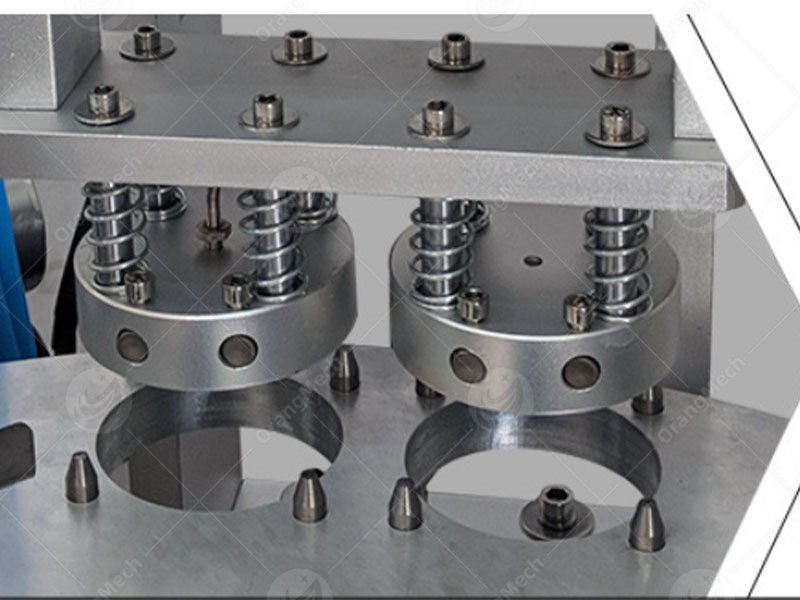

Heating Plate
Yogurt filling machine adopts high-quality core heating plate, which can heat evenly and resist high temperature without deformation.

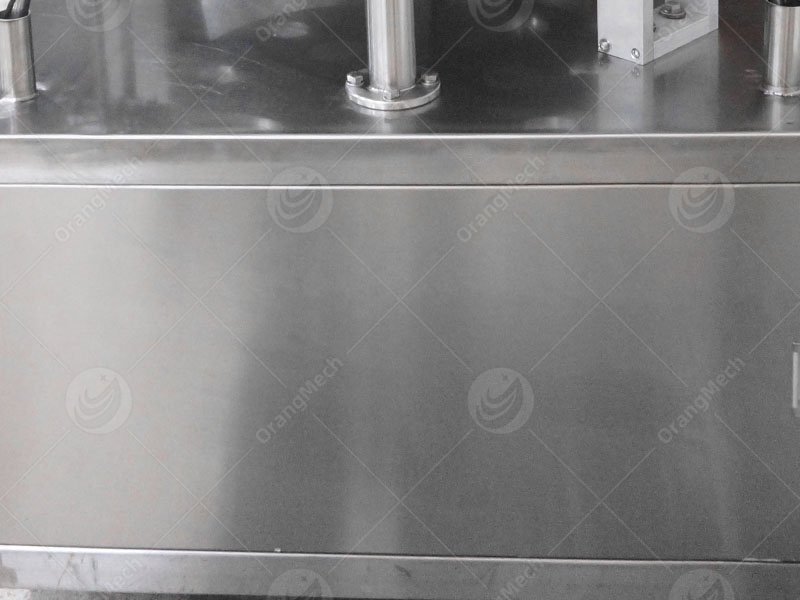

Stainless Steel Body
Cup filling machine is made of 304 stainless steel, which is corrosion-proof. Blunt corners to prevent cuts.
Air Pressure Instrument
Pneumatic instruments and equipment Automatic air pressure control and water filtration can be realized.

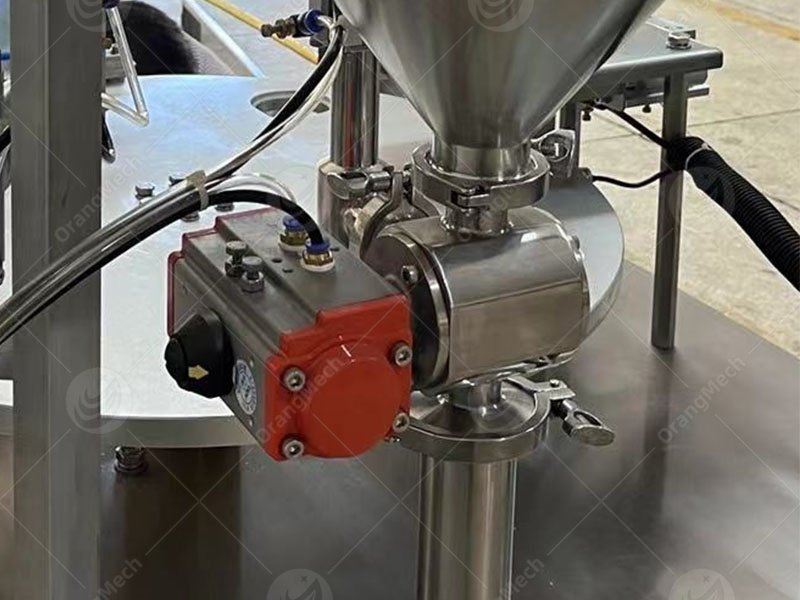

High Filling Accuracy
The filling quantity can be adjusted freely, the quantification is accurate, the filling precision is high, and there is no dripping.
Product application
◉ Dairy Product Factories: Suitable for both thick and thin dairy products that require automatic filling and sealing into cups, ensuring accurate filling, tight sealing, and high production volume.
◉ Beverage Manufacturers: Ideal for creative cup-packaged beverages, including milkshakes, functional drinks, and mousse-based drinks, allowing for seamless filling.
◉ Food Processing Production Lines: Applicable to ingredients requiring filling, such as jellies and other gel-based snacks, as well as desserts like cream, milk foam, and puddings.
