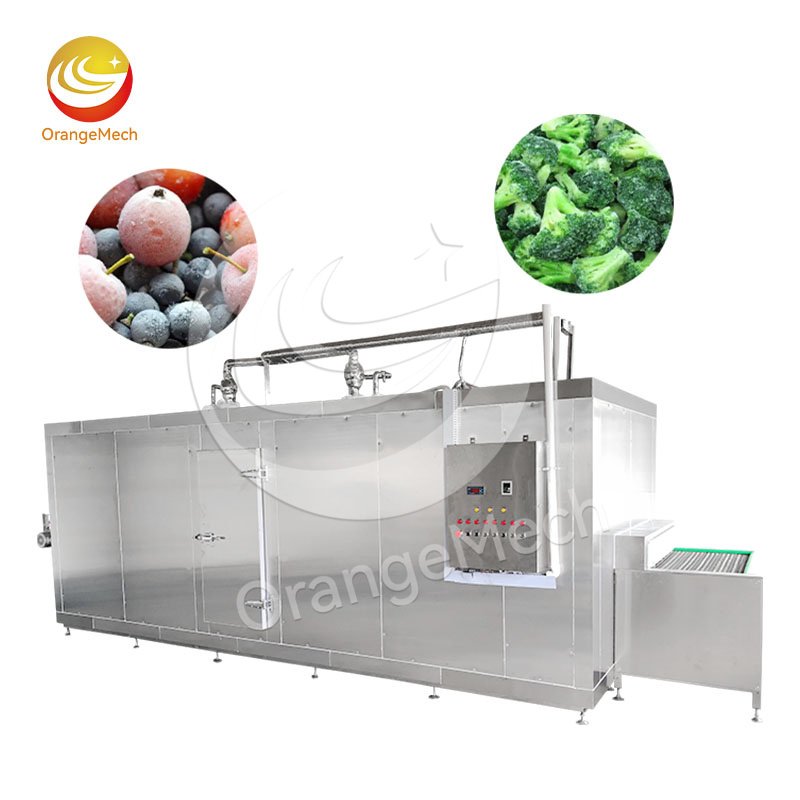

OrangeMech Tunnel Freezer: Highly Efficient Freshness Preservation, Empowering All Food Processing Scenarios.
Product advantages
Safe and reliable
Orange Mech fully considers the use safety, and the access door is designed with two-way door lock to prevent people from being locked by mistake. All rotating parts are equipped with safety protection, and the equipment is equipped with multiple safety protection devices to ensure production safety.
Intelligent control
Fast freeze machine adopts integrated touch screen design, which integrates all control functions on one screen to realize “one screen controls the whole situation”. Operators can easily adjust parameters such as freezing time and temperature, which greatly simplifies the operation process and reduces the technical requirements for operators.
Simple maintenance
The frame of the whole machine is made of SUS304 stainless steel, with smooth surface, easy cleaning and strong corrosion resistance. The mesh belt transmission system is woven with high-strength stainless steel wire, and the mechanical failure rate is low. The equipment is equipped with special access doors and cleaning channels, which makes daily maintenance and cleaning more convenient.
Wide application
Quick freeze machine provides two refrigeration modes: air cooling and evaporative cooling, which can be selected according to the climatic conditions of the customer’s location. The inlet and outlet adopt adjustable silica gel wind shield to meet the processing requirements of products with different heights, and there is no need to adjust the equipment settings frequently.
High efficiency and energy saving
Our tunnel freezer adopts optimized refrigeration system and high-efficiency fan design, and the cold consumption is controlled within a reasonable range. Compared with the traditional freezing method, the freezing time is shortened to 15-40 minutes, and the production efficiency is significantly improved. This kind of instant quick freeze equipment can not only ensure the quality, but also save a lot of time and energy costs for enterprises.
Product parameter
| Parameter | SSD-100 | SSD-200 | SSD-300 | SSD-500 |
| Freezing Capacity | 100kg/h | 200kg/h | 300kg/h | 500kg/h |
| Freezing Time | 15-40min adjustable | 15-30min adjustable | 15-40min adjustable | 15-40min adjustable |
| Freezing Temperature | -35℃ | -45℃ | -35℃ | -35℃ |
| Cooling Capacity | 20kw | 40kw | 40kw | 76kw |
| Dimensions(mm) | 7000×2300×2200 | 9600×2600×2500 | 12600×2600×2500 | 13700×3100×2500 |

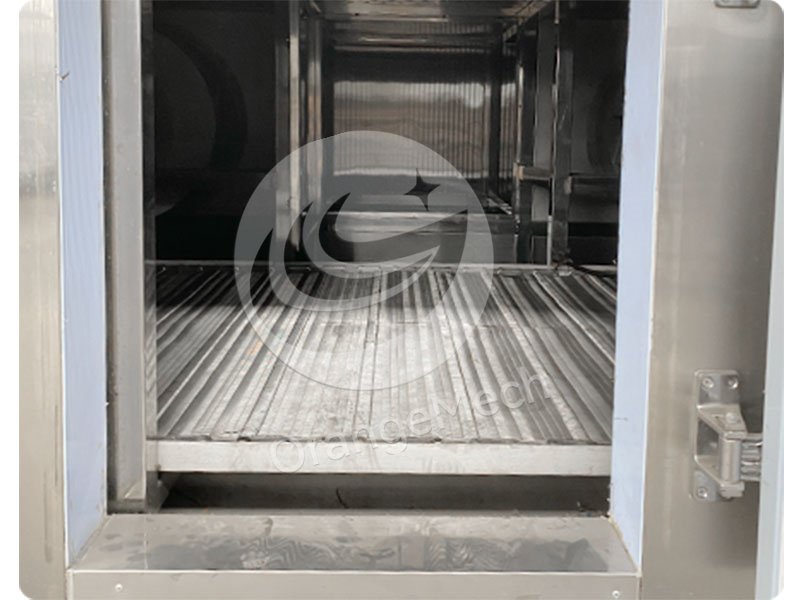

Long-lasting Insulation
Constructed from double-sided stainless steel plates, the inlet and outlet are equipped with silicone wind baffles. Compared to traditional stainless steel baffles, the smaller gaps effectively prevent cold air loss, reduce energy consumption, and provide excellent insulation performance.

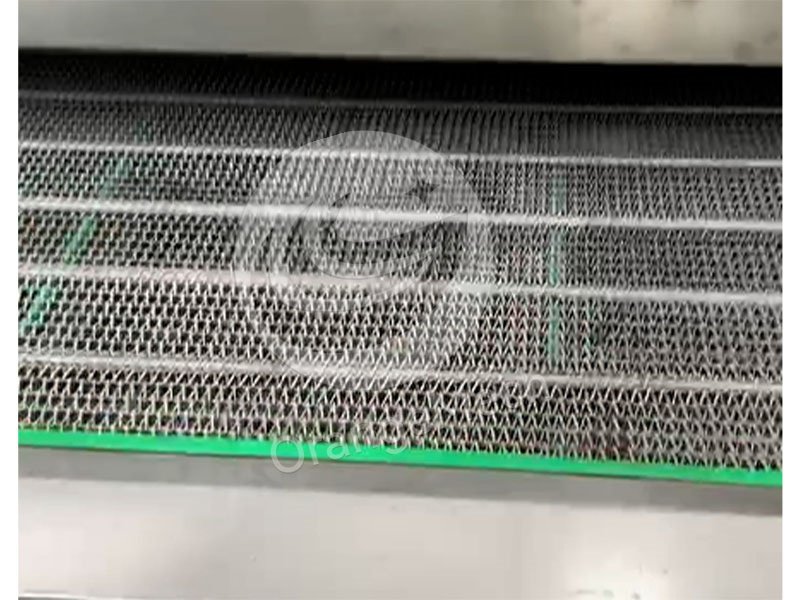

Conveyor Belt
Utilizing a mesh belt chain drive system, the mesh wires are made of high-strength stainless steel, offering wear and corrosion resistance; coupled with a heat-dissipating motor, active cooling by a fan reduces motor heat loss and ensures food hygiene requirements are met.

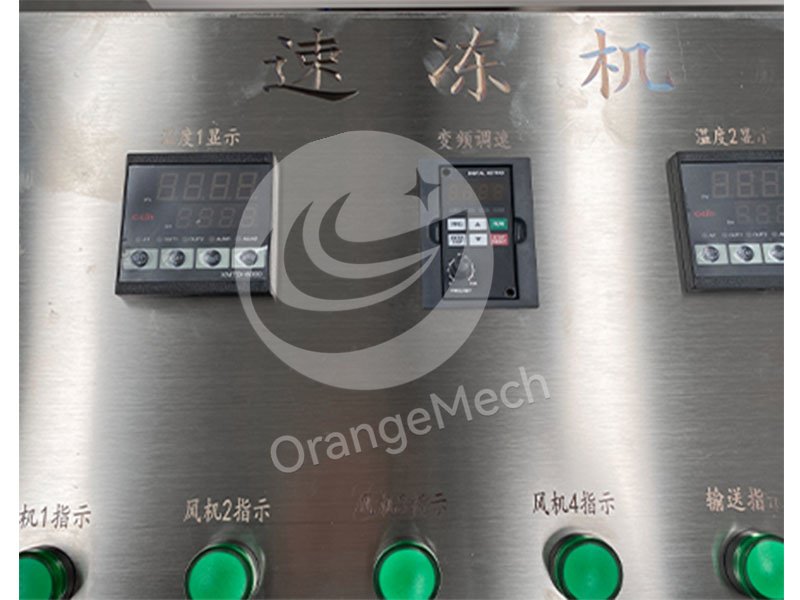

Intelligent Control System
OrangeMech’s quick freeze machine is easy to operate, stable in operation, and highly automated, requiring only one operator, thus saving labor costs.

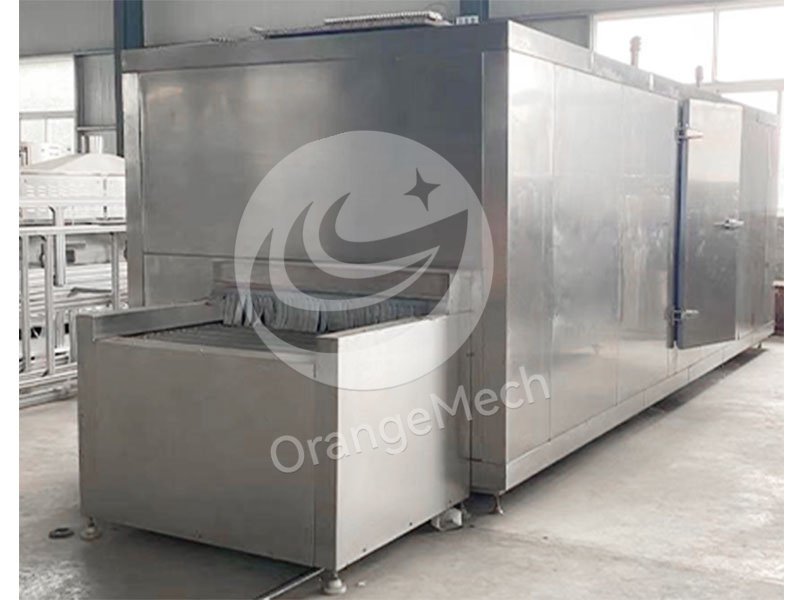

High Freezing Efficiency
The instant quick freeze equipment is equipped with two sets of high-efficiency, low-noise axial fans, accelerating cold air circulation and ensuring sufficient contact between the low-temperature airflow and the materials, significantly improving heat exchange efficiency and guaranteeing freezing speed and uniformity.

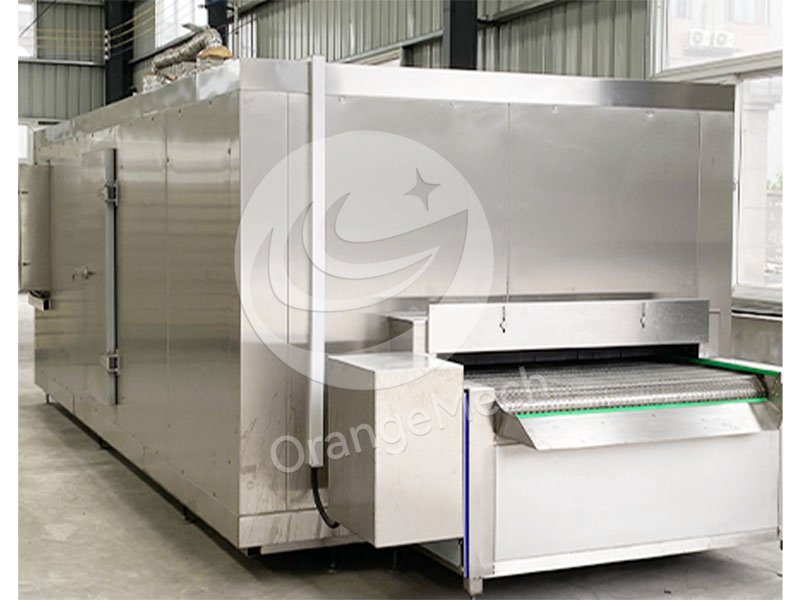

Stepless Speed Regulation
The fast freeze machine features an imported frequency converter, allowing for continuous adjustment of the freezing time according to needs. It also operates with low noise, creating a more comfortable production environment.
Product application
◉ Meat processing plants：Orange Mech’s quick freezing machine is suitable for quick freezing of fresh meat, meatballs, kebabs and other kinds of meat and meat products. Rapid freezing can lock the moisture and fresh taste of meat, avoid firewood and water after thawing, extend the shelf life of products, help enterprises expand production capacity and enhance product competitiveness.
◉ Fruit and vegetable processing plants：Orange Mech’s quick freezing machine can treat strawberries, blueberries, broccoli and other fruits and vegetables. Quick freezing can preserve the vitamins, minerals and natural colors of fruits and vegetables to the maximum extent, prevent nutrient loss and soft deterioration during freezing, and meet the market demand for high-quality frozen fruits and vegetables.
◉ Seafood and aquatic products processing plants：Orange Mech’s quick freezing machine aims at seafood products such as sea cucumber, shrimp, fish, etc. Strong convection freezing technology can quickly break through the ice layer on the surface of seafood, realize uniform freezing, avoid the taste deterioration and nutrient loss caused by uneven freezing, inhibit the growth of bacteria, and ensure the freshness and safety of seafood products.
