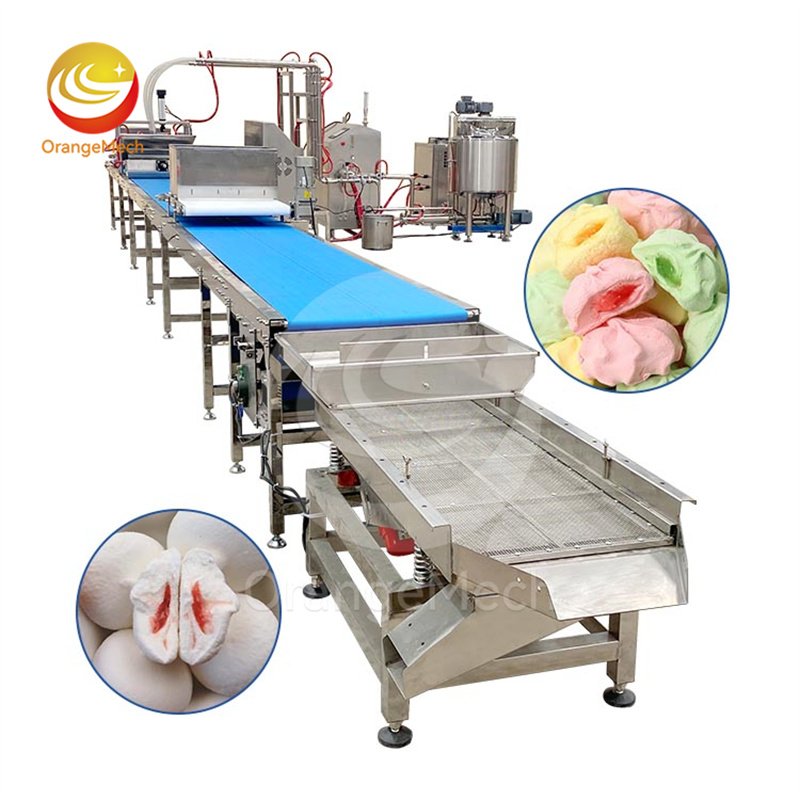

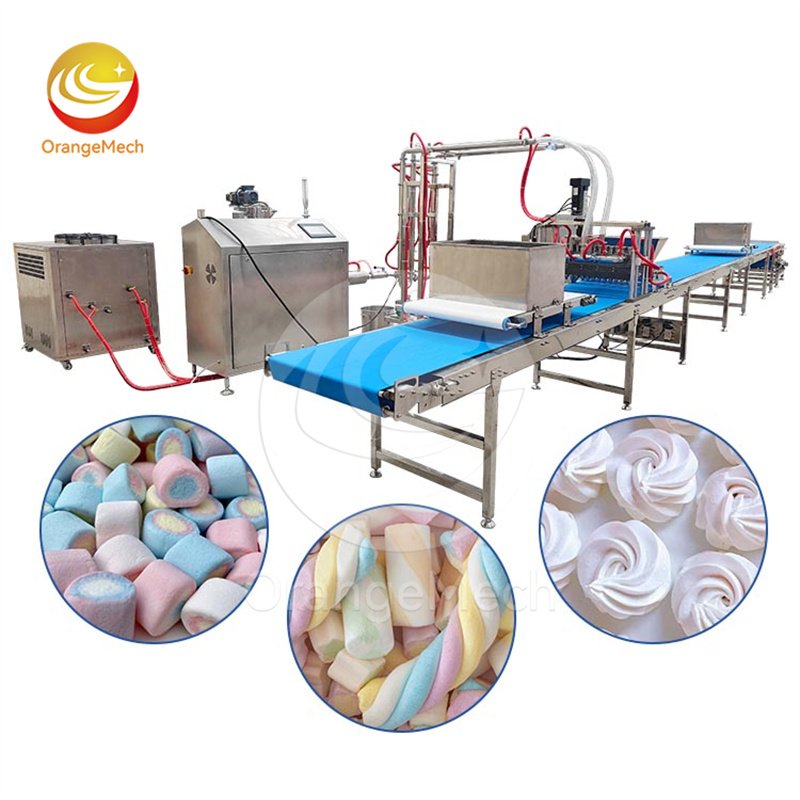

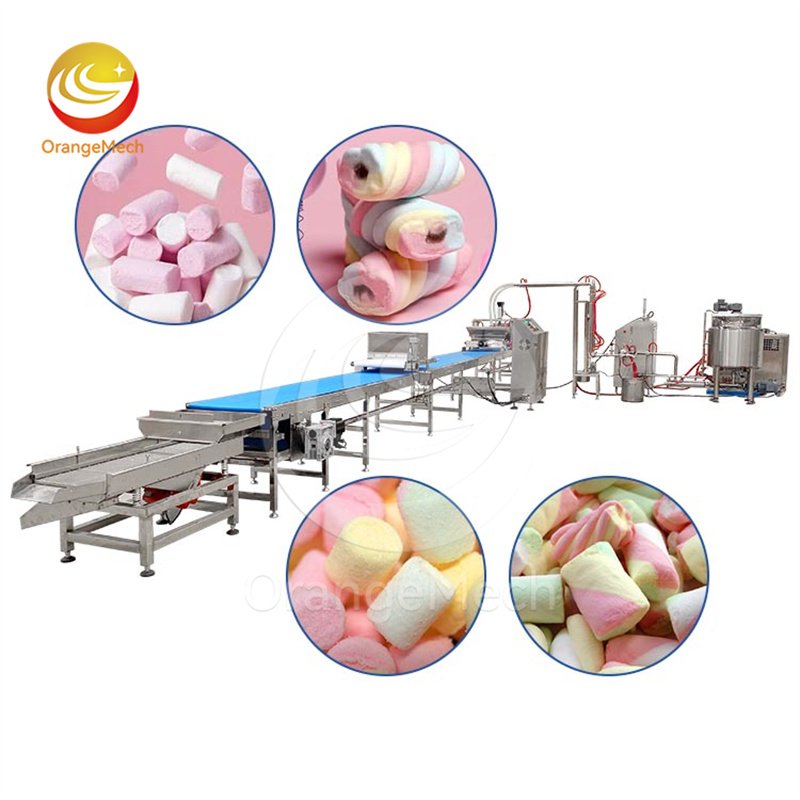

When marshmallows machine works, raw materials such as white sugar or complex carbohydrate are pretreated and melted by heating. The sugar solution after hot melting is shaped by high-speed centrifugal wire drawing, and the shaped wire drawing is carried out to fix the weight of cotton candy in the molding area and keep the size consistent. The formed cotton candy will be sprinkled with sugar powder to prevent adhesion, and then the sprinkled cotton candy needs to be screened off by a vibrating screen. Finally, the cotton candy with uniform quality enters the packaging system through the conveyor belt to realize automatic bagging and sealing.
Product advantages
Save labor
The whole marshmallow production process from melting raw materials to successful packaging is an automatic integrated working mode, which can reduce the excessive dependence of enterprises on labor and save costs, and is especially suitable for large-scale factories.
Uniform quality
Because marshmallow machine is an automatic control system, the parameters, weight, shape and taste of each batch can be kept highly consistent, and the specific style of its own brand can also be developed through special formulation.
Safety and hygiene
all the positions in contact with food are made of food-grade stainless steel, which not only ensures the core problem of food safety and hygiene, but also achieves the effect of convenient cleaning and corrosion resistance.
Customizable matching requirements
We can provide one-stop service for you according to your special needs such as capacity requirements and tastes, and help you design the machine you want to equip in the middle and lower reaches of marshmallow production, such as easily connecting the automatic marking machine coding system.
Product parameter
| Model | orangefoodmachine -150 | orangefoodmachine -300 | orangefoodmachine -450 | orangefoodmachine -600 |
| standard production volume(kg/hour) | 150 | 300 | 450 | 600 |
| The sugar levels | 2-6g | 2-6g | 2-6g | 2-6g |
| pouring rate | 45-55n/min | 45-55n/min | 45-55n/min | 45-55n/min |
| Steam demand | 0.2m³/min, | 0.2m³/min, | 0.2m³/min, | 0.2m³/min |
| 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | ,0.4-0.6Mpa | |
| Work environment requirements | Temperature:20-25℃ | Temperature:20-25℃ | Temperature:20-25℃ | Temperature:20-25℃ |
| humidity :55% | humidity :55% | humidity :55% | humidity :55% | |
| Total Power | 18kw/380V | 27kw/380V | 34kw/380V | 38kw/380V |
| Overall length | 15m | 17m | 17m | 20m |
| Overall weight | 3500kg | 4000kg | 4500kg | 5000kg |

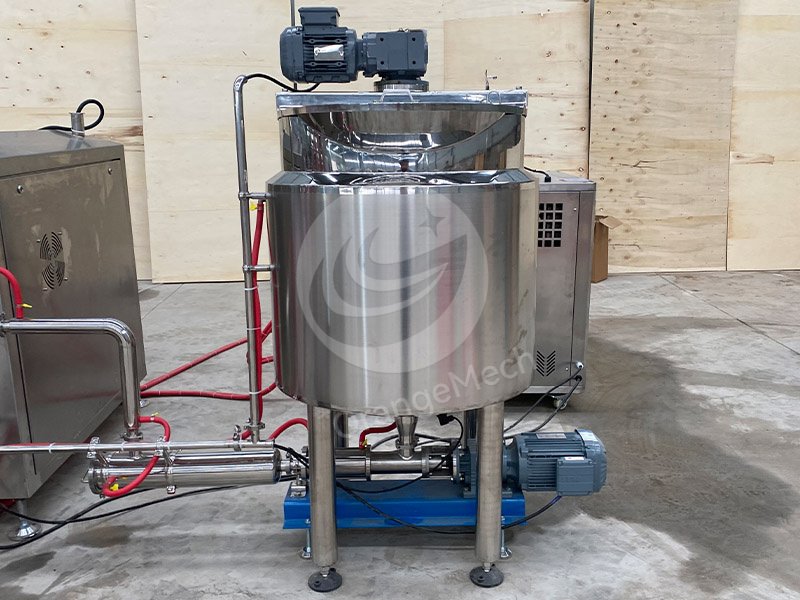

Mixing Tank
The mixing tank of marshmallow production is equipped with a stainless steel cover to prevent sundries from falling into the tank.

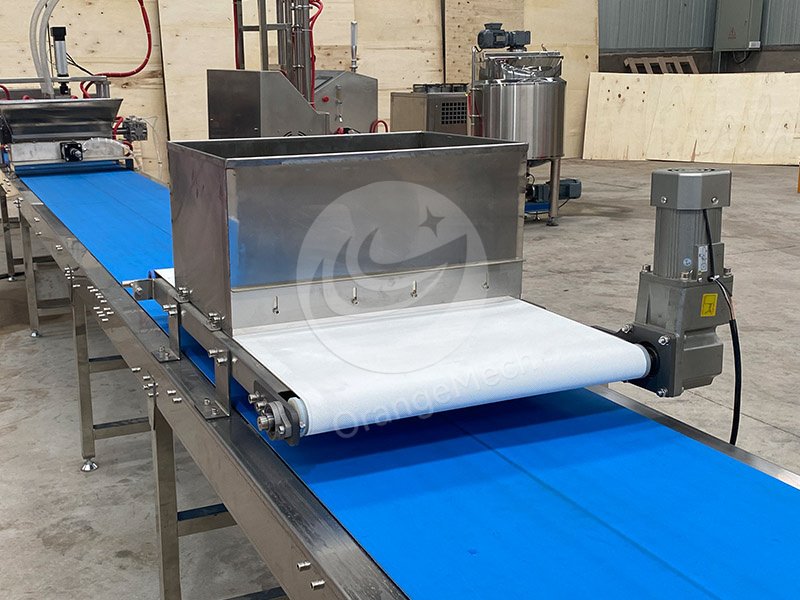

Conveyor belt
marshmallow production’s conveyor belt adopts servo motor, which is accurate, anti-sticking, durable and easy to clean.
Whipping cream machine
marshmallow machine’s whipping cream machine is equipped with cooling system and heat preservation system.
Vacuum device
The vacuum device of marshmallow production sprinkles flour before pouring sugar to prevent the sugar from sticking together before solidification.
Liquid injection device
The liquid injection device of marshmallows machine is controlled by servo motor, which has the characteristics of accurate liquid injection, low noise and high stability.

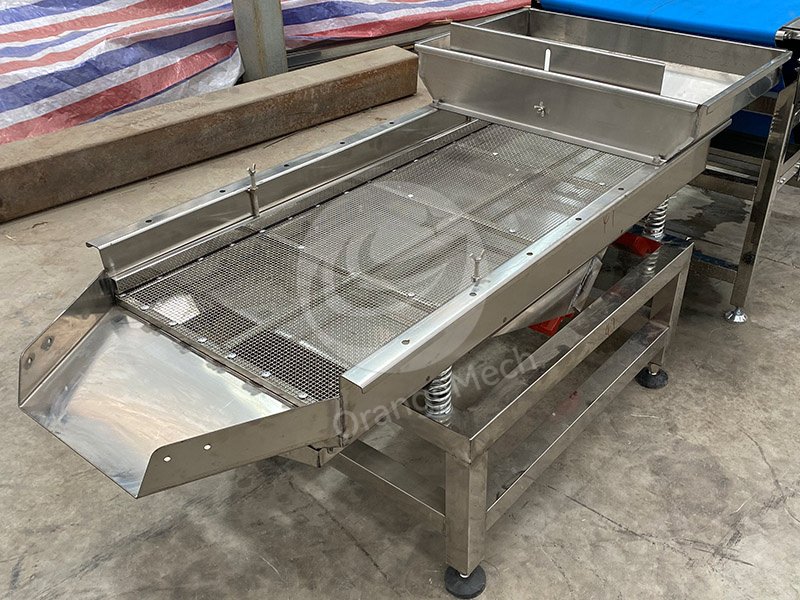

Vibrating screen
The vibrating screen of marshmallow production line is used to collect and filter the sugar powder on the outer layer of cotton candy to prevent adhesion.
Product application
Marshmallow machine is very suitable for enterprises that produce cotton on a large scale. Whether it is traditional cotton candy or grotesque or sandwich cotton candy that keeps up with the times, it can flexibly change the finished state of cotton candy just by changing the mold, and keep up with market changes to enhance market competitiveness. Perfect to help you increase sales, increase profits and develop brand awareness.
