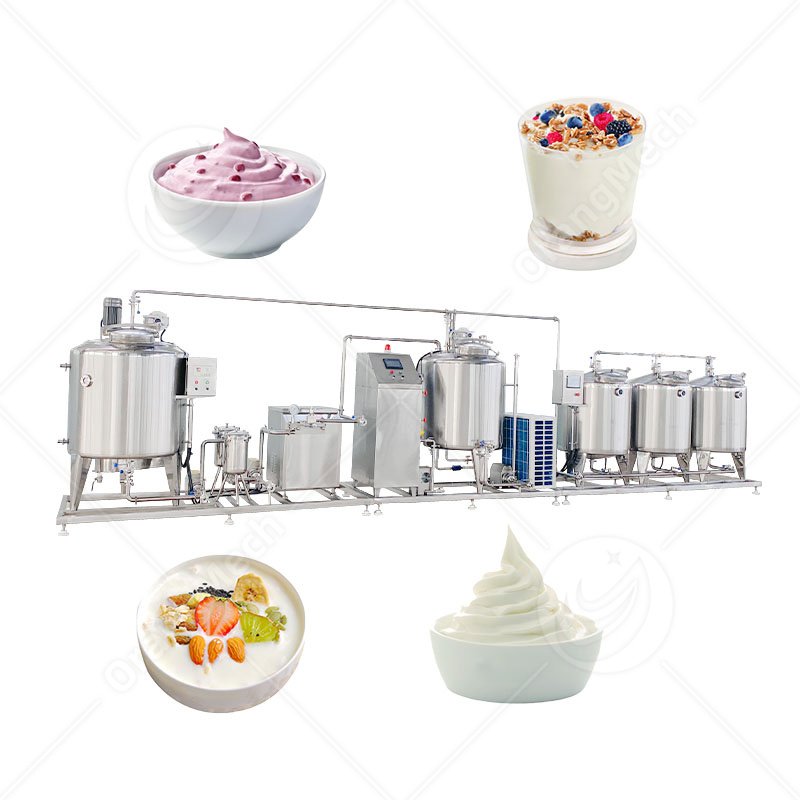

Whether your main raw material is fresh liquid milk or milk powder, the system can seamlessly meet your specific ingredient needs. This yogurt production equipment is definitely the main daily equipment for your dairy enterprise. You only need to input fresh liquid milk or milk powder, and the system will automatically complete the subsequent processing. According to your formula requirements, you can add your own fermentation strains, flavoring agents, or other additives. yogurt processing machine is actually based on the real customer workflow design; instead of using all templates with the same design, it can be flexibly adjusted according to your production process.
Product advantages
Low Operating Threshold
The PLC control panel can accept customized language; the operating parameters are accurately controlled, and the numbers are clearly visible. Even if you have no experience in machine operation, we have a clear and concise operation video, and after a short training, you can independently operate the whole yogurt manufacturing equipment, which reduces labor costs.
High Productivity
Orange Mech’s yogurt processing machine supports an actual daily output of 100 to 1000 liters per day, which is specially designed to meet the growing demand for yogurt in factories, and is very suitable for small-batch dairy farming or processing factories to gradually upgrade to effective equipment for commercial scale.
Hygienic Food-grade Structure
Each contact part of the yogurt manufacturing equipment is made of 304 stainless steel, which fully meets global food safety standards, is safe to use, durable, corrosion-resistant, and easy to clean, and can also reduce the risk of batch pollution. It is very important for factories that need to be processed under strict hygiene standards.
Save Space
The yogurt production line has a standard size of 8550*1100*2200mm, which is specially designed to adapt to the standard production workshop, and there is no need to greatly modify the layout. If you don’t know whether you can put it in your workshop, you can send us your workshop layout, and our technical manager will draw a customized solution for you. You don’t need to worry.
Reliable Core Components
The equipment uses reliable motor and pump components as the core, and its main function is to realize continuous processing without stopping, with a stable and continuous automation design. The purpose is to avoid frequent maintenance of the machine during processing.
Warranty Support Backed by Warranty
Every yogurt processing machine produced by OrangeMech comes with a mechanical test report, factory inspection video, and a one-year full warranty. If you are still comparing other machines, you need to pay special attention to the importance of quality assurance and various high-quality certifications of machines, which must be transparent.
Strong Applicability of Raw Materials
Not only is the raw material fresh milk, but ordinary milk powder can also be processed into yogurt. This commercial yogurt-making machine is equipped with an integrated high-shear stirring function, which can not only stir milk but also evenly mix powdered milk powder, effectively avoiding caking and ensuring the same taste in each batch.
Product parameter
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Key Selling Points | High Productivity |
| Core Components | Motor, Pump |
| Video Outgoing-Inspection | Provided |
| Place of Origin | China |
| Brand Name | OrangeMech |
| Voltage | 380V 50HZ 3Phase or Customized |
| Dimension (L*W*H) | 8550*1100*2200MM |
| Raw Material | Fresh Liquid Milk |
| Final Product | Yogurt |
| Material | Stainless Steel 304 |
| Capacity | 100–1000L/Day |
Control Panel
The control panel displays the water temperature and milk temperature in real time and provides adjustable settings for each stage. The real-time display of water and milk temperatures enables operators to quickly adjust the process parameters of the yogurt production equipment.
Breather Valve
Bidirectional release of internal tank pressure (unidirectional discharge) to prevent pollutants from the external air from entering the milk processing line. It is a key component for protecting the integrity of the product during the production process.
Liquid Level Indicator
The liquid level indicator enables you to easily monitor the water level in the interlayer without having to open the water tank for inspection. It also allows you to observe and ensure that the heat conduction of the yogurt production equipment operates at its optimal level.
Heating Water Tank
Heating the water tank can quickly heat the water supply and maintain the circulating water at the precise target temperature, thereby supporting the smooth pasteurization process within the yogurt processing machine.
Agitator Motor
The main motor of the mixer in OrangeMech’s yogurt manufacturing equipment is used to process fresh milk, achieving continuous and gentle mixing. This ensures that the mixture in the entire batch is uniform and consistent.
High-Shear Motor
Working in synergy with the agitator motor, when the raw material is milk powder, it can evenly mix the powder, break up the lumps, and make the mixture more uniform.
Diesel Engine Oil Level Indicator
The liquid level indicator enables you to visually observe the position where the oil level reaches. There is no need to guess based on intuition. The liquid level window can easily confirm that the oil level has reached the middle red mark.
Pressure Adjustment Handles
The upper handle controls the high pressure, while the lower handle controls the low pressure, enabling the operator to precisely control the pressure during the cleaning and processing procedures.
PLC Control Panel
The PLC control panel features a bilingual interface (in both Chinese and English), allowing for the management of all parameters on this industrial frozen yogurt machine. This enables any operator to make adjustments quickly and intuitively.
Fermentation Timer Alarm
The fermentation timer issues an alarm when the fermentation time of the material ends, to alert the staff and prevent the fermentation time from being too long and affecting the taste.
Sight Glass
The window clearly shows the water level in the water tank. If you need to check the water supply situation, you just need to take a glance inside the window, and it will be very clear.
High-Pressure Spray Nozzle
The high-pressure nozzle can spray clean water at high speed into the interior of the tank. The high water pressure will thoroughly clean the interior of the yogurt processing machine. There is no need for manual scrubbing, which is time-consuming. What’s more, it can shorten the downtime between each operation.
Product application
◉ Dairy Processing Plant:
The yogurt production line solution is very suitable for professional dairy brand yogurt plants, which can achieve accurate temperature and mixing control and can be used to produce high-quality yogurt with uniform quality and stable batches with less manual operation.
◉ Beverage Processing Plant:
This yogurt-making machine commercial is very suitable for small and medium-sized beverage manufacturers. It occupies a small area and can easily introduce new flavors of yogurt or drinkable dairy products without completely transforming the whole factory.
◉ Cow Station:
It is convenient to process fresh milk on site. For local dairy farmers, directly using fresh raw materials to produce high value-added fermented products-yogurt, it will enhance a lot of profit margins, and it is not necessary to send fresh milk to a third-party processing factory.
FAQ
A: Both fresh milk and powdered milk are acceptable, and no additional equipment is needed. Our production line can handle both fresh liquid milk and milk powder. If you use milk powder, the system is equipped with a special high-shear mixer, which works together with the main mixer to completely dissolve the milk powder immediately and avoid caking. For standard small batch production, you don’t need to buy a dissolving tank separately.
Yes, it can be customized. The standard production capacity is 100 liters to 1000 liters per day. The voltage and some mechanical parameters can also be customized according to the power supply and production target of your factory. As the manufacturer, although our standard power supply is designed as 380V/50Hz/ three-phase, we will adjust the voltage, phase number, and frequency parameters according to the needs of your local power grid.
A: The production line is equipped with an intuitive bilingual PLC touch screen, which can automatically complete heating, mixing, and timing cycles. In addition, our equipment has a built-in standard CIP high-pressure spray ball, which can be cleaned quickly and thoroughly between batches. Most operators can run the whole system independently after 1-2 days of standard training.
