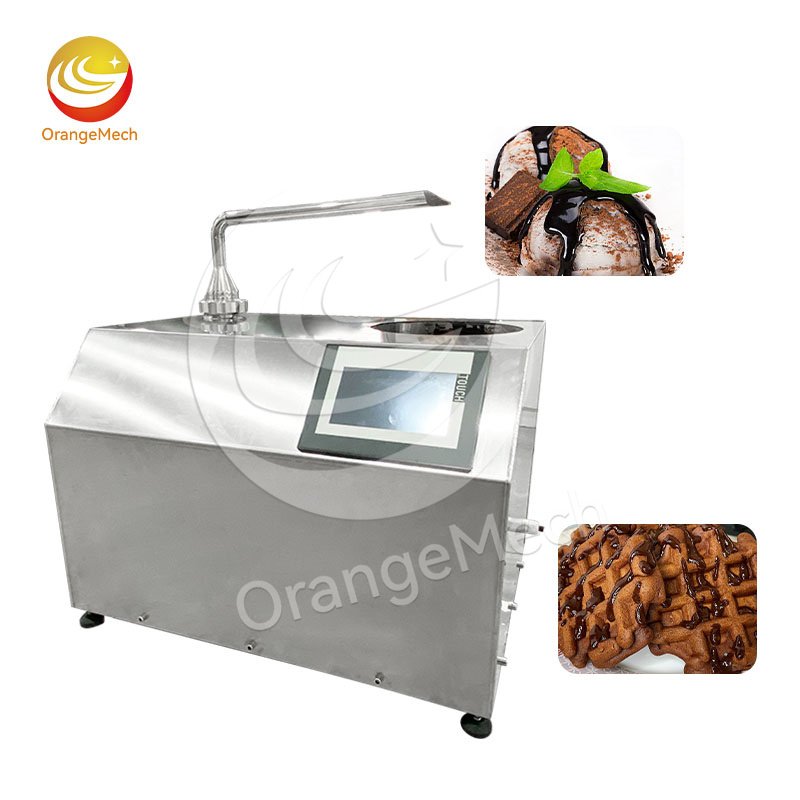

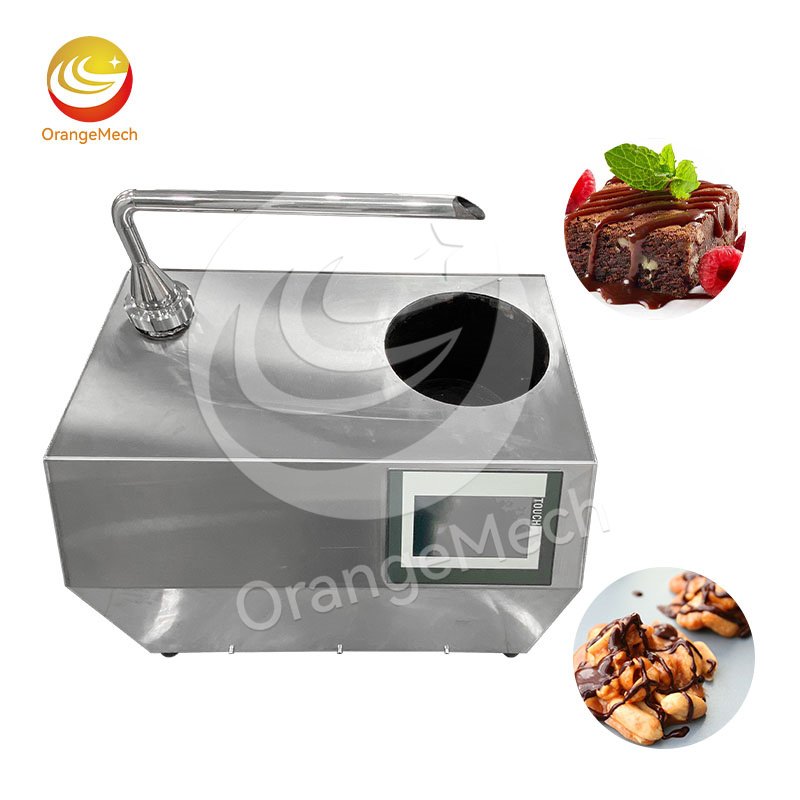

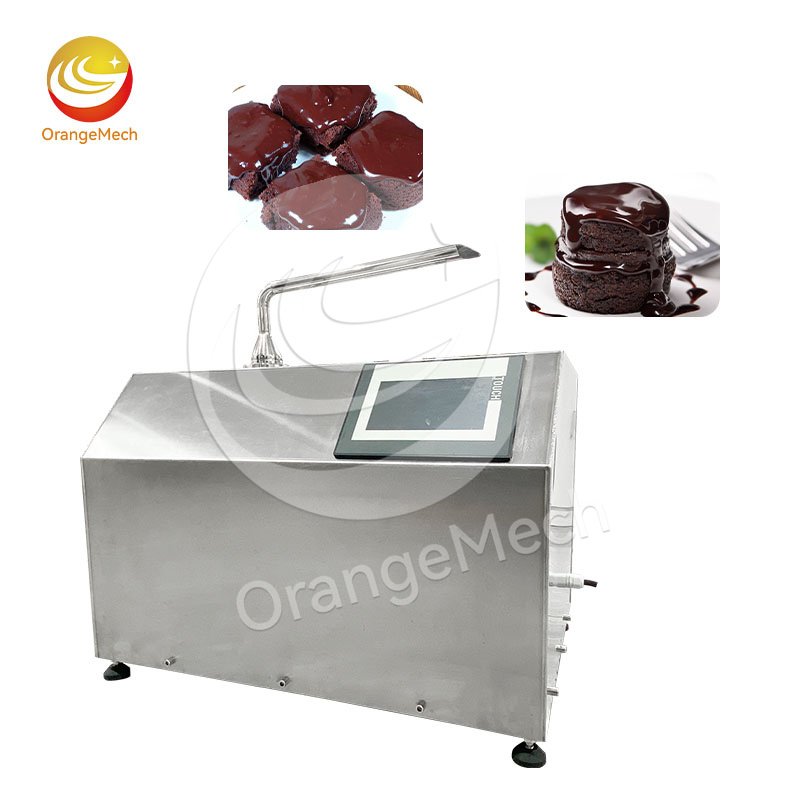

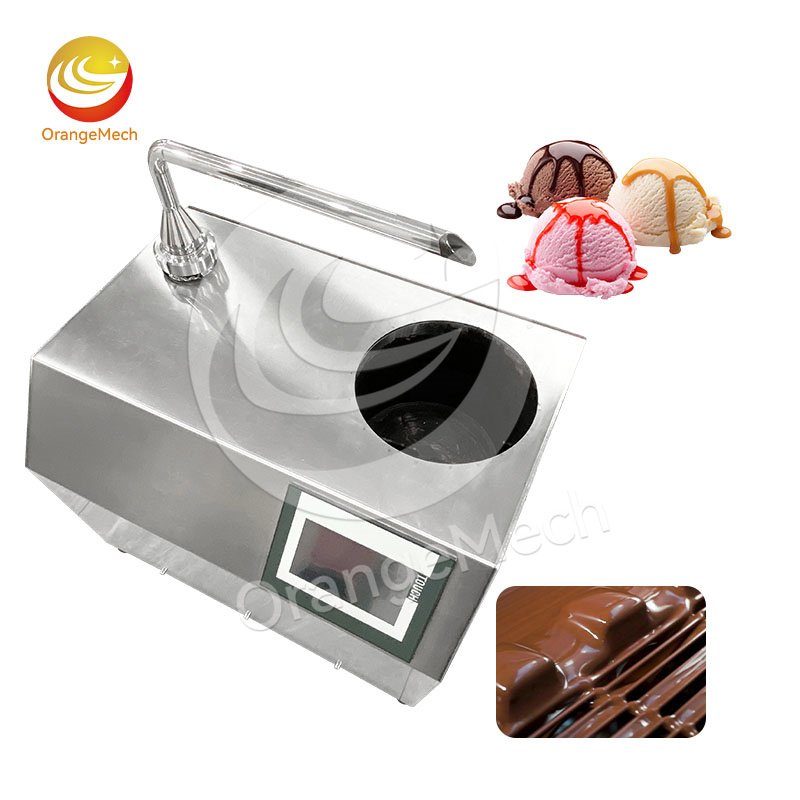

This equipment is essentially a high-performance chocolate dispenser machine, and its core consists of a storage tank, a circulation system, a control system and a shell. The solid chocolate in the storage tank is evenly heated and melted by the built-in heating belt, and the control system monitors and accurately adjusts the temperature and stirring speed in real time; The melted chocolate is sprayed on the surface of bread, fruit, ice cream and other foods through the discharge pipe, and the surplus raw materials are recycled back to the storage tank through the circulation system. At the same time, chocolate dispenser supports the night heat preservation mode to maintain the fluidity of chocolate for a long time and meet the production demand at any time.
Product advantages
Low energy consumption and high efficiency
Automatic chocolate dispenser is designed with only 1.23KW power, which has high melting efficiency and low energy consumption. Support long-term continuous and stable work, the internal circulation system reduces the waste of raw materials, helps you save time and hidden costs, and improves production efficiency and income.
Save labor costs
Intelligent touch color screen with bilingual interface makes the operation intuitive and easy to understand; The pedal controls the discharging and frees hands, which greatly reduces the manpower input compared with the traditional manual spraying.
Precise temperature control and stable quality
Chocolate dispenser has built-in temperature sensor, which can accurately set and monitor the discharge in real time; The long hole design of the discharge port of the storage tank filters unmelted large chocolate, ensuring uniform and delicate coating and improving product consistency.
Health is easy to maintain, compliance and worry-free
The contact part with food is made of food grade 304 stainless steel, which meets the food hygiene standards; Equipped with independent cleaning drain and cleaning mode, the sewage can be quickly drained after hot water cleaning, avoiding residual pollution and maintaining simply and conveniently.
Reliable performance and strong adaptability
The internal electronic control components of automatic chocolate dispenser are first-line brands such as Schneider and Delta, and cooperate with double cooling fans to ensure the long-term stable operation of the equipment. Compact structure, convenient installation, can adapt to production scenes of different scales, and also supports customized brand logo to meet individual needs.
Product parameter
| Voltage | AC220V/50Hz |
| Power | 1.23KW |
| Heating Method | Electric Heating (Heating Belt Conduction) |
| Capacity | 5.5L |
| Machine Weight | 64Kg |

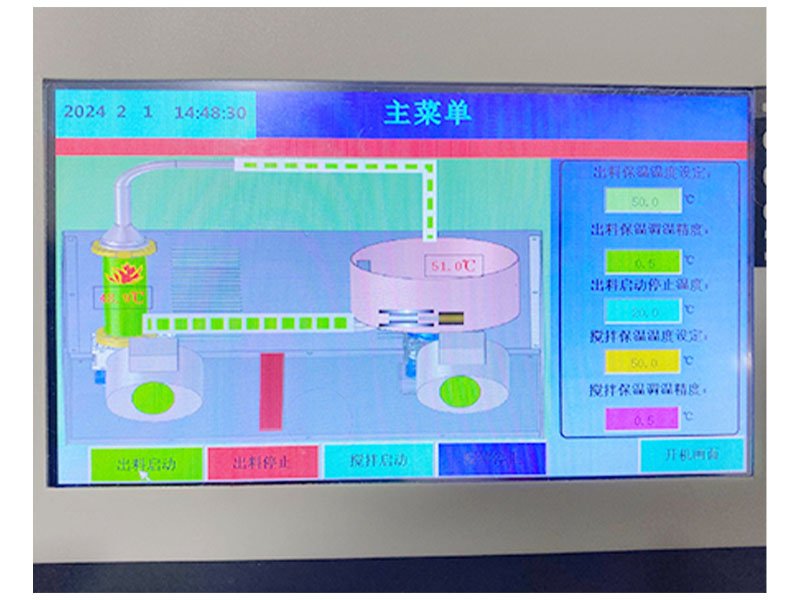

PLC control system
Through the touch screen, operators can easily set various key parameters to ensure the safe operation of the machine.
Spray
The discharge pipeline is covered with an aluminum foil insulation layer, which reduces heat loss, maintains the appropriate temperature of the chocolate, and ensures the stability of the spraying effect.

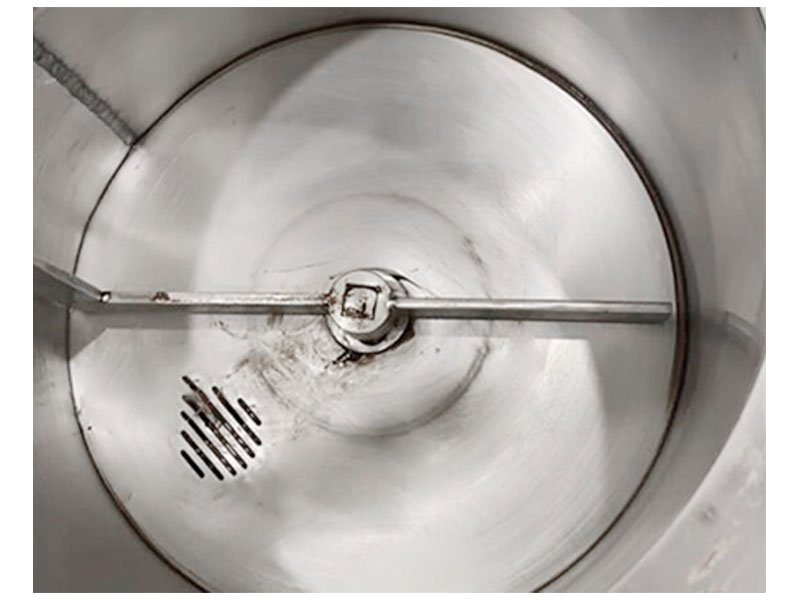

Stirring shaft
High-precision safety shaft design, with a heat-resistant and corrosion-resistant structure, allowing for easy adjustment of rotational speed, suitable for various chocolate raw materials of different years.

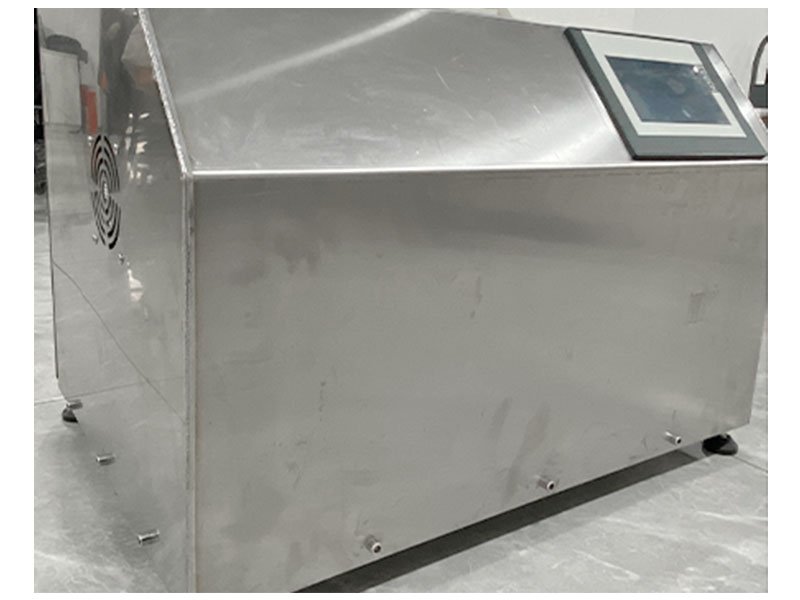

304 stainless steel
Food-grade stainless steel material for easy cleaning, without residue attachment, smooth surface, convenient for cleaning and maintenance, and can reduce bacterial growth.
Product application
◉ Bakery
Orange Mech’s chocolate dispenser machine is suitable for making chocolate noodles for bread products such as toast, puffs and croissants, or spraying fine chocolate coating on the surface of cakes to enhance the value and taste of desserts and attract more consumers.
◉ Tea shop
Spray chocolate on the cup walls of cheese milk tea and fruit tea, or make chocolate coating for tea breaks (such as mashed potatoes and taro balls) to enrich the collocation of tea and enhance product differentiation.
◉ Workshop and Chocolate House
Orange Mech’s chocolate dispenser machine supports customized language and pedal control, which is convenient and practical. It can create high-value chocolate coated products without professional technology, help small shops create special categories and attract repeat customers.
